Wall Sconce, Wall Cylinder Light
WP2029
By True LED USA

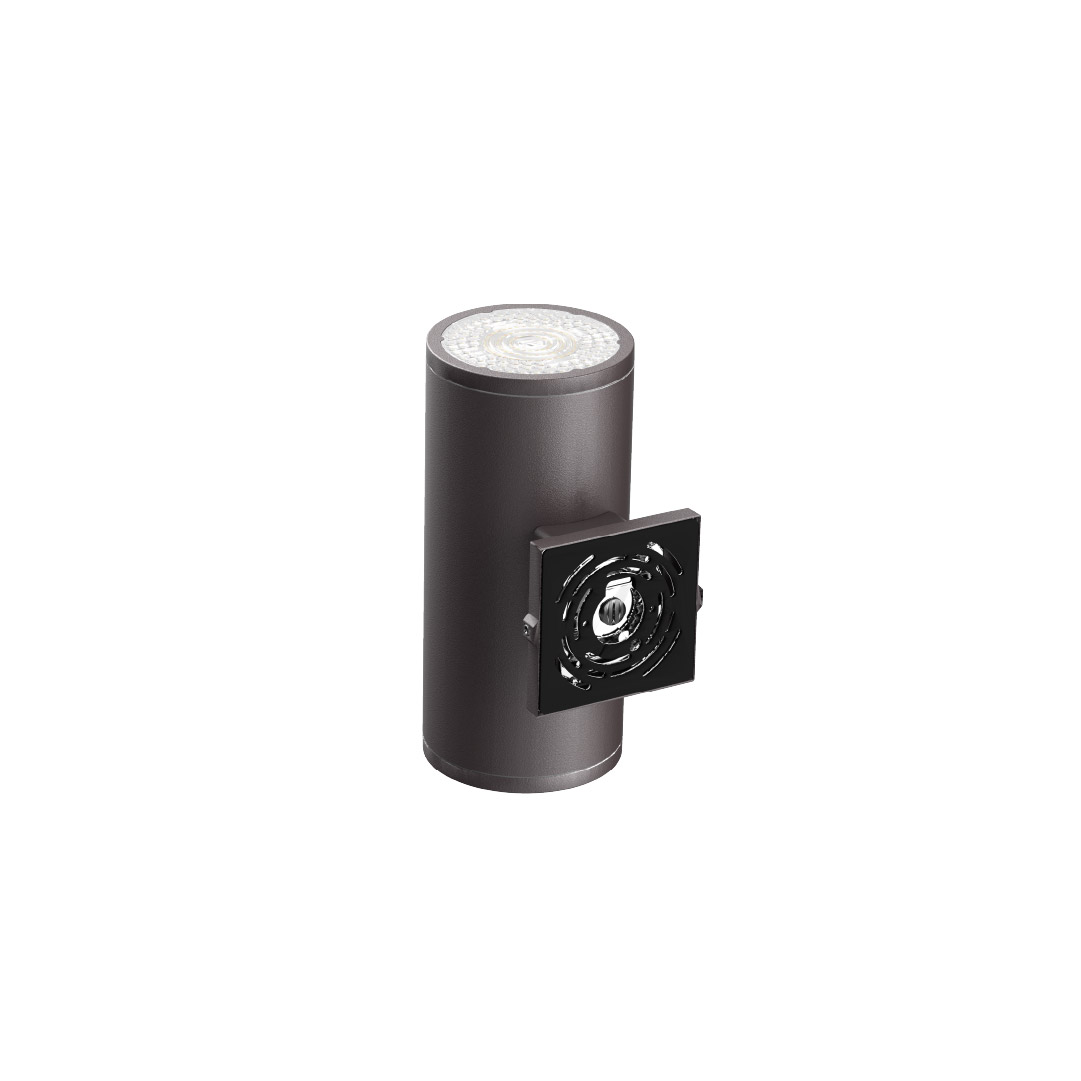

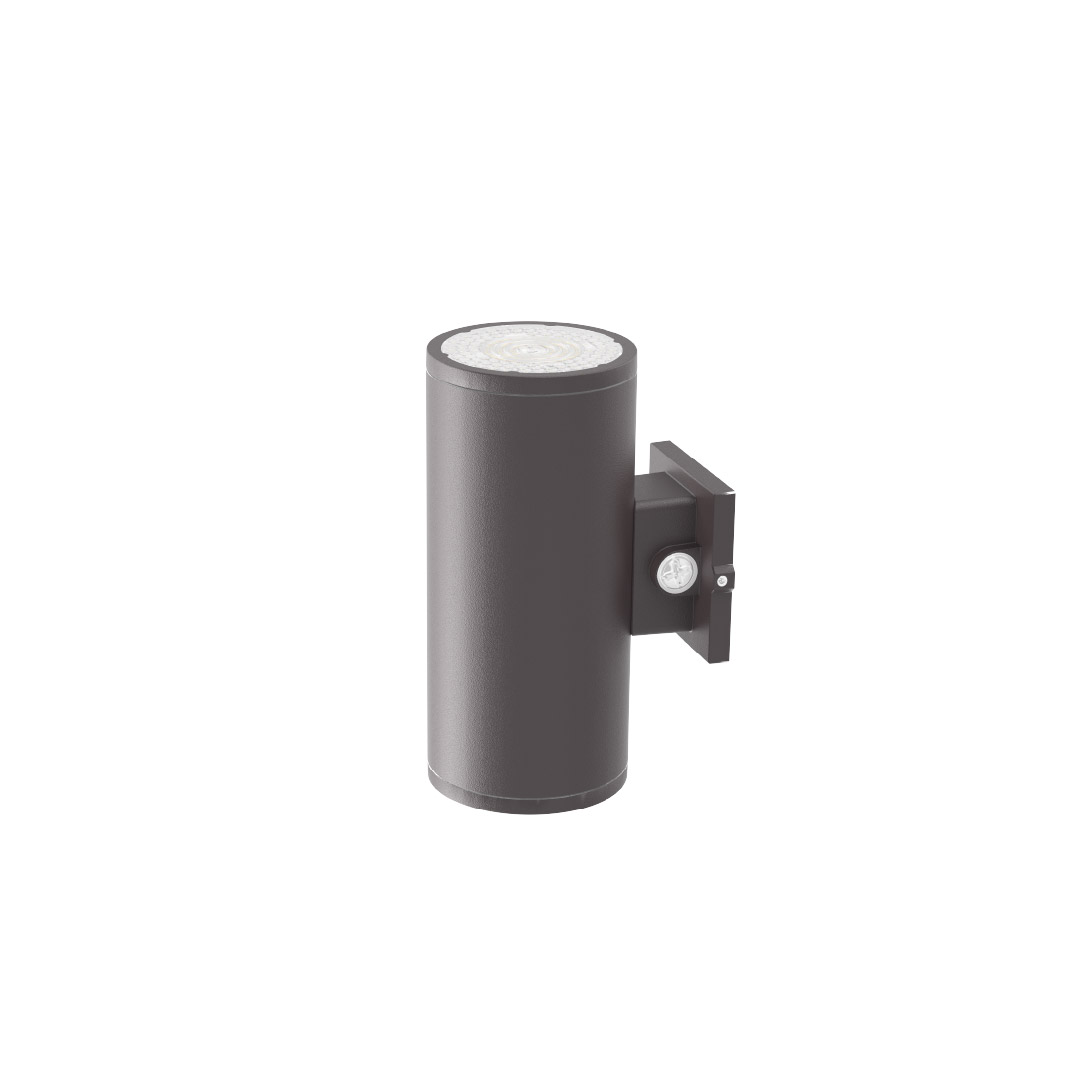

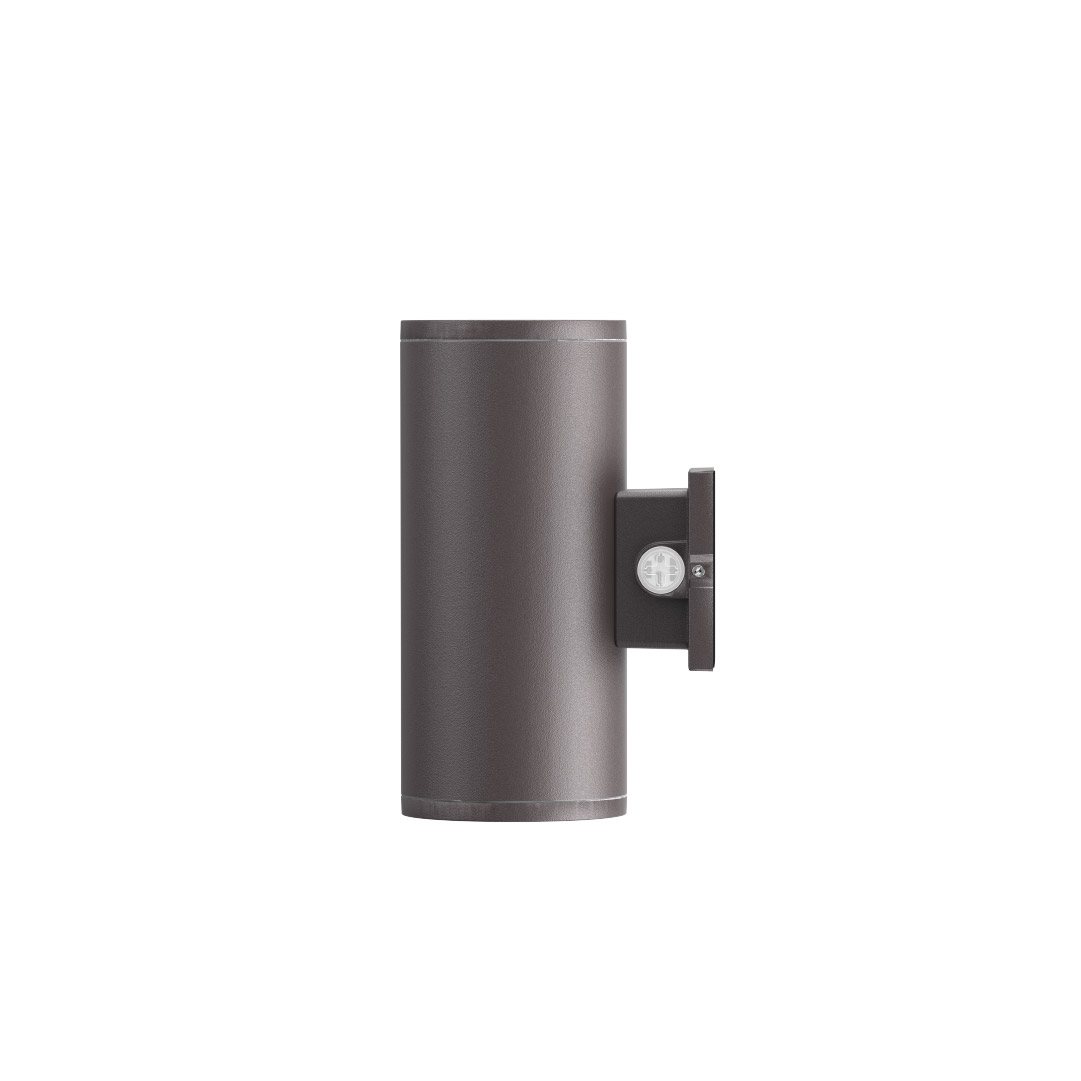

The WP2029 LED Wall Mount Cylinder is a versatile architectural wall luminaire featuring field-selectable wattage, CCT, beam angle, and lighting direction (up, down, or full). Designed with a durable die-cast aluminum housing and polycarbonate lens, it delivers high efficiency performance with IP65 wet-location rating. Integrated dusk-to-dawn photocell control ensures automatic operation for enhanced energy savings. Ideal for modern exterior applications requiring flexibility, durability, and clean aesthetics.
Wattage
3": 10W / 8W / 6W (Selectable)
4": 20W / 16W / 12W (Selectable)
6": 36W / 28W / 21W (Selectable)
Lumens
~5,500lm
Efficacy
~150lm/W
Color Temperature
3000K / 4000K / 5000K (Selectable)
CRI
80+
Input Voltage
120–347V
Operating Temp
−35°F to 113°F
IP Rating
IP65
Mounting Type
Wall mount
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
WP2029
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

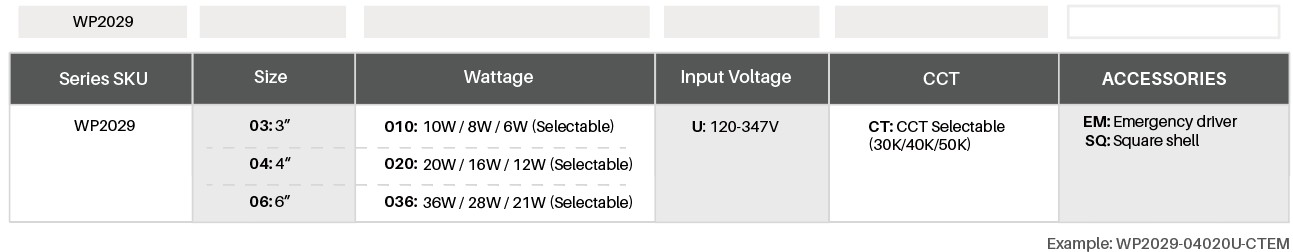

Ordering Information
