Wall Pack
WP2018
By True LED USA

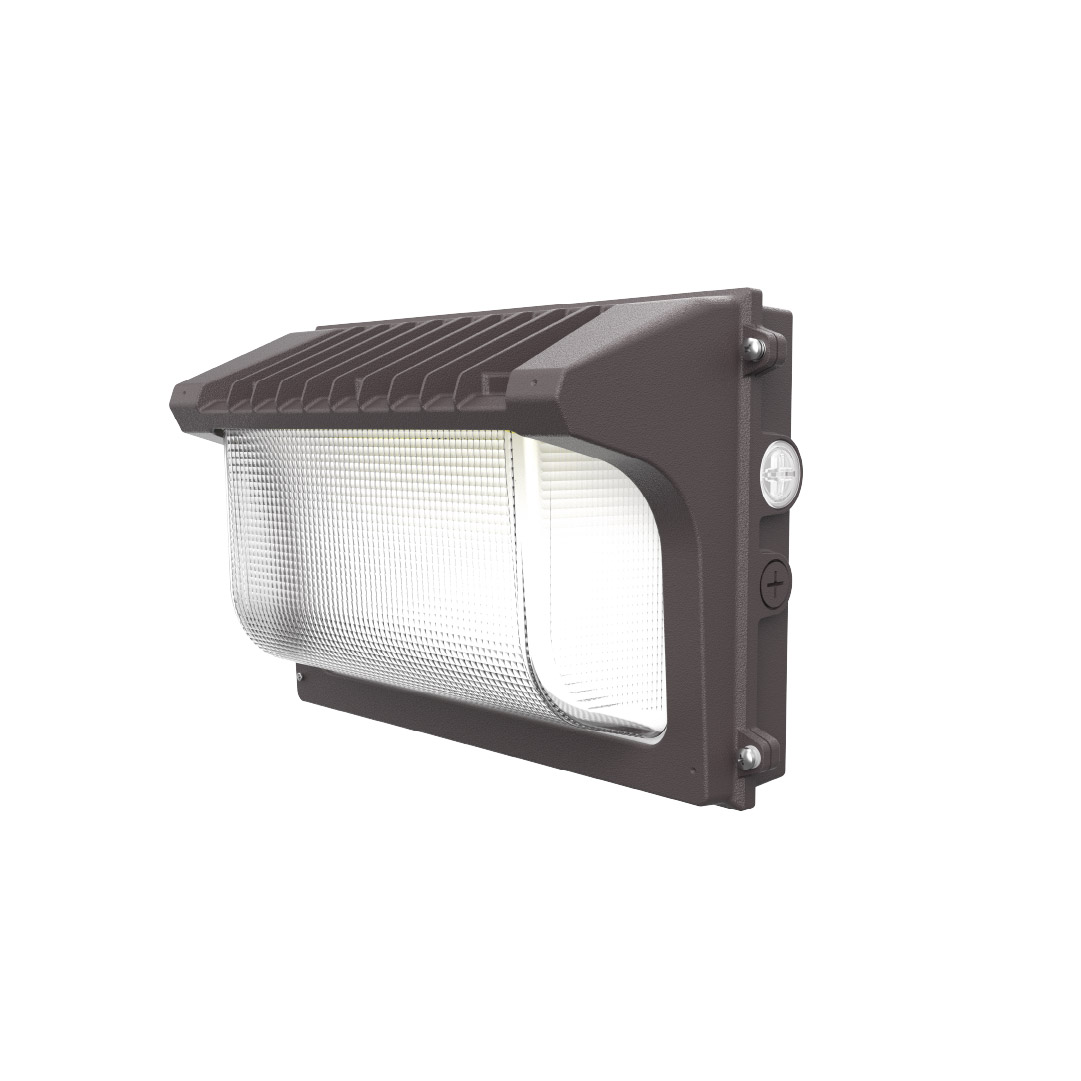

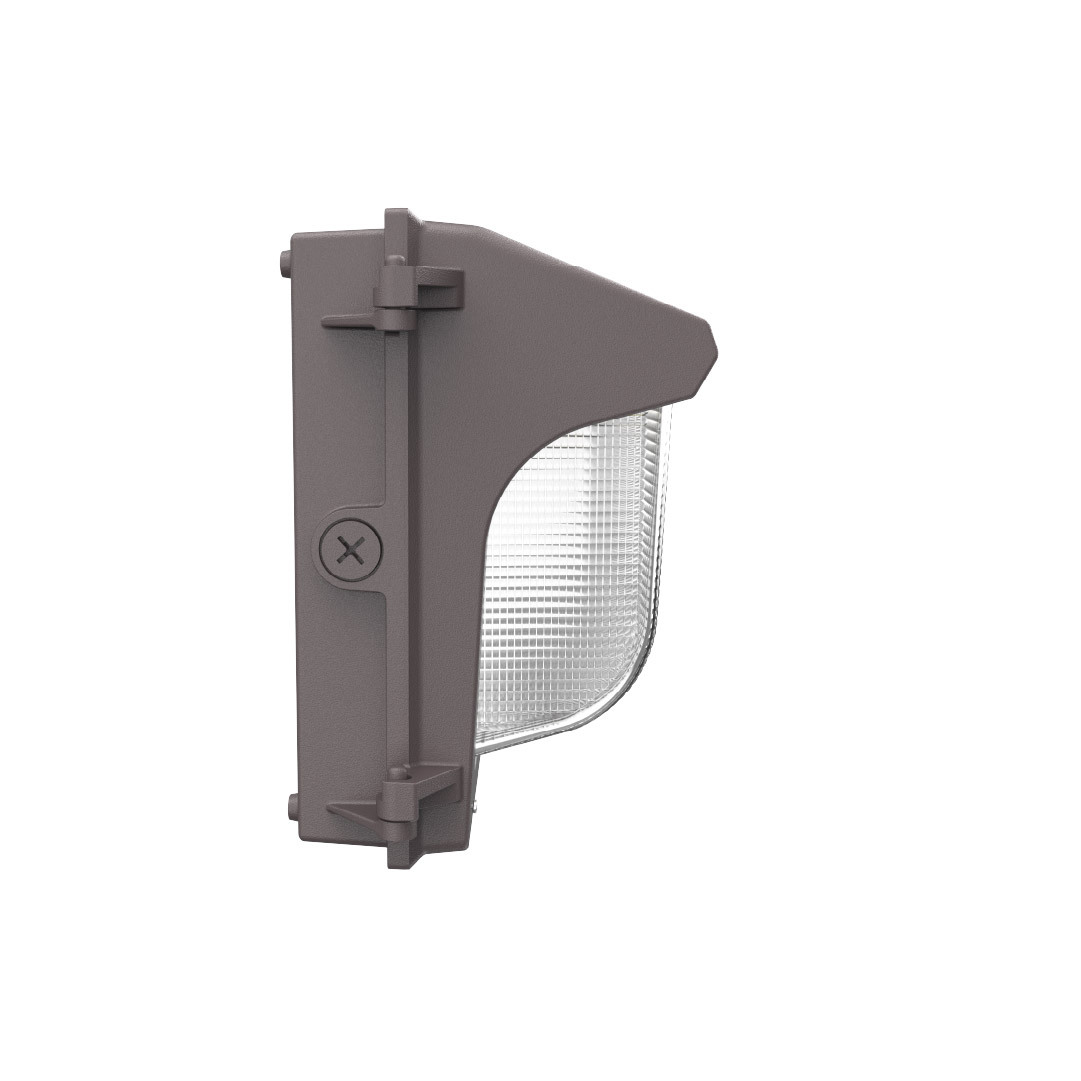

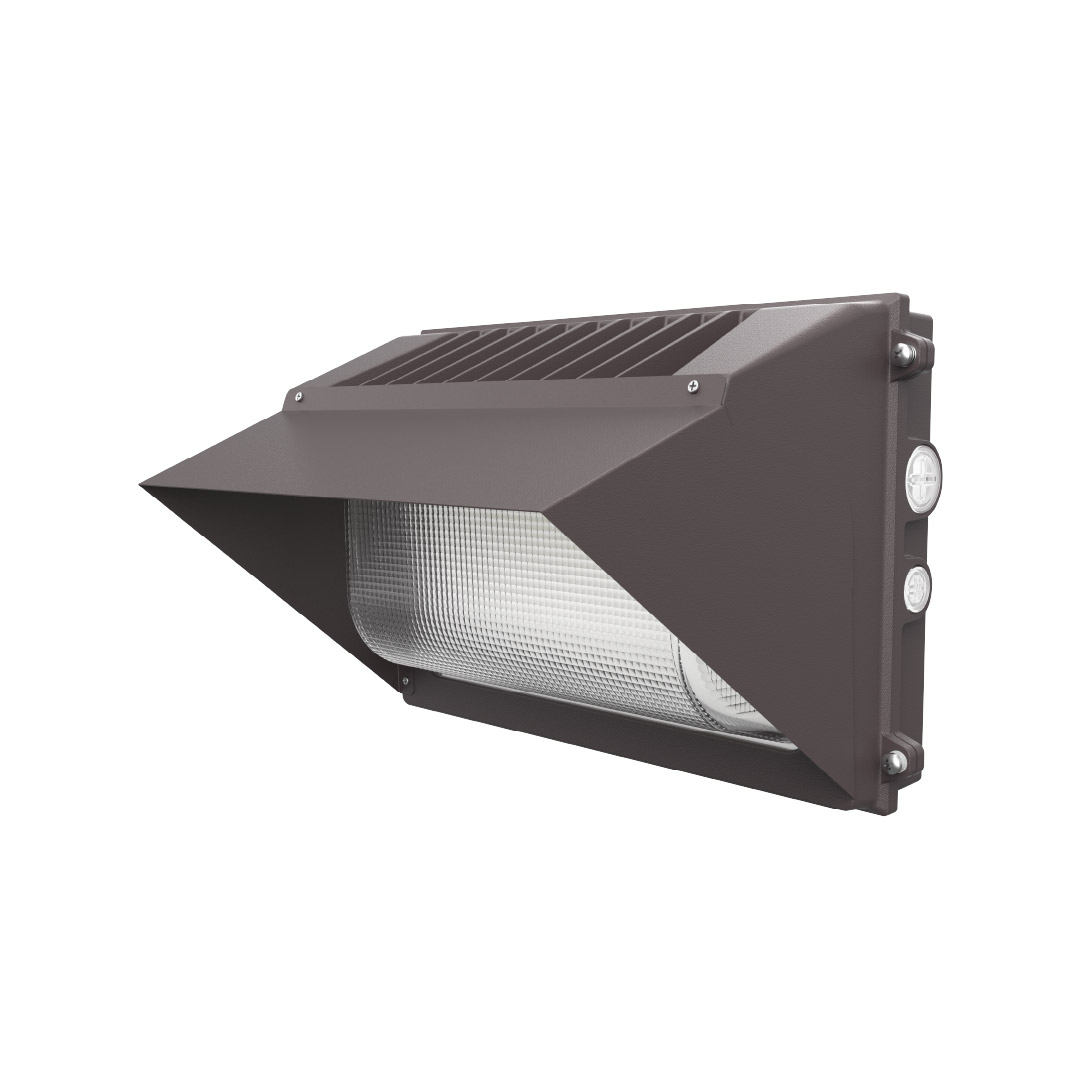

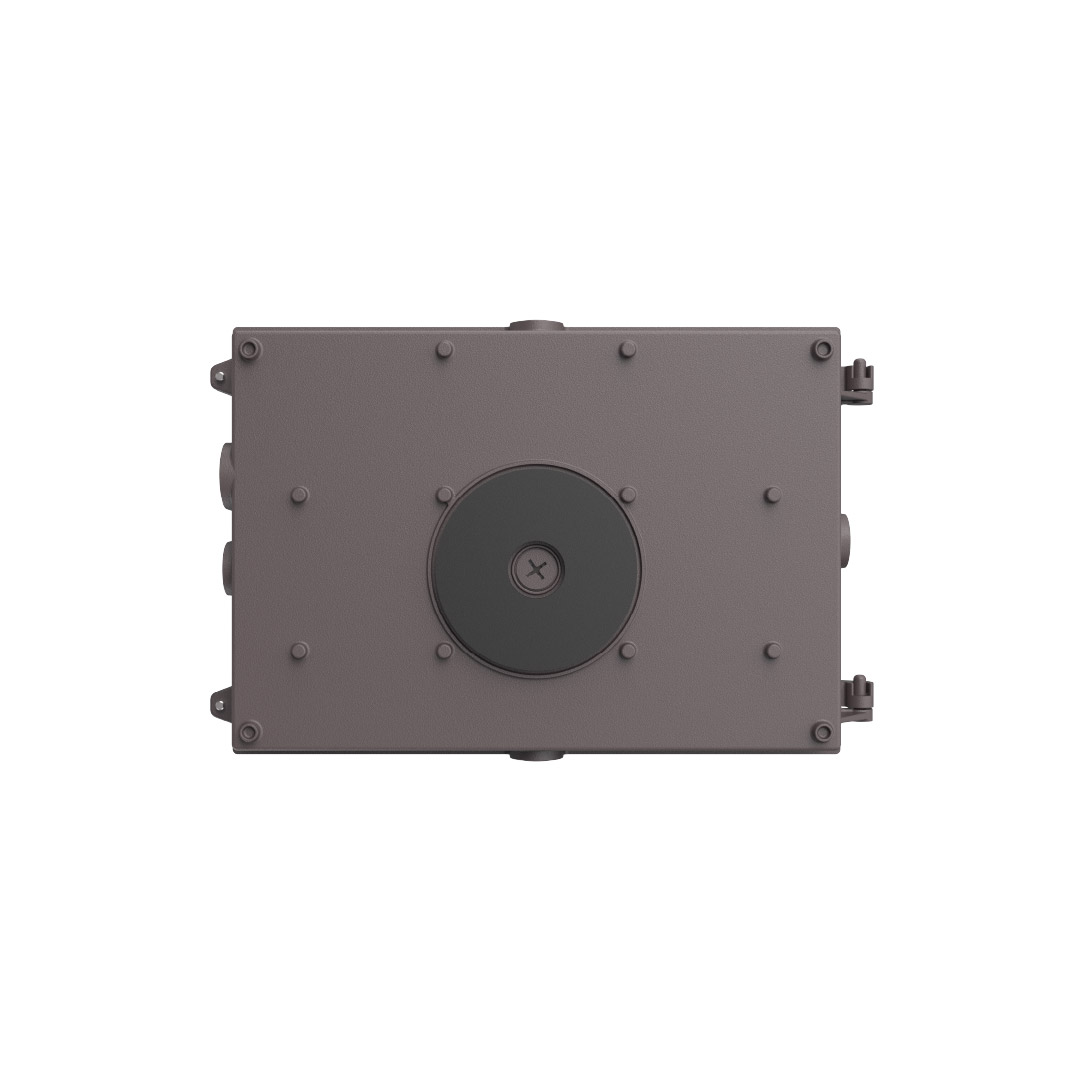

WP2018 LED Wall Pack Light is a high-performance outdoor luminaire designed for commercial and industrial applications. Featuring field-selectable wattage, CCT, and photocell ON/OFF control, WP2018 provides maximum flexibility for various project requirements. The robust ADC12 die-cast aluminum housing and IP65-rated construction ensure long-lasting durability in wet locations. With high lumen efficacy and easy wall mounting, WP2018 is an ideal solution for reliable and energy-efficient exterior lighting.
Wattage
40W/30W/20W (Selectable), 60W/40W/30W (Selectable)
80W/60W/40W (Selectable), 100W/80W/60W (Selectable)
120W/100W/80W (Selectable)
150W/120W/100W (Selectable)
Lumens
5,000~18,750lm
Efficacy
125lm/W
Color Temperature
3000K/4000K/5000K (Selectable)
CRI
70+
Input Voltage
120-277V / 120-347V
Operating Temp
−40°F to 113°F
IP Rating
IP65
Mounting Type
Wall Mount
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
WP2018
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
