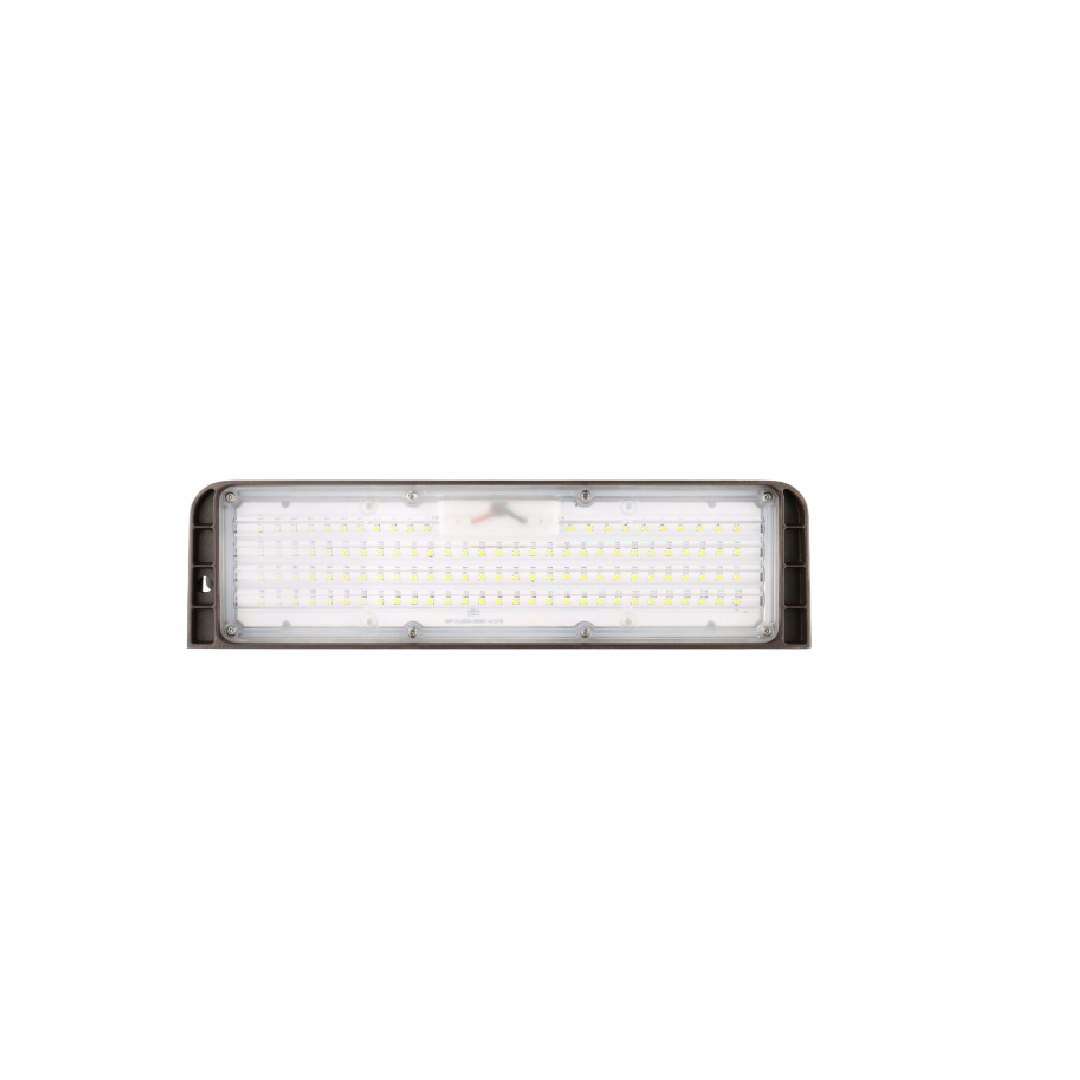

Wall Pack
WP1303
By True LED USA
WP1303 is a high-performance LED wall pack available in 26W to 135W, replacing up to 400W MH fixtures. With field-selectable wattage and CCT, it delivers uniform light distribution and up to 20,000 lumens. Designed with die-cast aluminum housing, UV-resistant lens, and IP-rated sealing, WP1303 offers long service life, DLC Premium certification, and optional controls such as photocell, PIR sensor, and emergency battery.
Wattage
26W, 36W, 65W, 100W, 135W
Lumens
3,800–20,000 lm
Efficacy
140–158lm/W
Color Temperature
3000K / 4000K / 5000K (Selectable)
CRI
70+
Input Voltage
120-277V / 347-480V
Operating Temp
-40 to +104°F
IP Rating
IP65
Mounting Type
Wall
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
WP1303
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

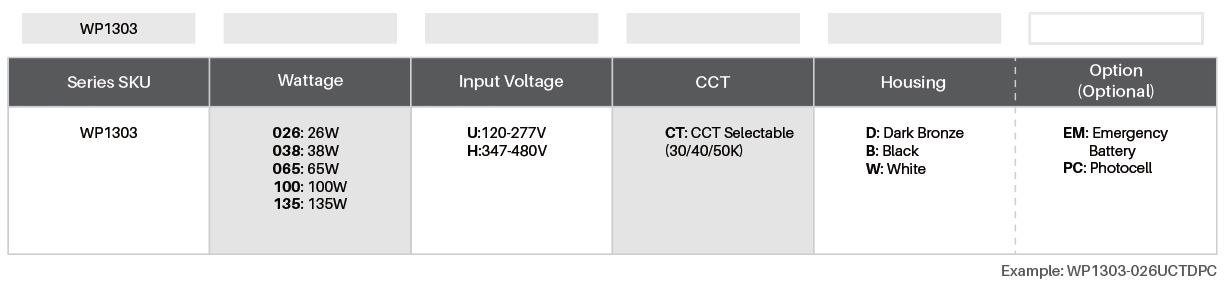

Ordering Information
