LED Troffer Light
TL1524
By True LED USA

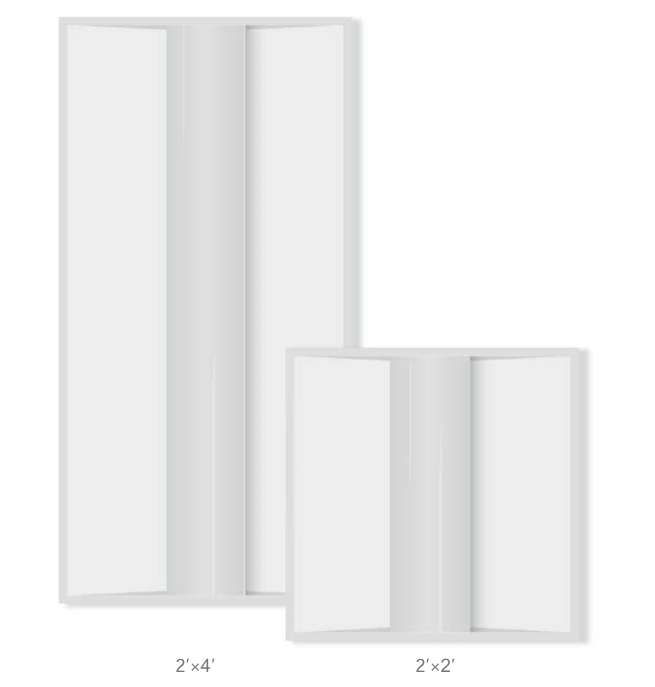

The TL1524 LED Troffer Light is a high-performance LED lighting solution available in 2’×2’ and 2’×4’ configurations. Constructed of one-piece ribbed unitized housing with interlocking corners, it prevents damage and removes sharp edges for safe handling. Featuring wattage and CCT selectable technology, precision formed optics, 0-10V dimming, and pre-embedded sensor base for quick infield sensor installation.
Wattage
2×2: 15W, 20W, 25W, 30W, 40W (Selectable)
2×4: 25W, 30W, 35W, 40W, 50W (Selectable)
2×4: 30W, 40W, 50W, 60W, 72W (Selectable)
Lumens
1,950 ~ 9,000 lm
Efficacy
125 - 130 lm/W
Color Temperature
3500K ~ 6500K (Selectable)
CRI
≥ 80
Input Voltage
120-277V AC
Operating Temp
IP Rating
Mounting Type
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
TL1524
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

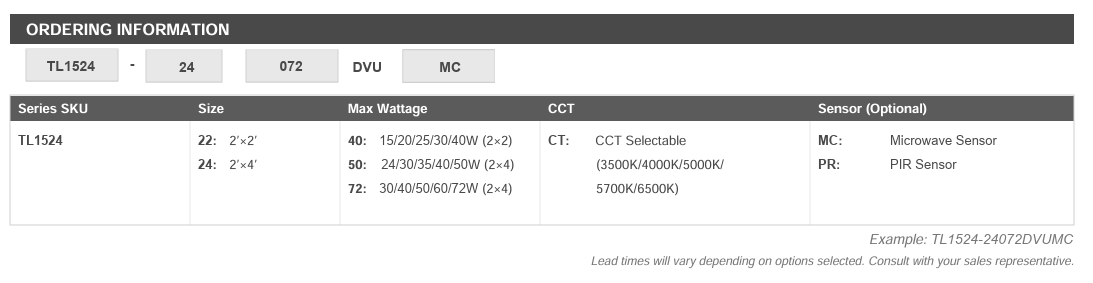

Ordering Information
