Street Light
ST502
By True LED USA

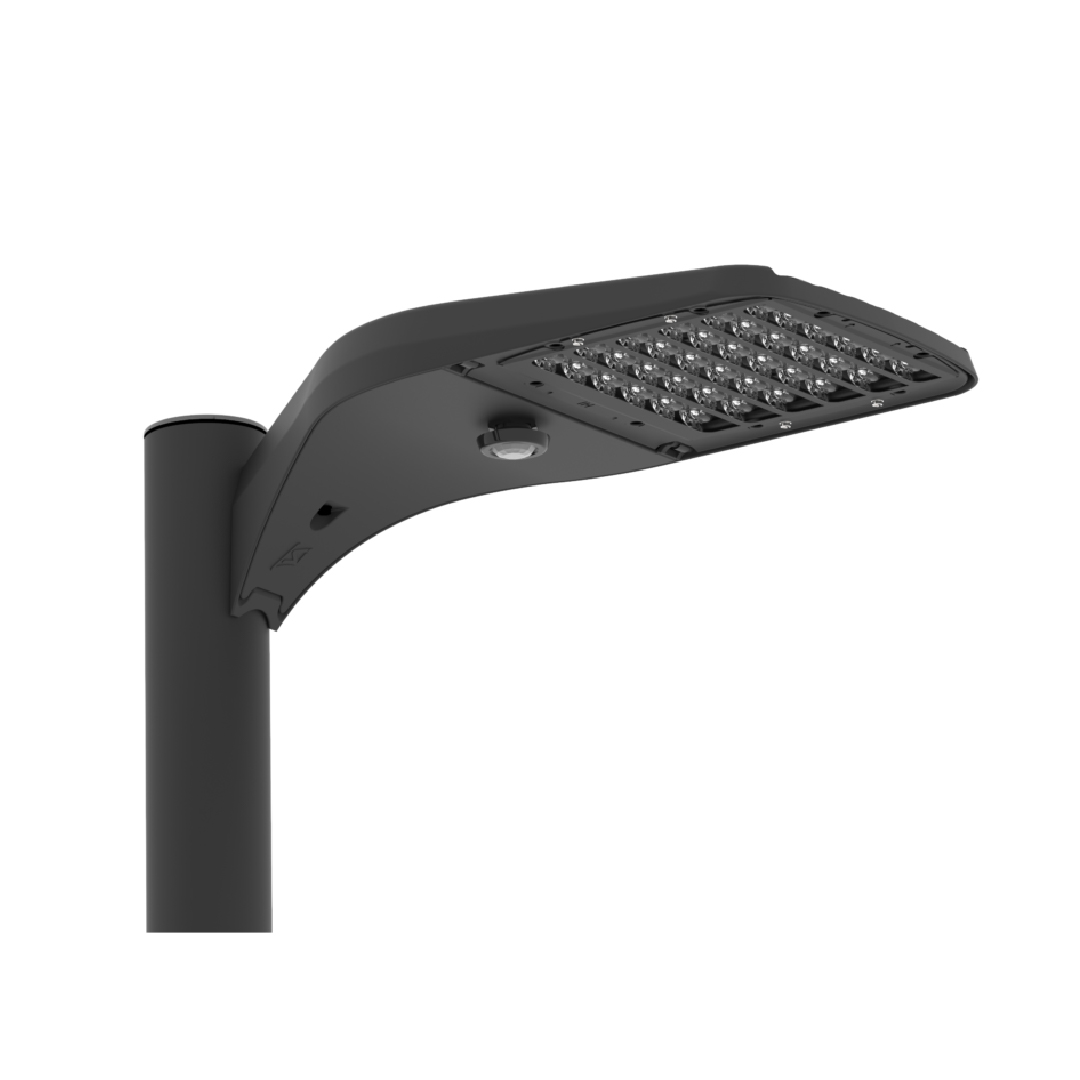

The ST502 LED Area Light is a high-performance outdoor luminaire designed for parking lots, campuses, walkways, and building perimeters. Featuring precision silicone optics, it offers distributions from Type II to Type V for maximum coverage with zero uplight. With wattage options from 39W to 209W and lumen packages ranging from 6,000 to 30,000 lm, the ST502 ensures exceptional energy efficiency up to 163 lm/W. Its rugged die-cast aluminum housing, IP66 and IK08 protection, and optional smart controls deliver reliable, long-lasting performance in demanding environments.
Wattage
39W / 63W / 86W / 111W /
135W / 165W / 196W / 209W
Lumens
6,000 – 30,000 lm
Efficacy
112 – 163 lm/W
Color Temperature
2700K / 3000K / 3500K / 4000K / 5000K
CRI
70+ / 80+
Input Voltage
120-277V / 347-480V
Operating Temp
-40°F to +122°F
IP Rating
IP66
Mounting Type
Square or round pole, Wall mount bracket, Slipfitter, Quick-mount plates, Tenon mount, Universal mounting bracket
Feature
IK08
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
ST502
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
