Round High Bay
RH772
By True LED USA

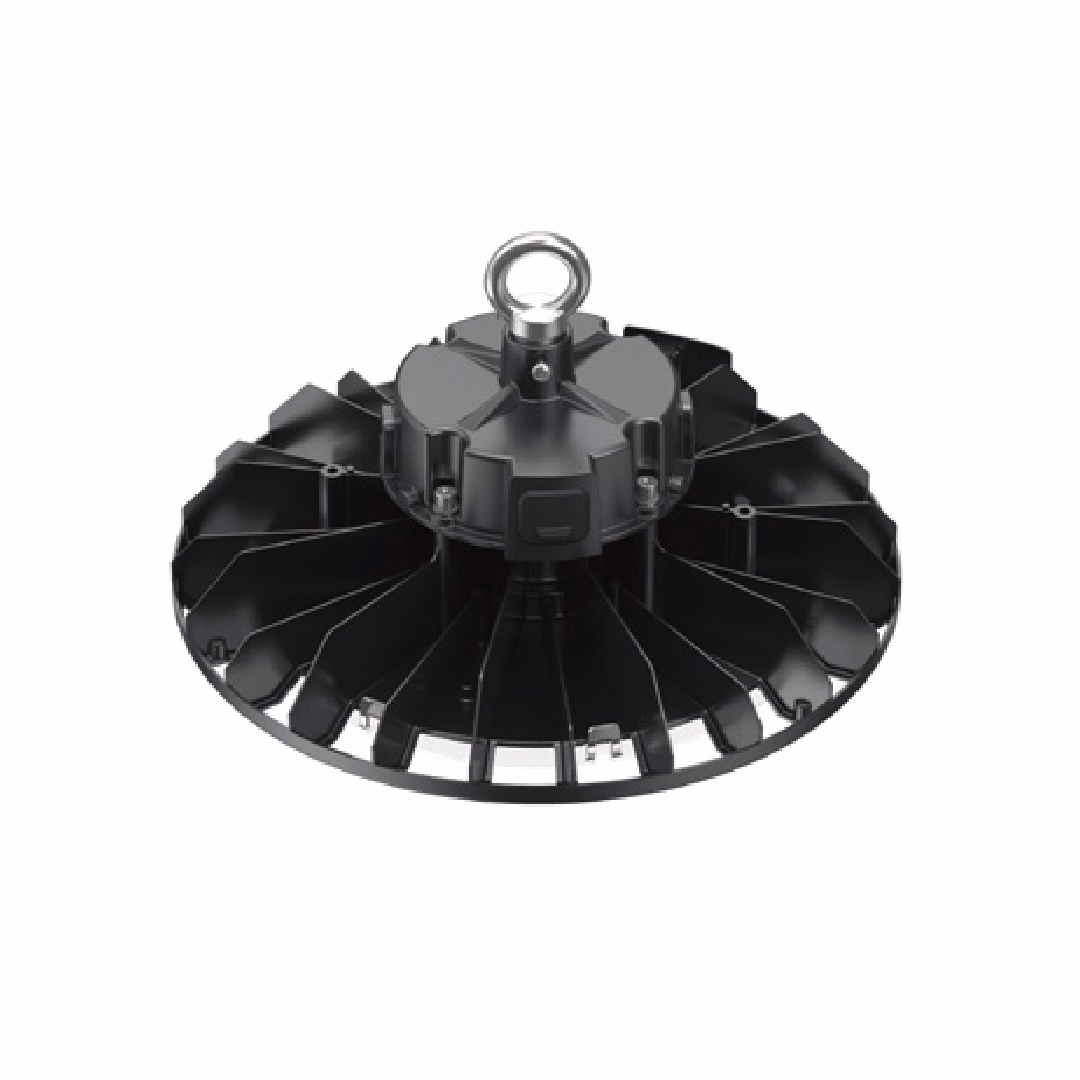

RH772 Round High Bay Light is a cost-effective and compact high bay light, available in three power options—100W, 150W, and 200W—across three different sizes to optimize cost and freight efficiency. Featuring a dotted lens design with UGR<24, it ensures comfortable, glare-reduced illumination. The luminaire offers flexibility with optional 1 PIN or 3 PIN sockets, while its Twist Central Intelligent Control system provides an adaptable solution for both wholesale and contract channels.
Wattage
60/80/100W (Selectable)
90/120/150W (Selectable)
Lumens
16,500lm / 24,750lm / 33,000lm
Efficacy
~165lm/W
Color Temperature
3000K / 4000K / 5000K (Optional)
CRI
70+ / 80+
Input Voltage
120-277V
Operating Temp
-22 to +122°F
IP Rating
IP65
Mounting Type
Chain / Surface
Feature
IK08 (IK Rating)
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
RH772
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
