Round High Bay
RH747
By True LED USA

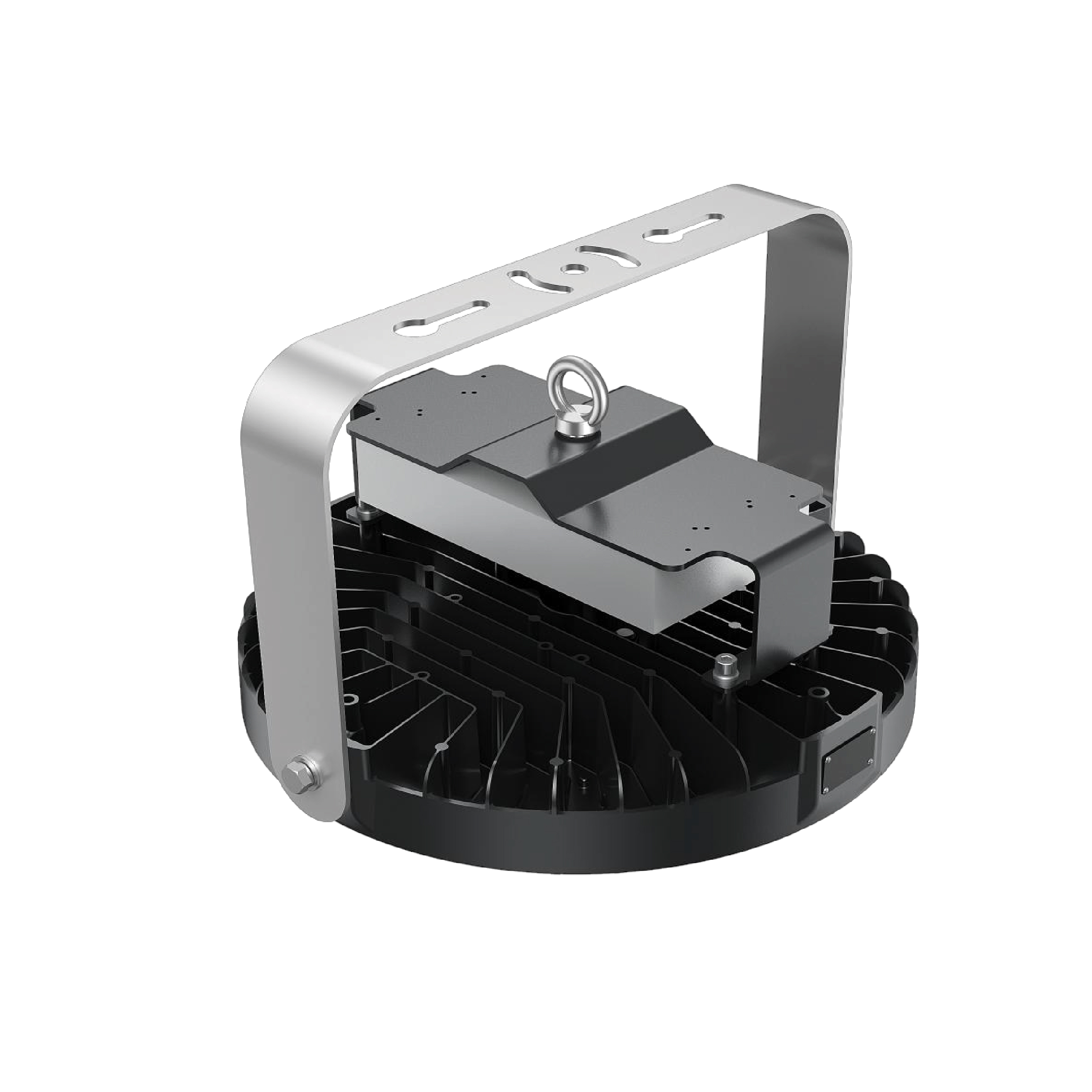

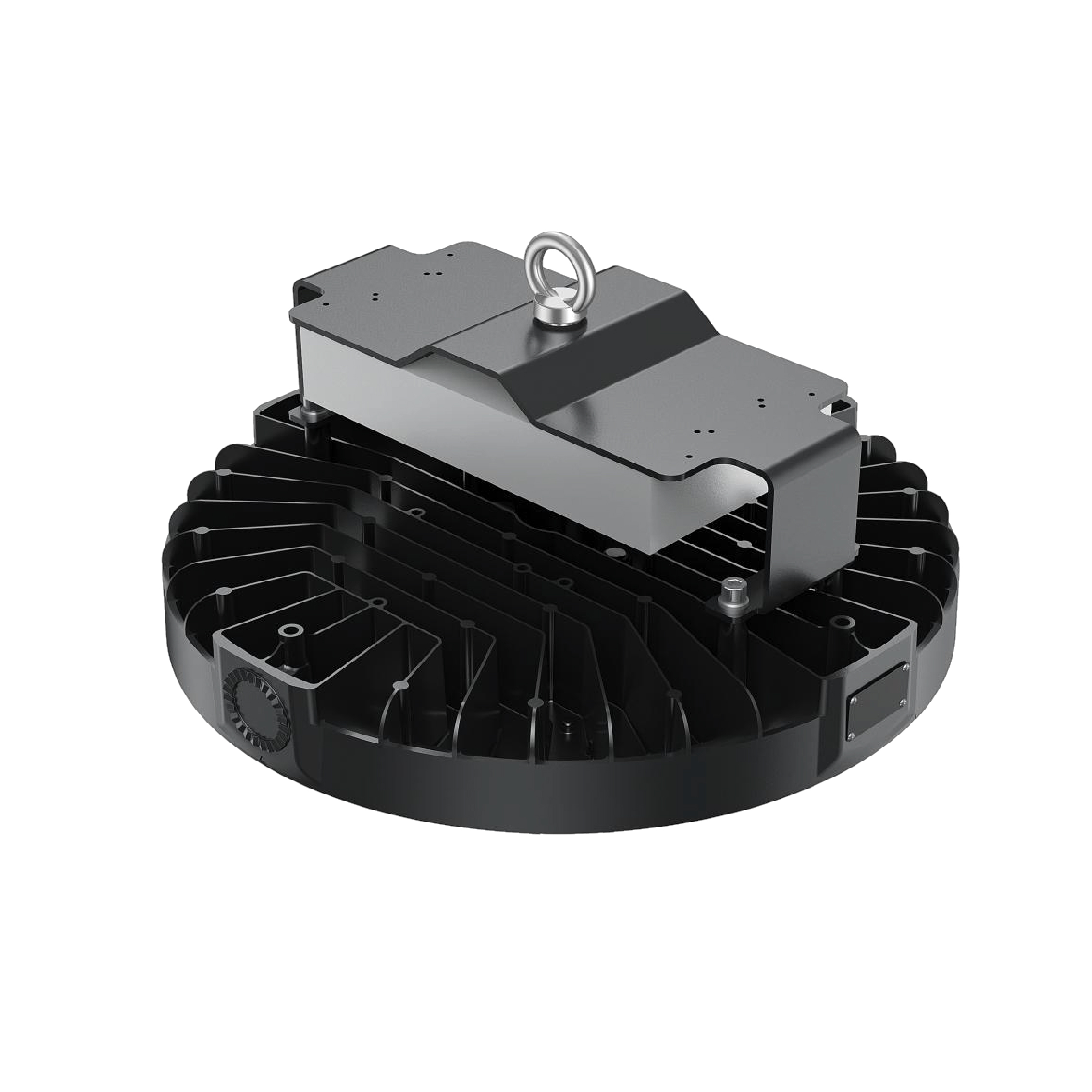

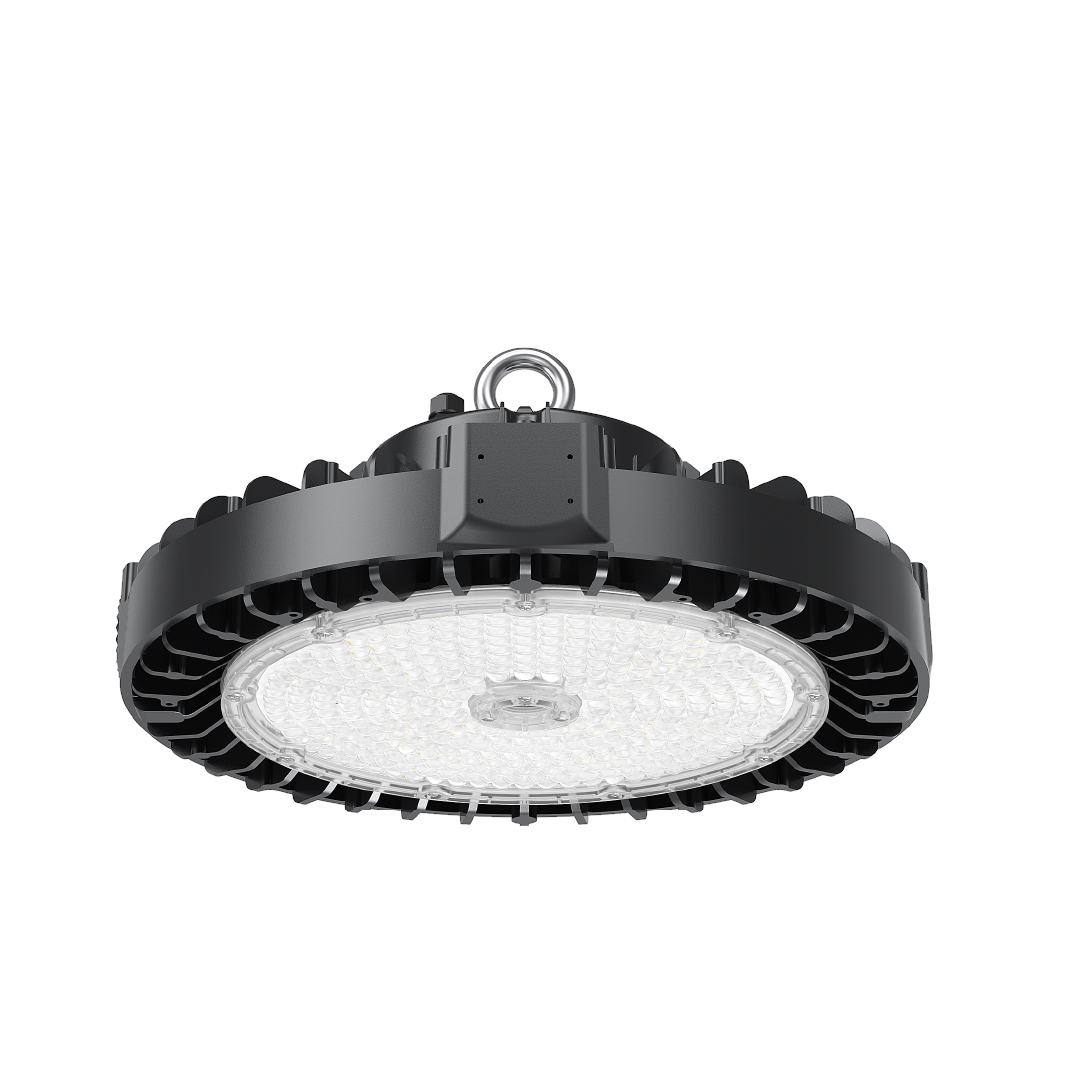

RH747 is a powerful LED high bay light designed to replace 1000W–2000W HID fixtures, delivering up to 96,000 lumens with superior efficiency up to 160 lm/W. With multiple beam angle options, robust aluminum alloy housing, polycarbonate optics, and IP66/IK08 protection, RH747 ensures durability and optimal performance in demanding industrial and commercial applications such as factories, exhibition centers, stadiums, and airports
Wattage
300W / 480W / 600W
Lumens
42,000–96,000 lm
Efficacy
130–160lm/W
Color Temperature
3000K / 4000K / 5000K (Optional)
CRI
70+ / 80+
Input Voltage
277–480V
Operating Temp
–22°F to +122°F
IP Rating
IP66
Mounting Type
Loop hanging, Ceiling mounting
Feature
IK08
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
RH747
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
