Panel Light
PL601
By True LED USA
The PL601 LED Backlit Panel Light features an ultra-slim profile and an economical design while delivering exceptional lumen efficacy. Engineered for reliability, it is powered by a UL Class II LED driver and utilizes a premium-grade PMMA light-guiding plate for optimal light diffusion. Encased in a durable aluminum frame, the PL601 ensures uniform, comfortable, and flicker-free illumination, making it an excellent choice for a variety of lighting applications.
Wattage
1X4: 30/40/50W (Selectable)
2X2: 25/30/40W (Selectable)
2X4 :40/50/60W (Selectable)
2X4: 80W
Lumens
3,690~10,800lm
Efficacy
~135lm/W
Color Temperature
3500K / 4000K / 5000K (Selectable)
CRI
80+
Input Voltage
120-277V
Operating Temp
-22°F to 104°F
IP Rating
IP20
Mounting Type
Recessed , Surface
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
PL601
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

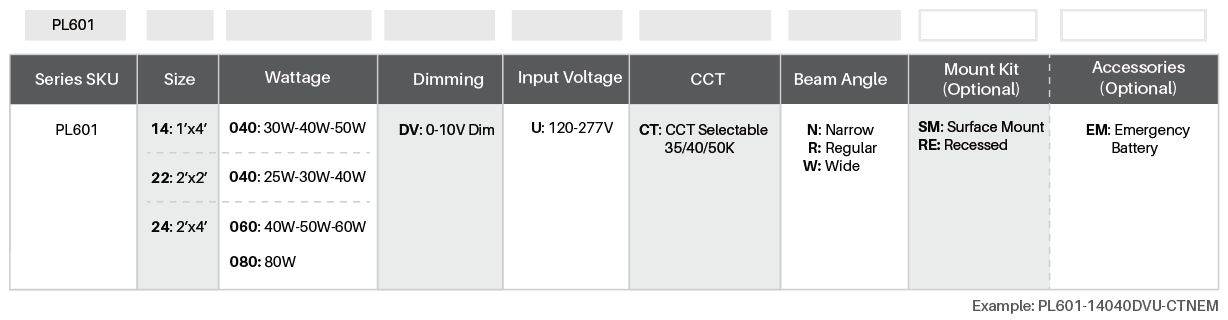

Ordering Information
