Linear Fixture Light
LS206
By True LED USA

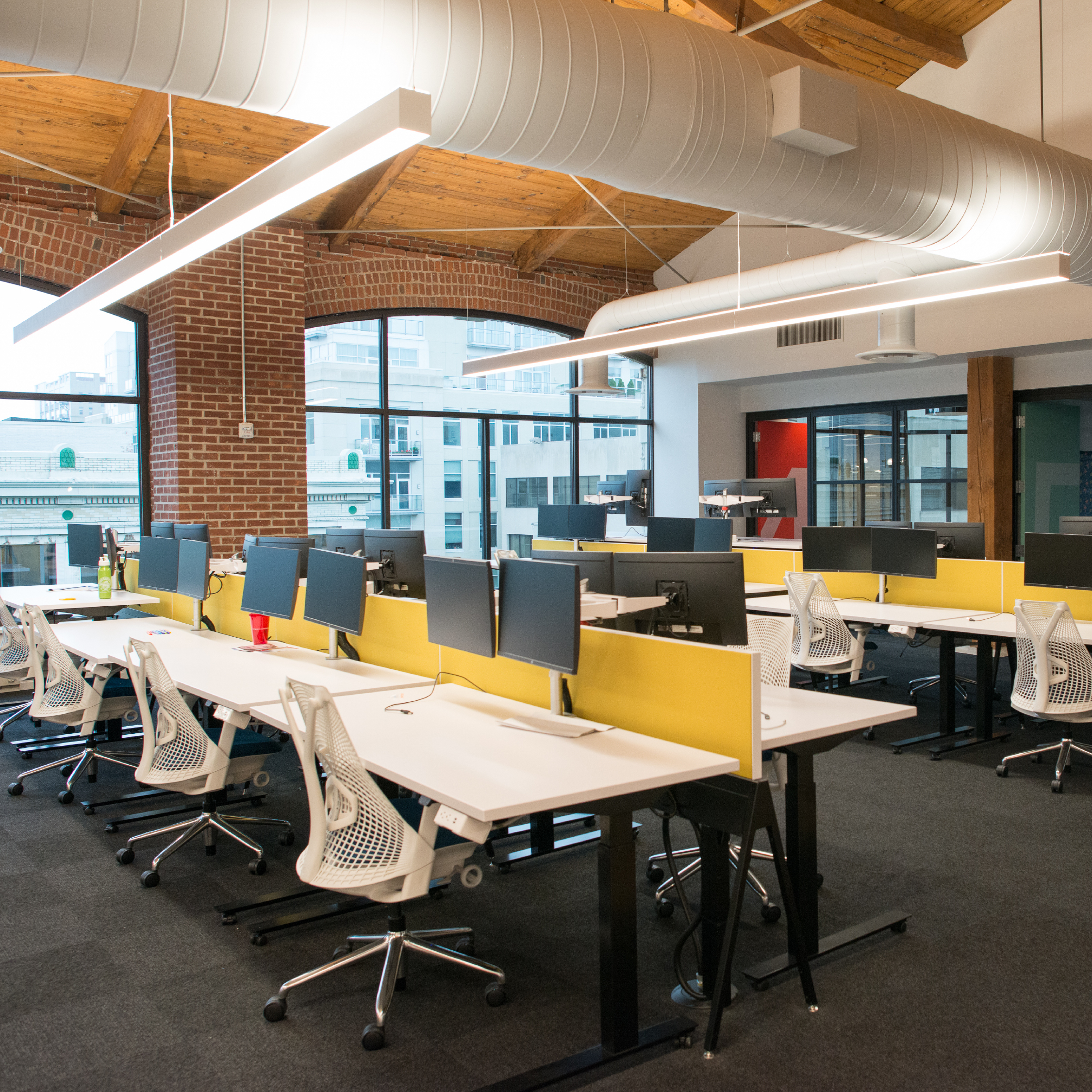

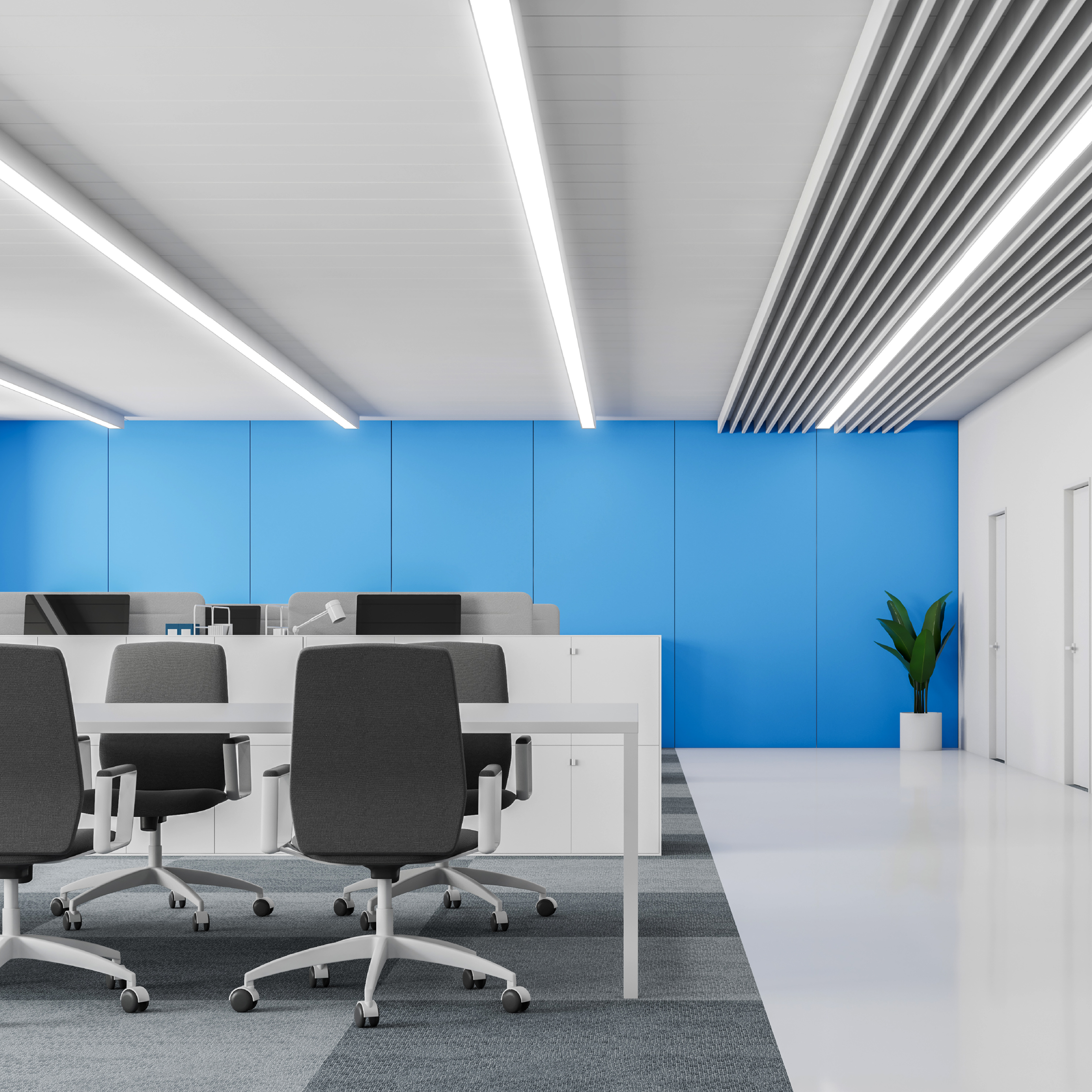

LS206 is an architectural linear LED fixture designed for modern interiors, offering pendant, surface, or wall mounting options. With multiple lengths and wattages, it provides uniform illumination with efficacy up to 120 lm/W. The sleek extruded aluminum housing and advanced optical diffuser deliver glare-free comfort, making LS801 ideal for offices, retail, hospitality, and commercial spaces requiring stylish and efficient linear lighting.
Wattage
20W/15W/10W(2FT)
30W/23W/15W(3FT)
40W/30W/20W(4FT)
80W/60W/40W(8FT)
Lumens
1,800~9,200lm
Efficacy
-120lm/W
Color Temperature
3000K / 3500K / 4000K (Selectable)
CRI
80+ / 90+
Input Voltage
120–277V
Operating Temp
–4°F to +104°F
IP Rating
IP40
Mounting Type

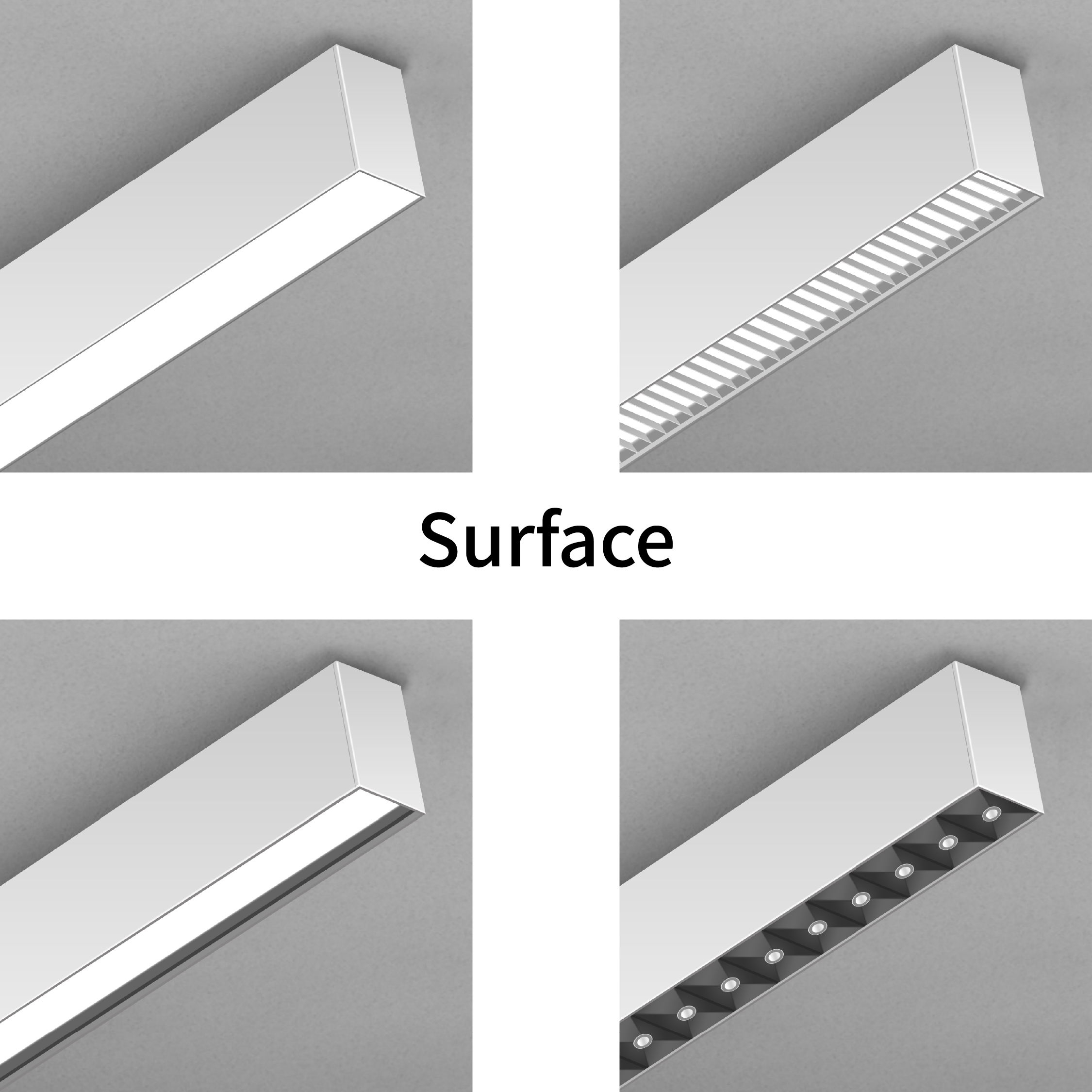

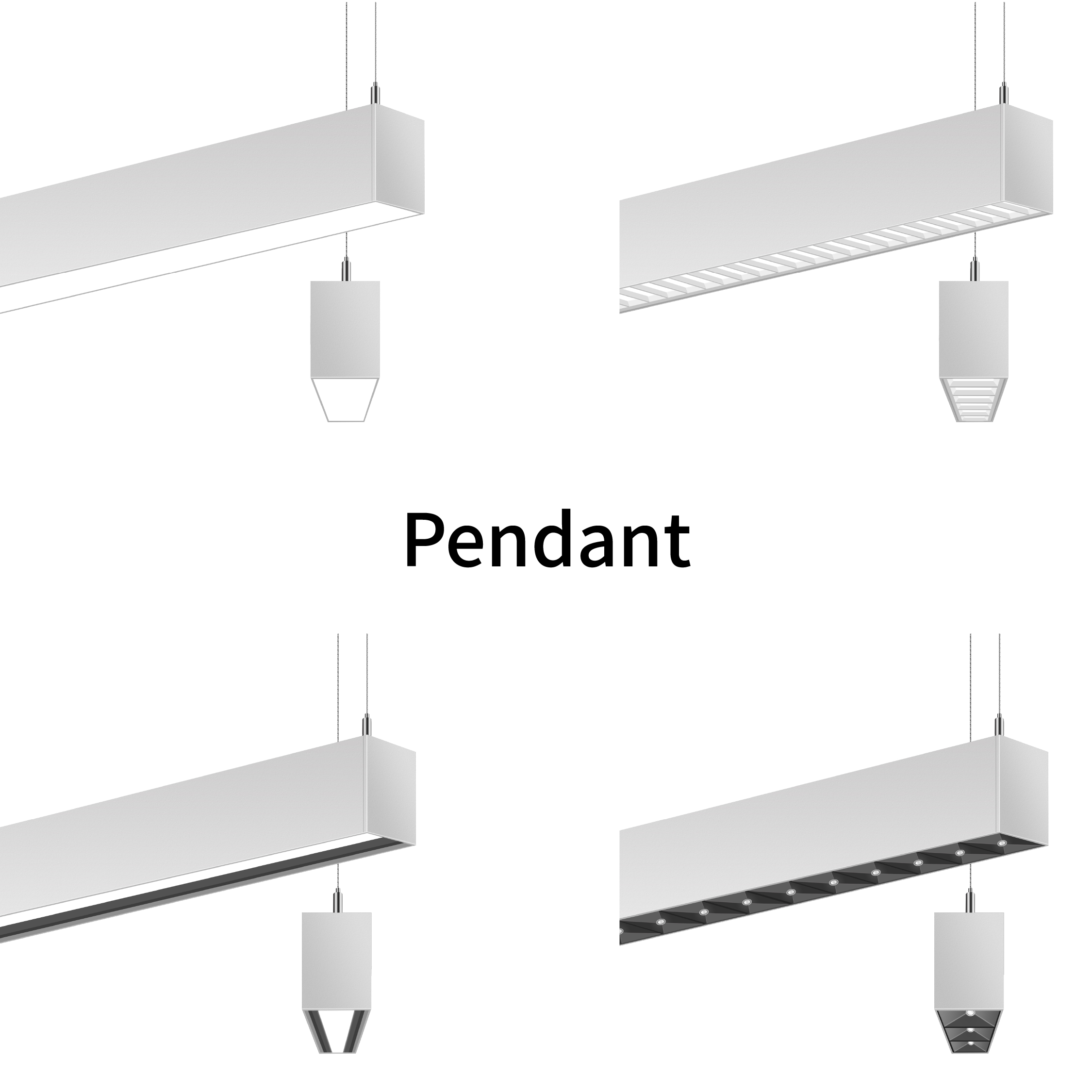

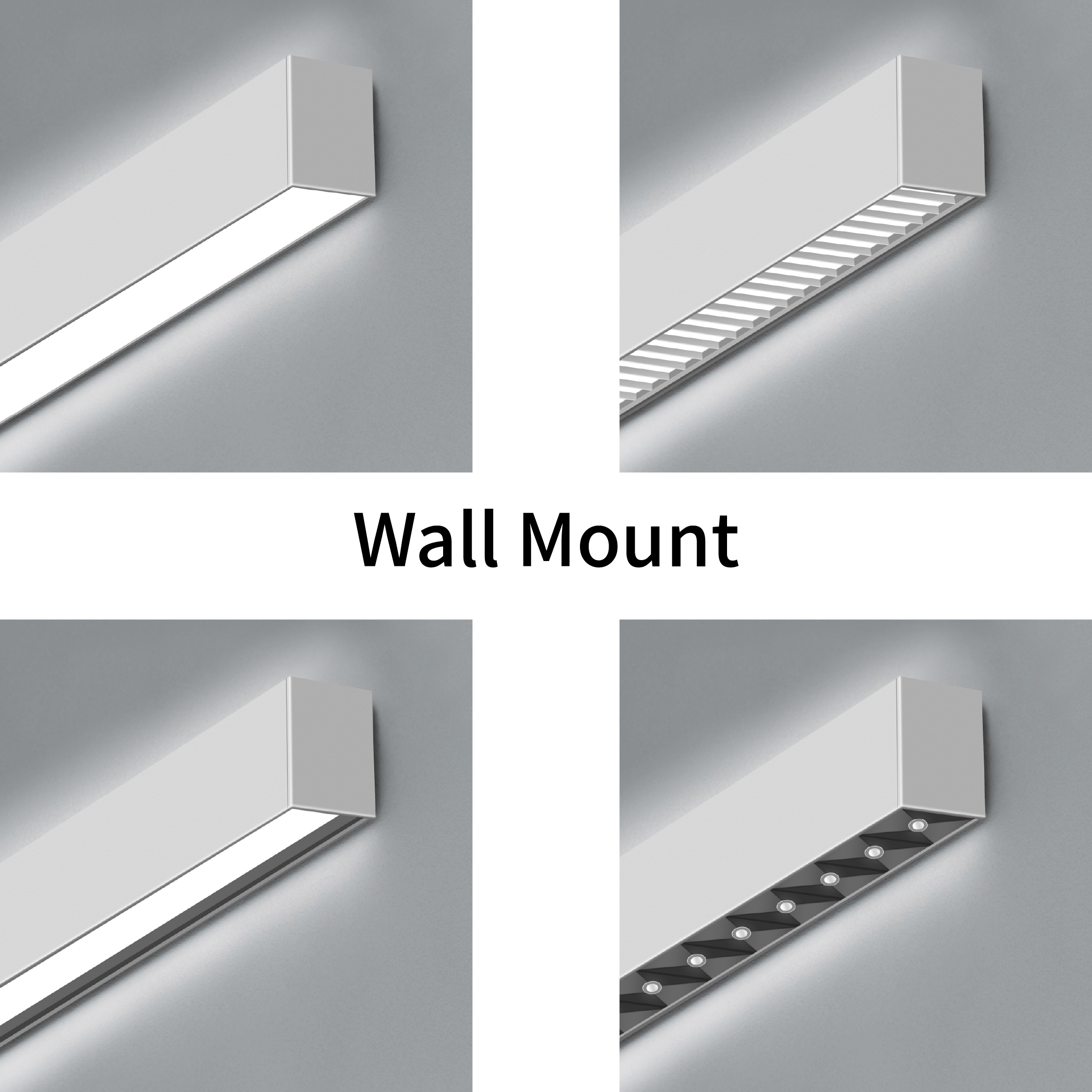

Pendant / Surface / Wall
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
LS206
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
