Linear Fixture Light
LS1201
By True LED USA

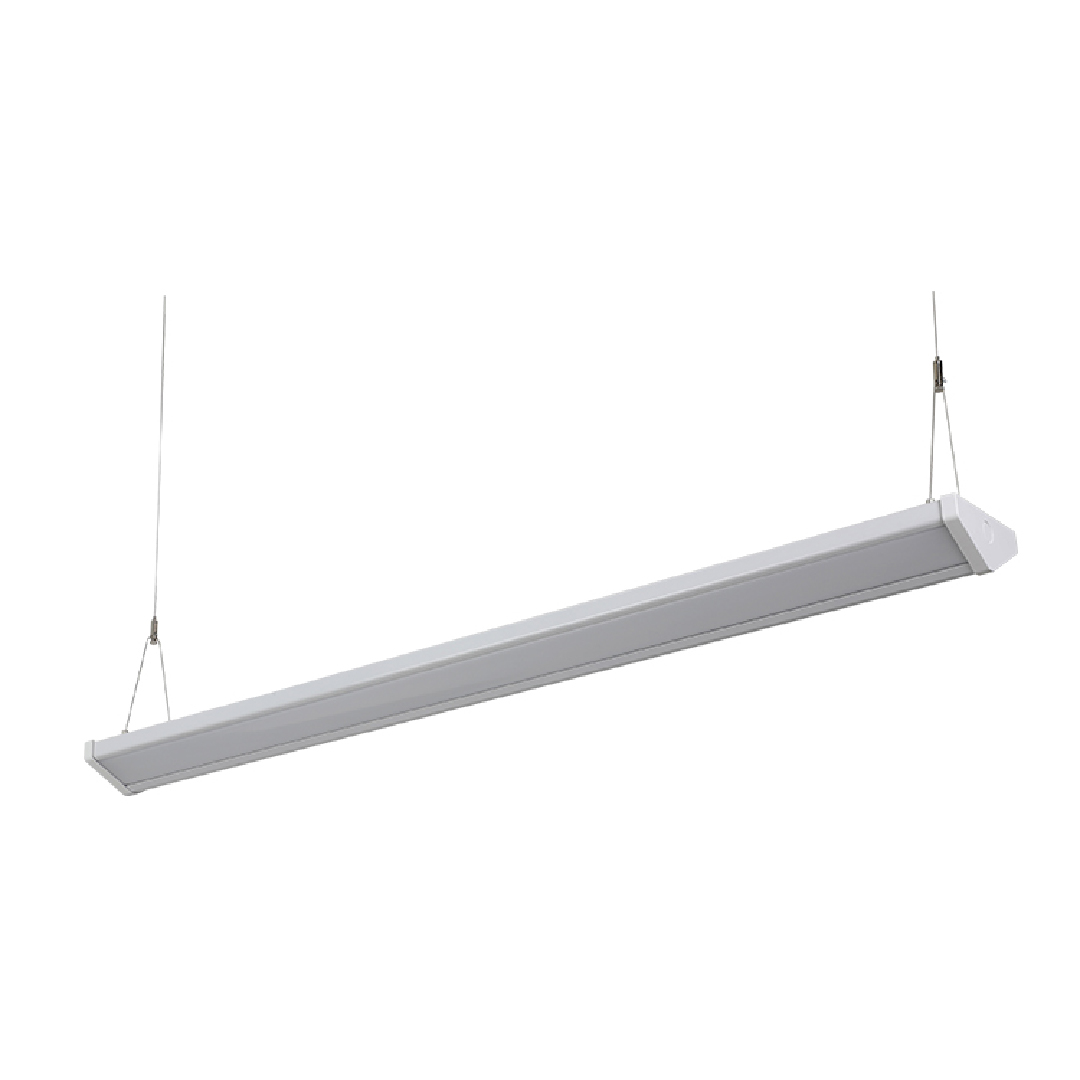

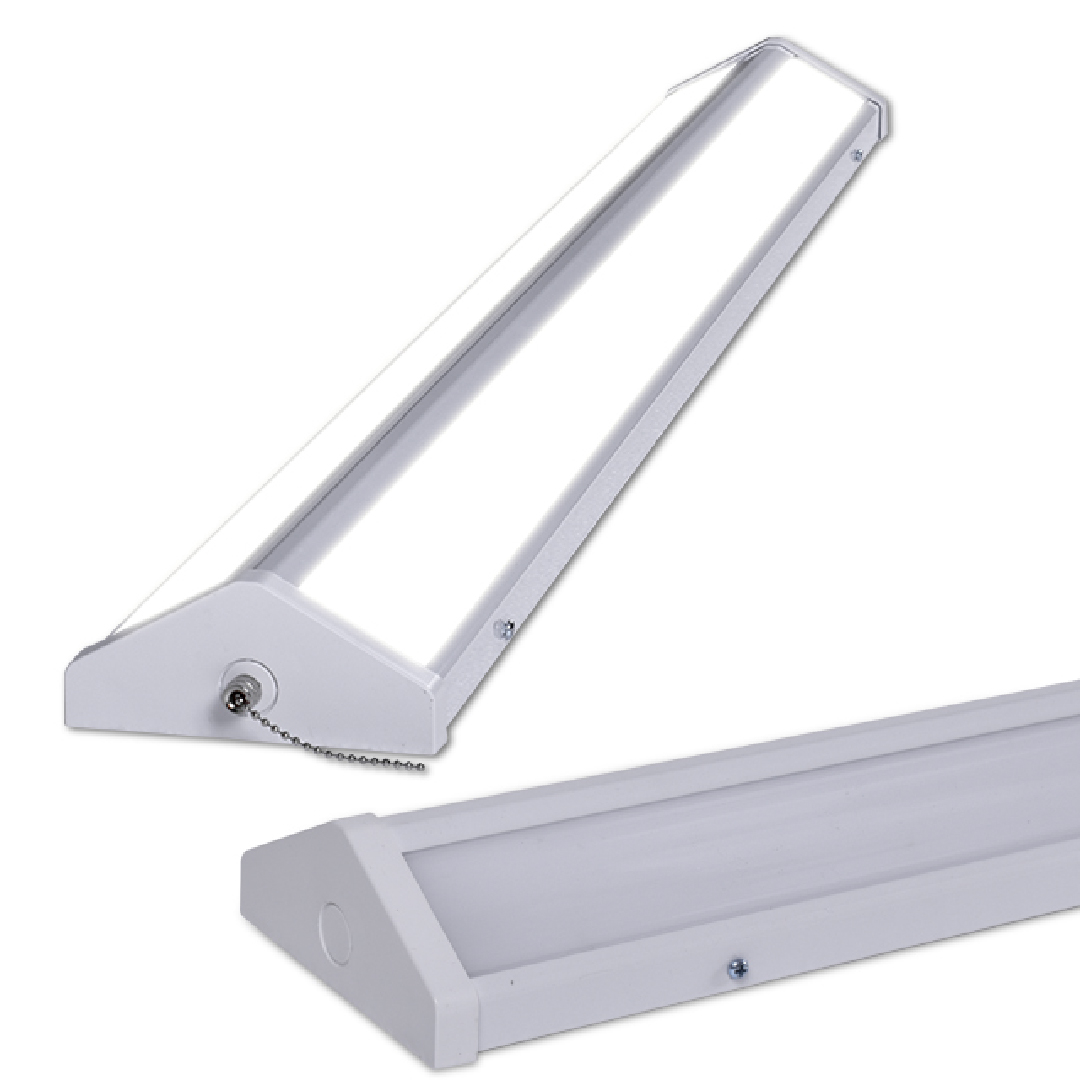

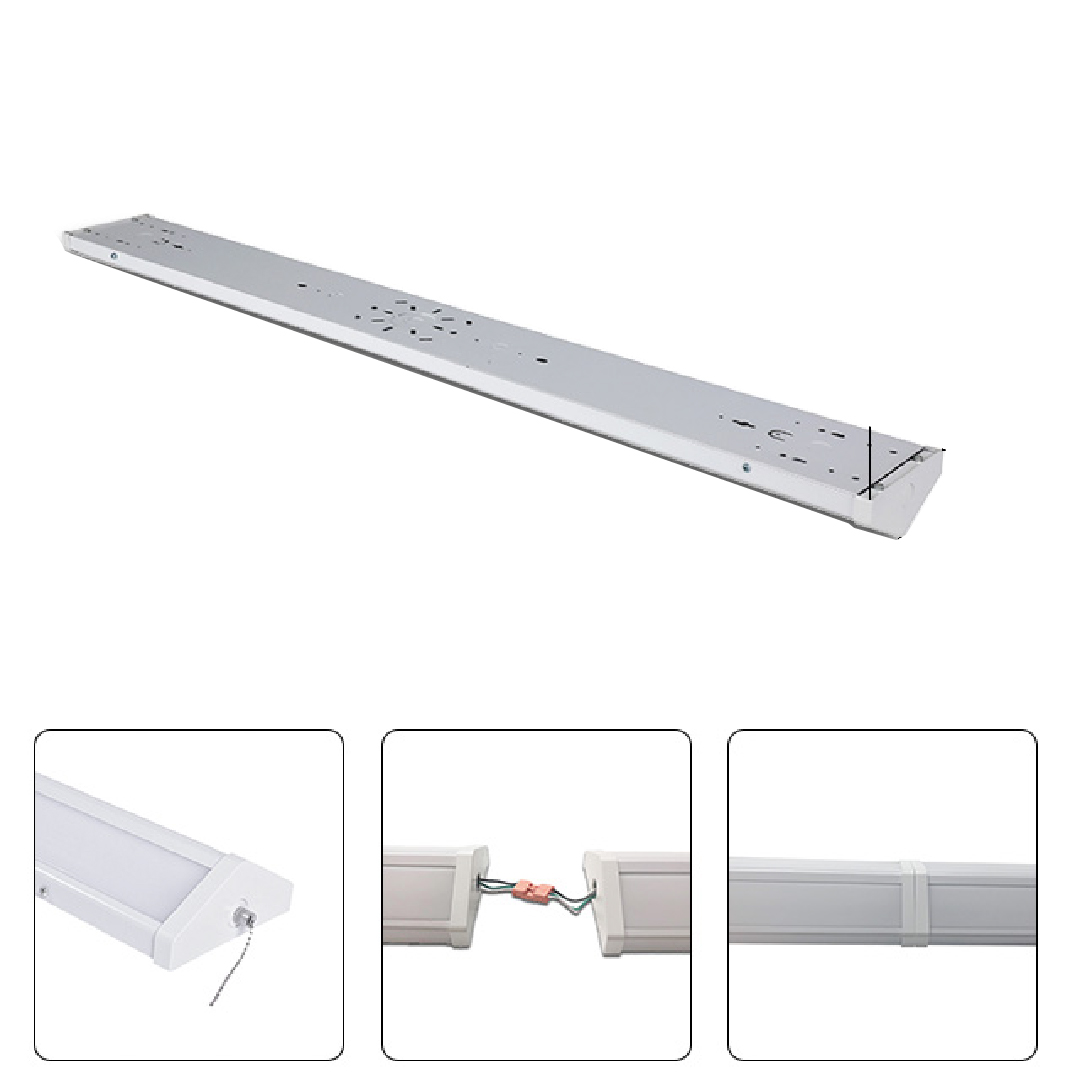

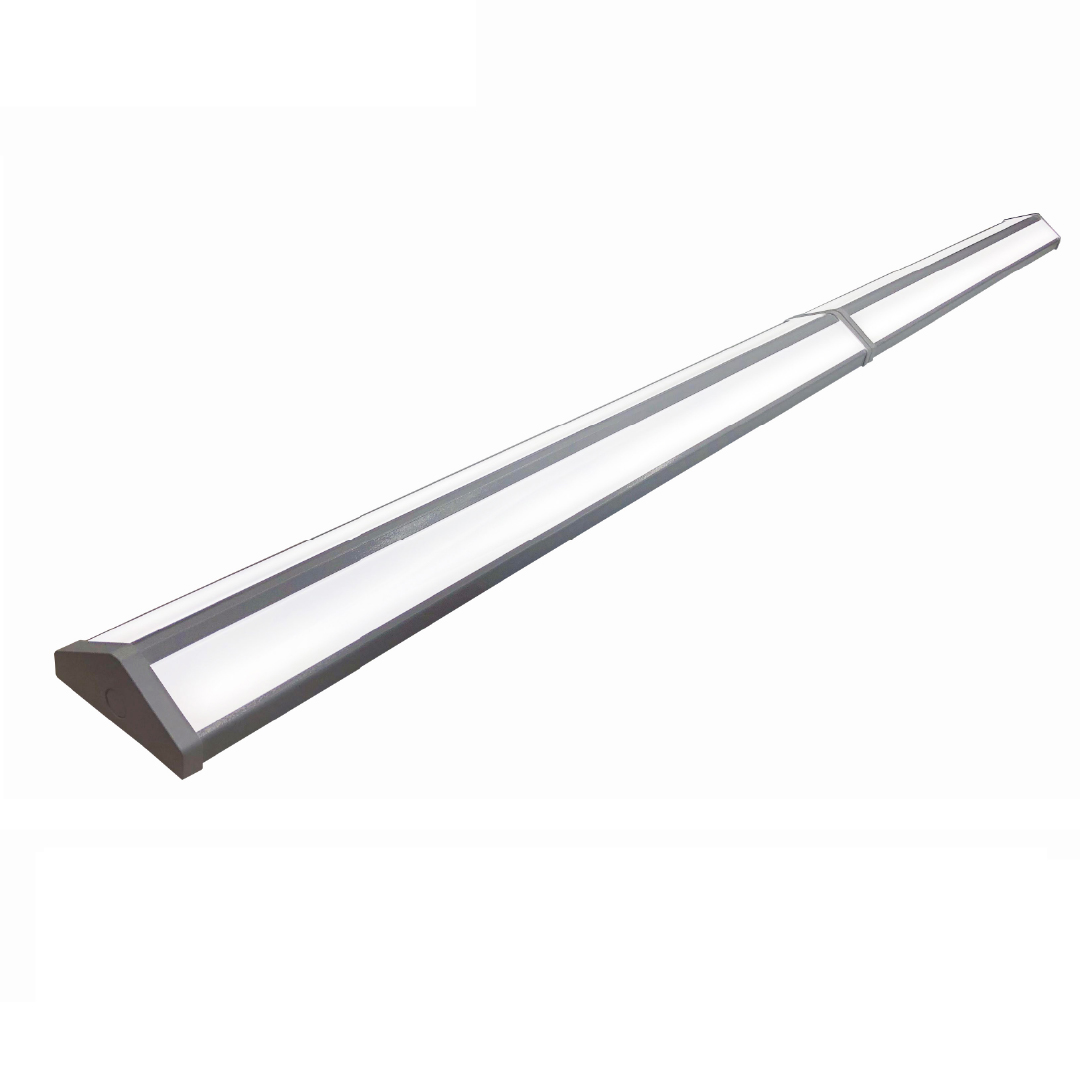

The LS1201 is a high-performance LED linear fixture engineered with an aluminum housing, aluminum heatsink, and a durable polycarbonate diffuser for superior optical clarity. Equipped with replaceable LED strips and a reliable isolated driver, it ensures long service life and simple maintenance. Its wide 120° beam angle and high efficiency make it ideal for commercial, industrial, and aisle lighting applications.
Wattage
2': 20/40 (Optional)
4': 40/60 (Optional)
5': 50/60/90/100 (Optional)
8': 80/120 (Optional)
Lumens
2,100 ~ 14,400lm
Efficacy
105– 130lm/W
Color Temperature
3000K / 4000K / 5000K / 6500K (Selectable)
CRI
80+
Input Voltage
100-277V
Operating Temp
-4°F ~ +104°F
IP Rating
IP20
Mounting Type
Surface mount
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
LS1201
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

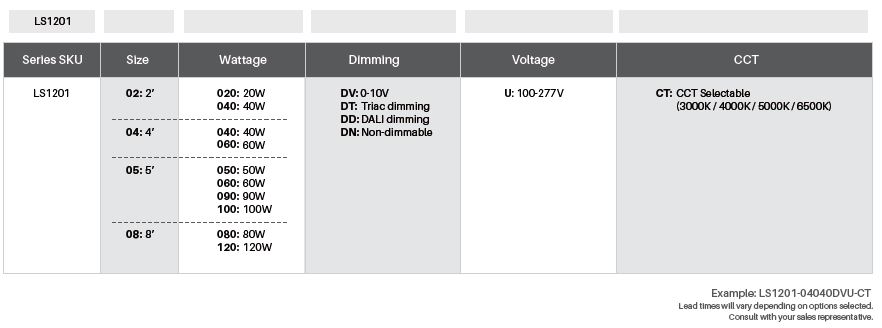

Ordering Information
