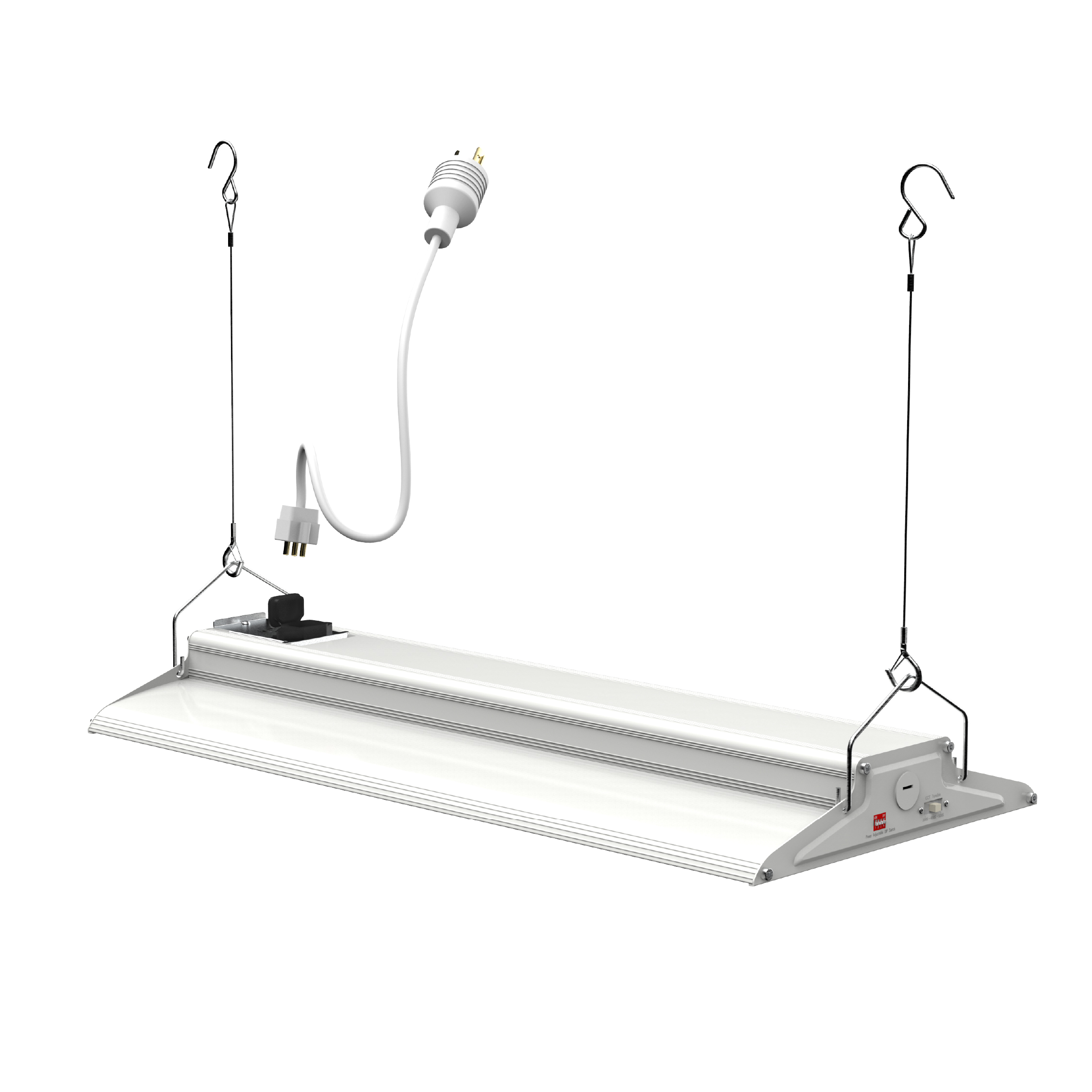

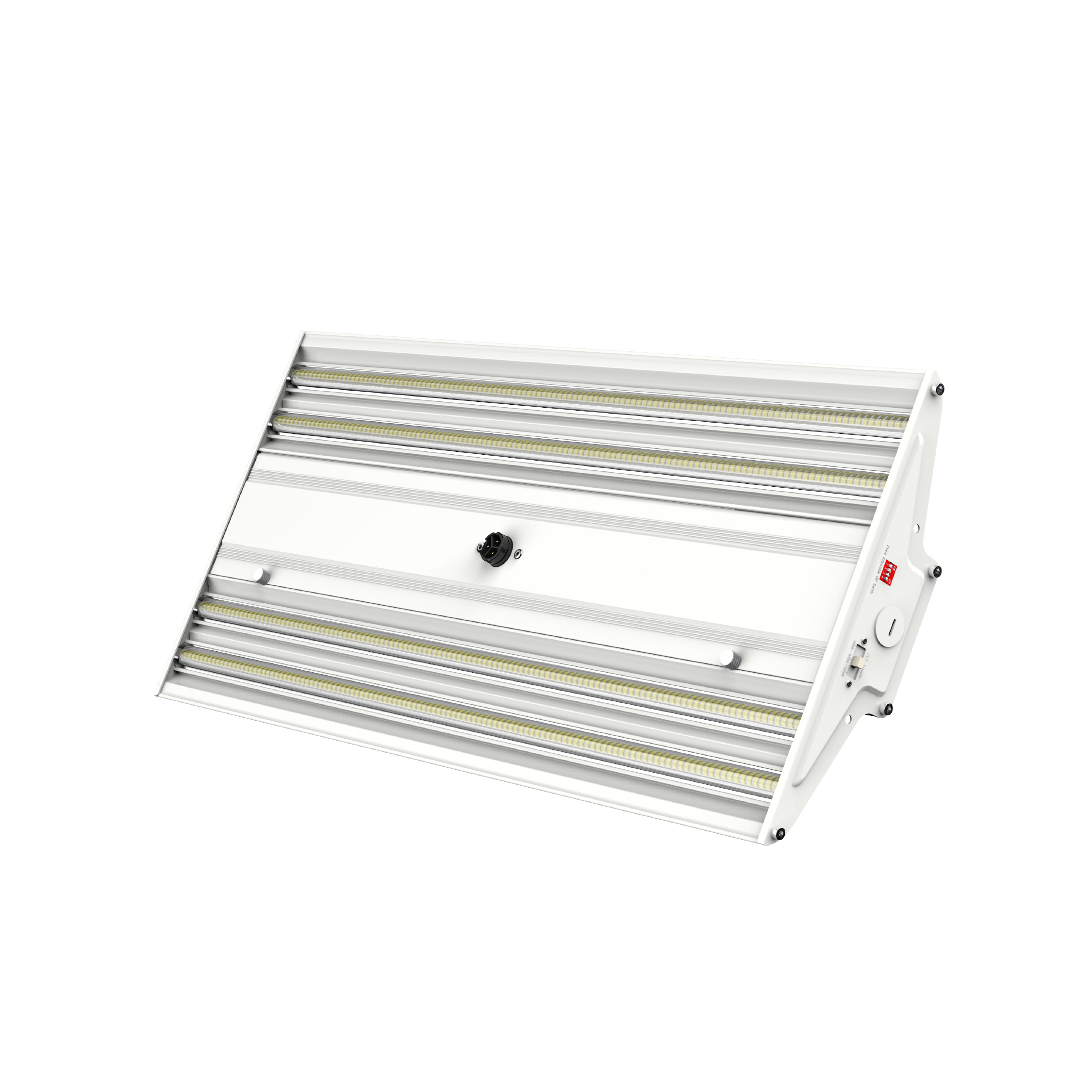

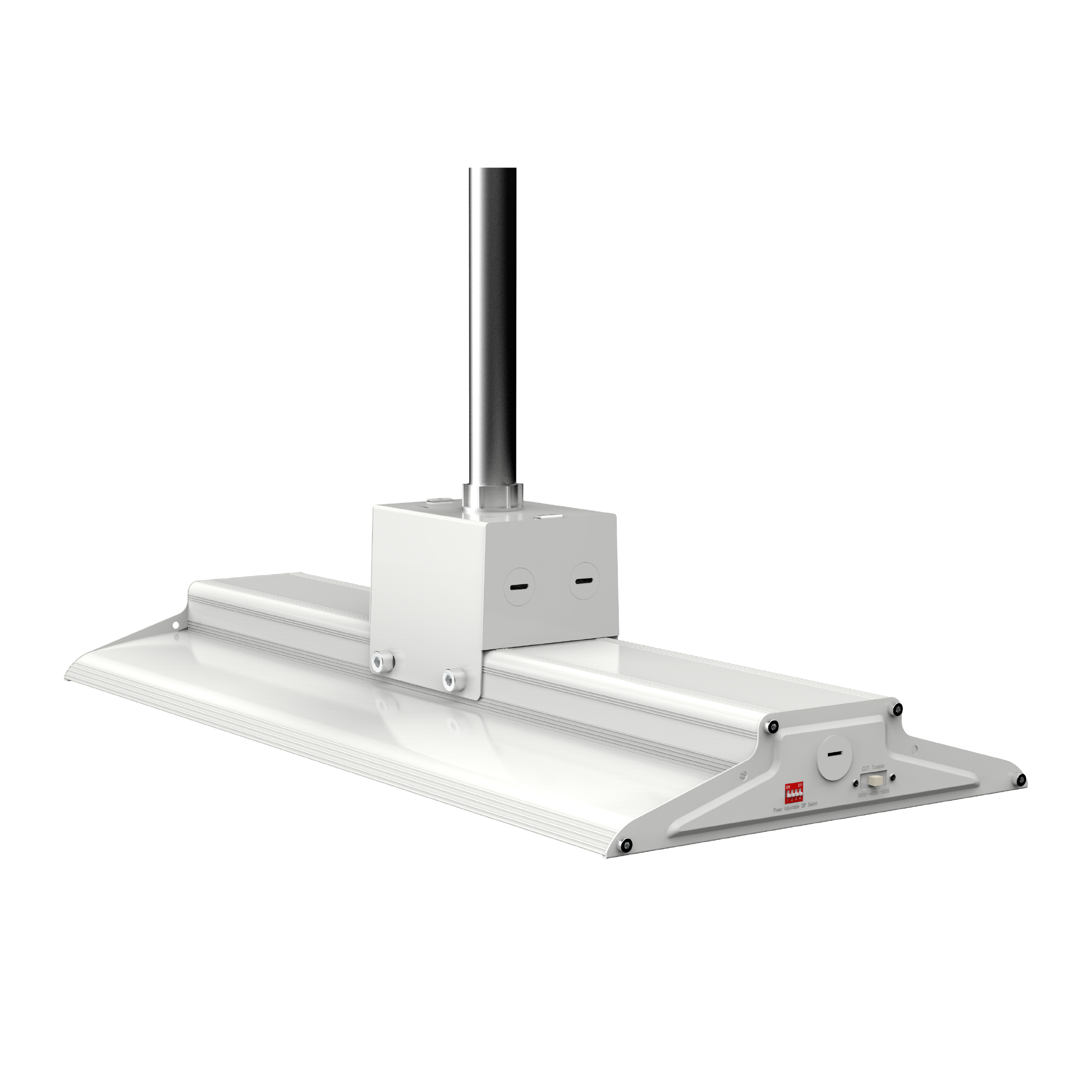

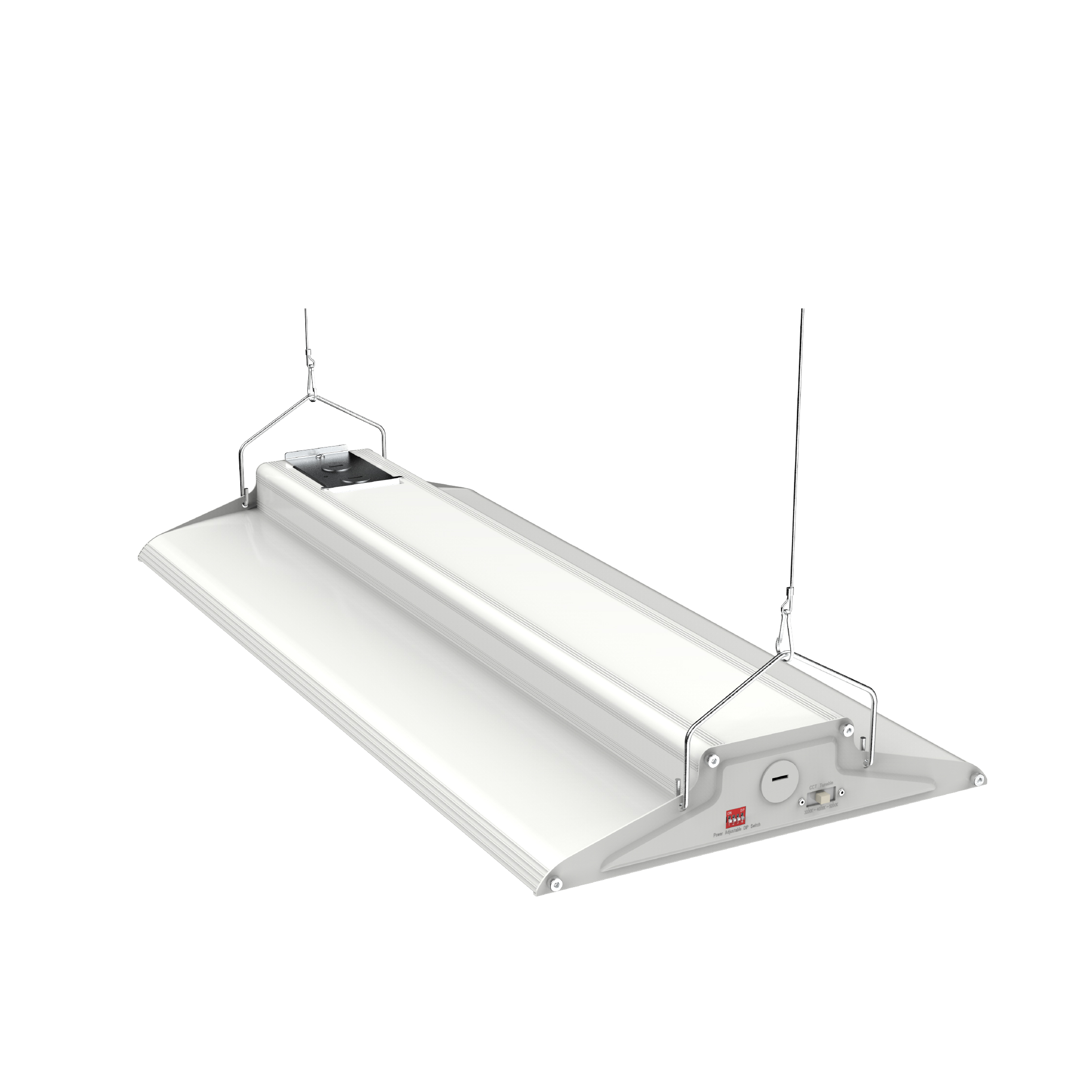

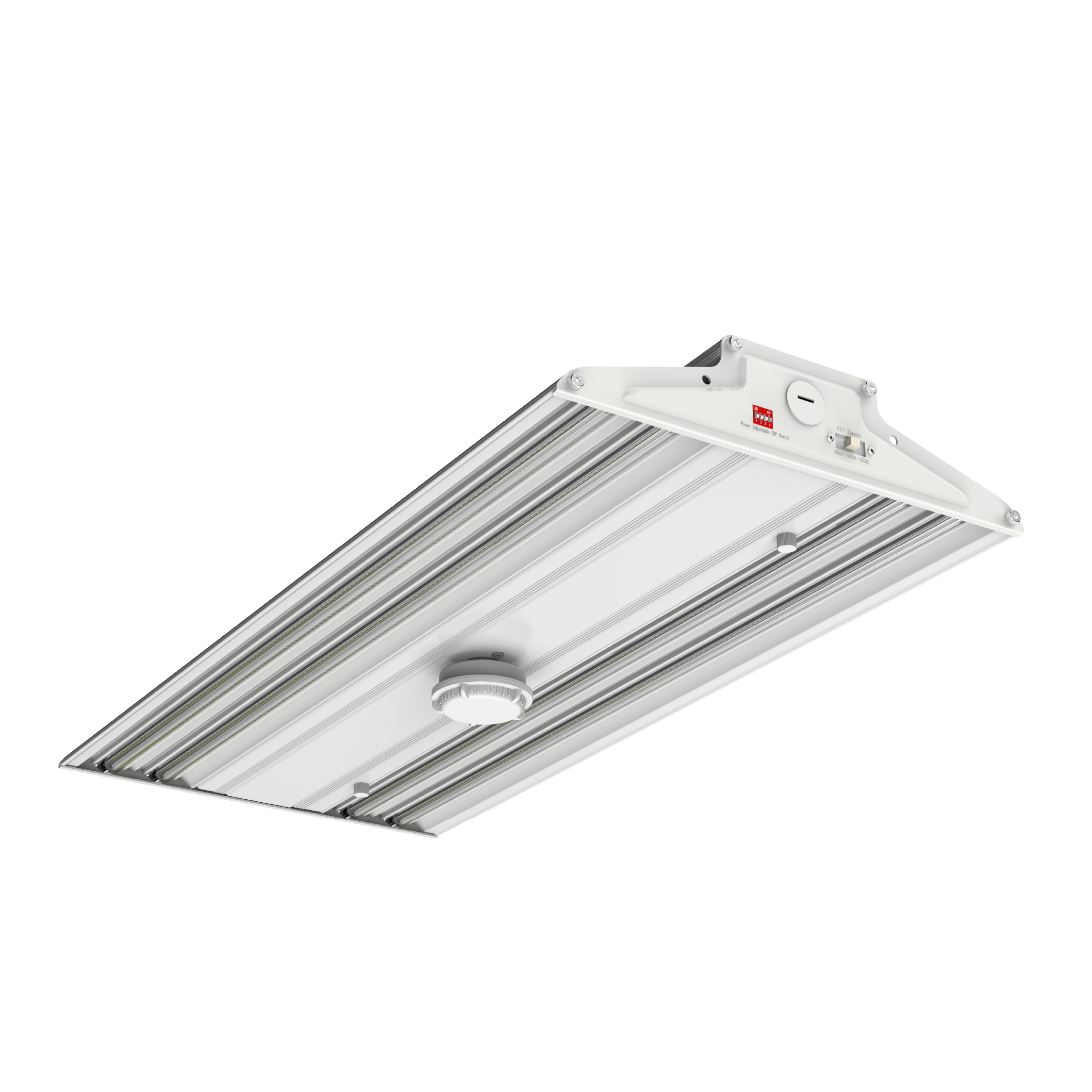

Linear High Bay
LH501
By True LED USA
LH501 is a high-performance LED Linear High Bay designed for large-scale industrial, commercial, and retail facilities. It features durable extruded aluminum housing, high efficacy up to 200 lm/W, and adjustable wattage and CCT options. Offering multiple beam optics, dimming, various voltage ranges, and optional sensors or emergency backup, LH501 ensures energy efficiency, ease of installation, and long-term durability.
Wattage
1FT: 40/50/60/80/100W(Selectable)
2FT: 100/120/150/180/200W(Selectable)
3FT: 120/150/180/200/240W(Selectable)
4FT: 240/280/300/350/400W(Selectable)
Lumens
~80,000lm
Efficacy
170lm/W, 200lm/W (Optional)
Color Temperature
5000K
CRI
80+
Input Voltage
120-277V / 347-480V
Operating Temp
-40°F to +113°F
IP Rating
IP40
Mounting Type
Chain, Pendant
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
LH501
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

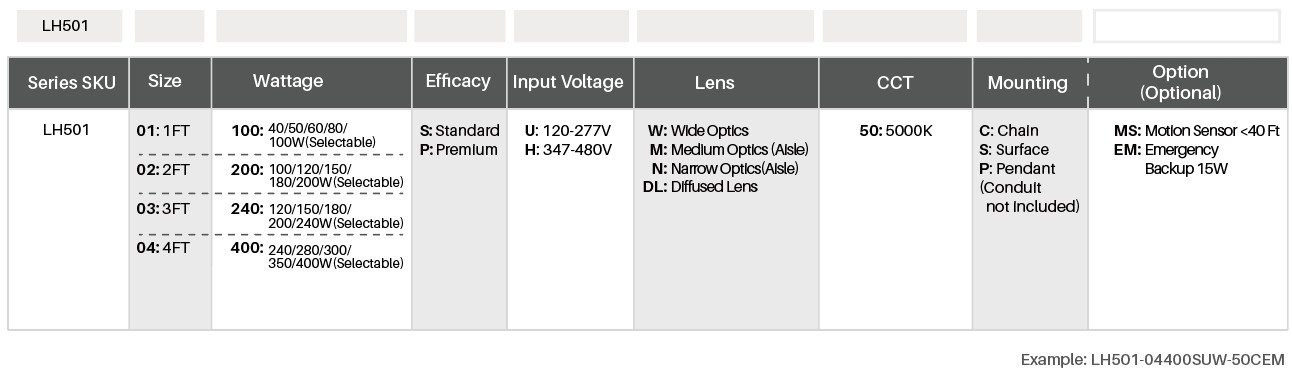

Ordering Information
