Linear High Bay
LH301
By True LED USA
The LH301 Linear High Bay Light is a linear LED luminaire that blends performance and versatility. Powered by Osram Optotronic LED driver and Samsung LEDs offer best-in-class lumen efficacy at ~160 lm/W and is offered in 6 lumen packages, along with a multitude of mounting, lens and control options.
Wattage
80W, 100W, 120W, 160W, 190W,
240W, 320W, 360W
Lumens
12,800~61,400lm
Efficacy
~170lm/W
Color Temperature
4000K / 5000K (Optional)
CRI
80+
Input Voltage
120-277V / 347-480V
Operating Temp
-22°F to +122°F
IP Rating
IP20
Mounting Type

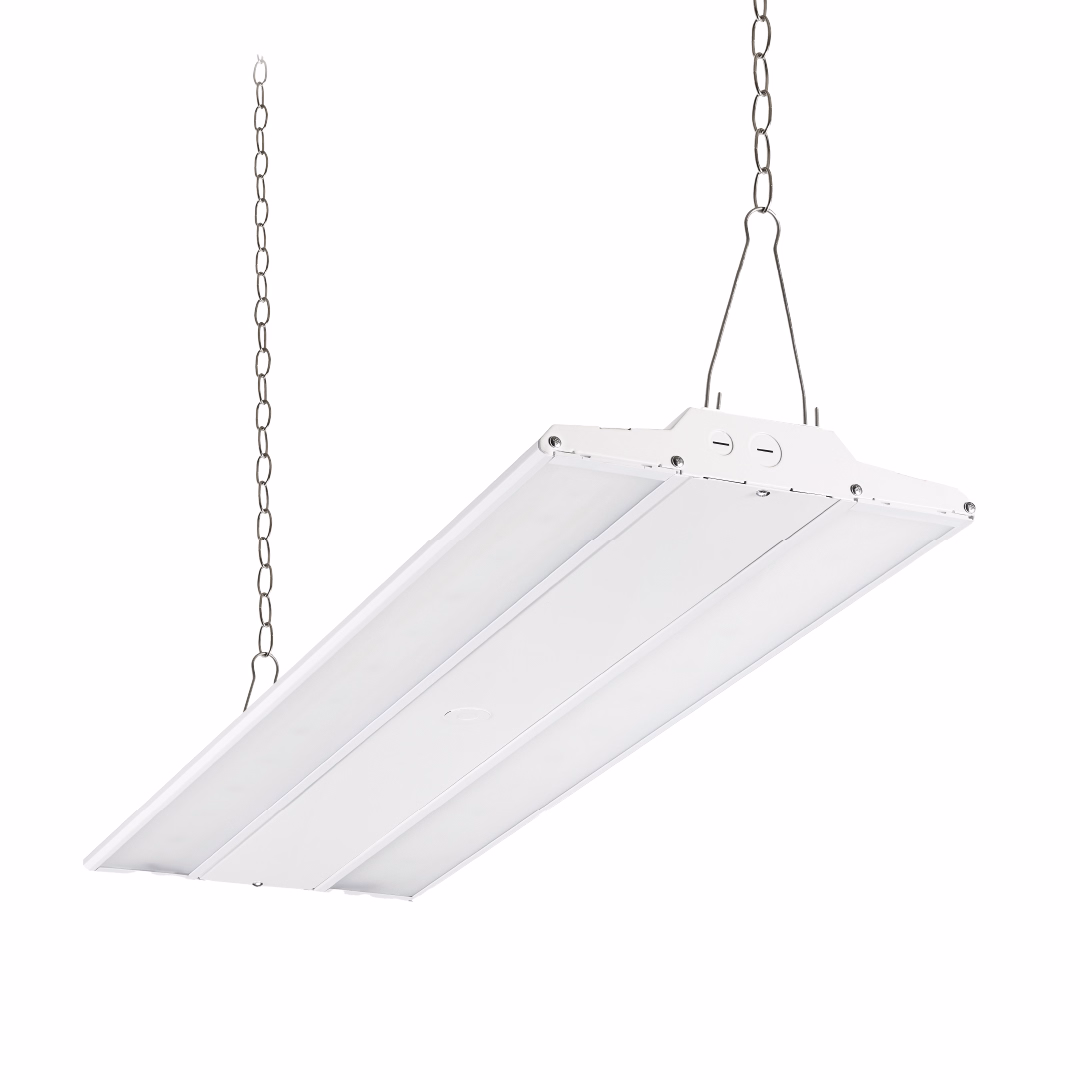

Chain / Pendant
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
LH301
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

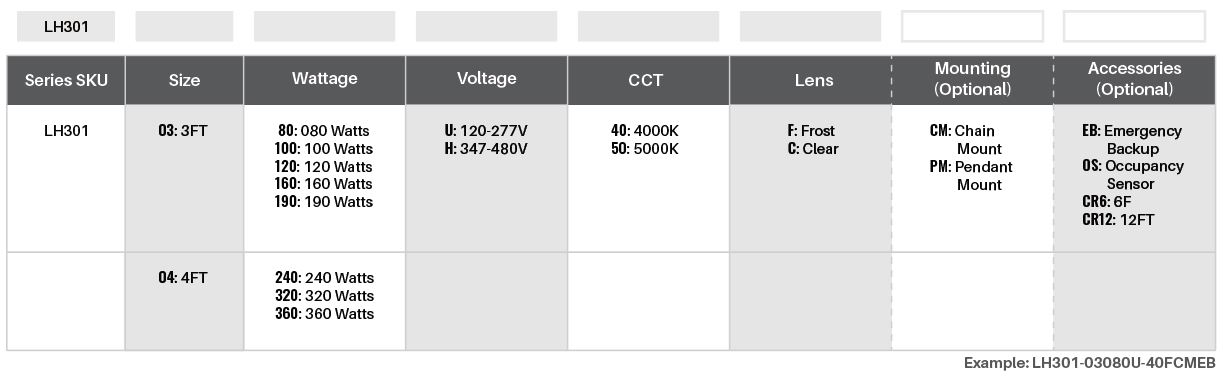

Ordering Information
