Linear High Bay
LH1306
By True LED USA
The LH1306 is a versatile LED Linear High Bay designed for warehouses, retail, and large indoor spaces, offering scalable lumen packages from 8,000 to 60,000 lumens. With on-site adjustable wattage and CCT (4000K/5000K), it provides flexibility for diverse lighting needs. Its rugged cold-rolled steel housing ensures durability, while prismatic, aisle, and narrow optics deliver optimal illumination. Optional sensors and mounting styles enhance adaptability, backed by a 5-year warranty.
Wattage
130W, 175W, 210W, 240W,
300W, 330W, 400W
Lumens
8,000~60,000lm
Efficacy
~175lm/W
Color Temperature
4000K / 5000K (Selectable)
CRI
70+
Input Voltage
120-277V / 347-480V
Operating Temp
-40°F to 122°F
IP Rating
-
Mounting Type
Chain / Surface / Pendant
Feature
6kV (Surge Protection)
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
LH1306
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

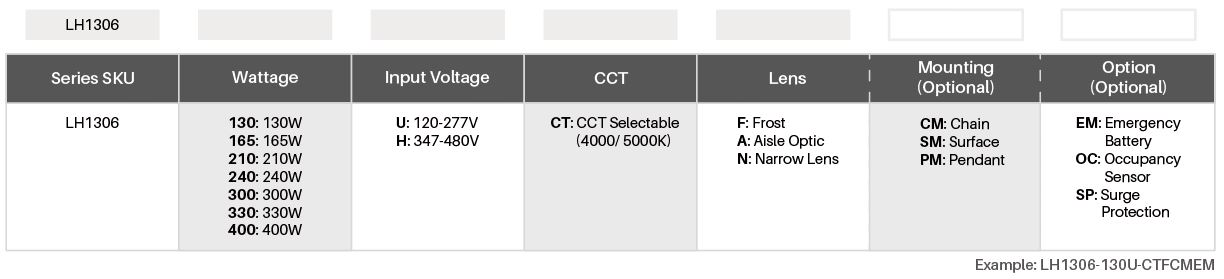

Ordering Information
