High Temperature Light
HT501
By True LED USA

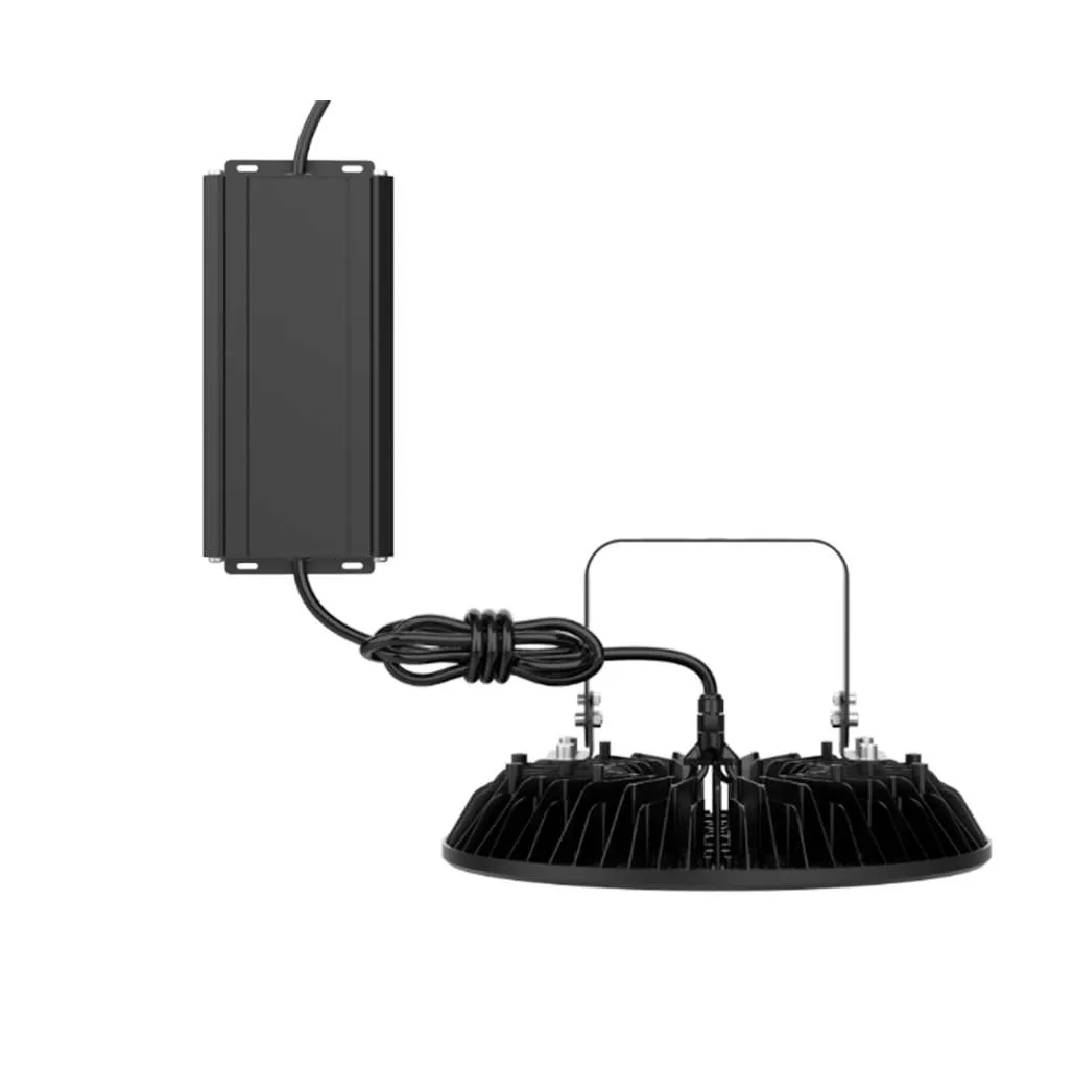

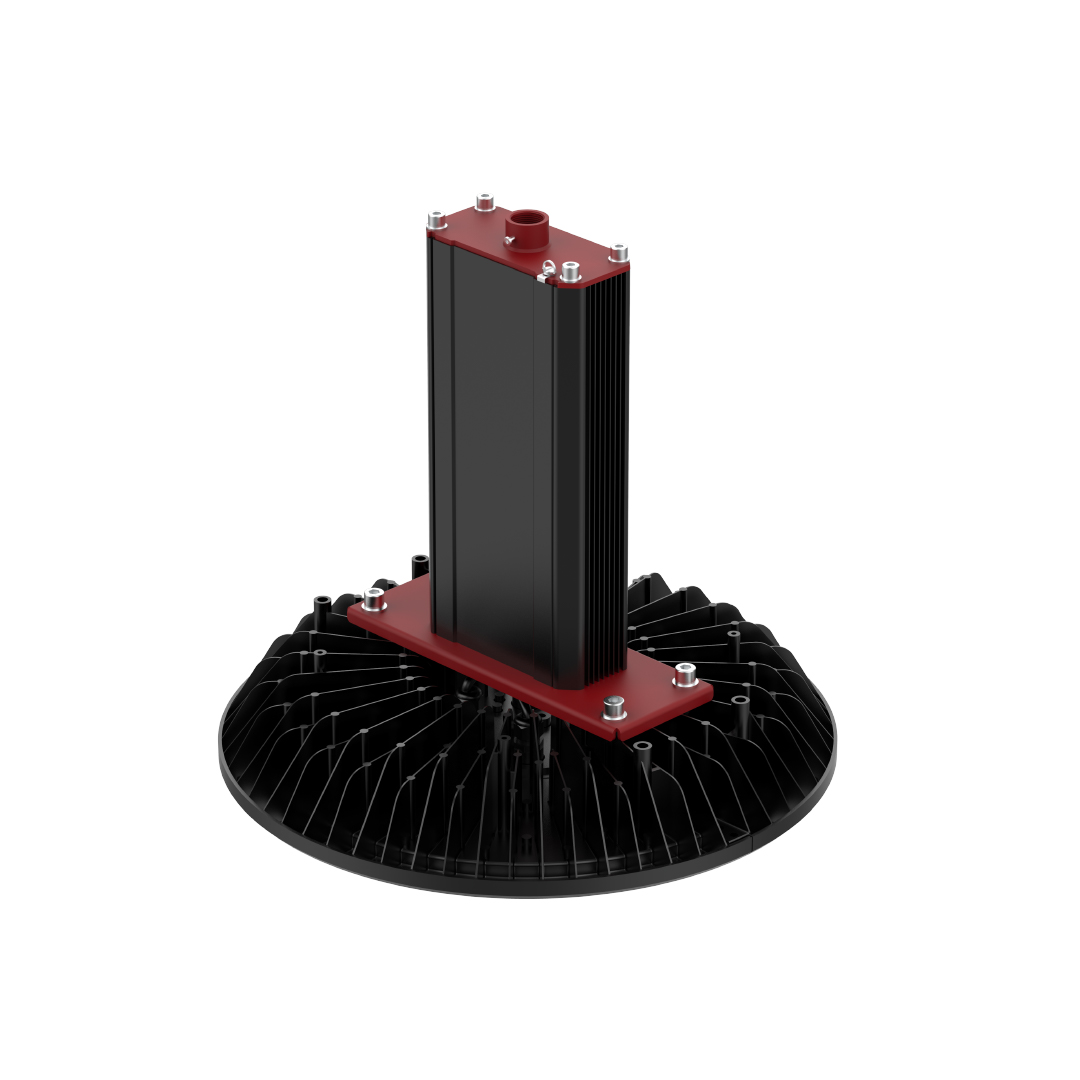

HT501 is a high ambient temperature LED high bay designed for industrial, commercial, and high-heat environments. With excellent heat dissipation, premium aluminum housing, and multiple optics/lens options, it delivers up to 70,000 lumens with efficacy up to 180 lm/W. Compatible with advanced dimming, sensor, and wireless control systems, HT501 provides reliable performance in harsh environments, operating up to 176°F.
Wattage
100W / 150W / 200W / 300W
Lumens
Efficacy
170-180lm/w
Color Temperature
3000K / 4000K / 5000K (Optional)
CRI
70+ / 80+
Input Voltage
120–277 VAC
Operating Temp
–40°F to +176°F
IP Rating
IP65
Mounting Type
Hook Mount, Pendant Mount, 1-1/2″ NPT Pipe Mount
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
HT501
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
