Downlight
DL834
By True LED USA

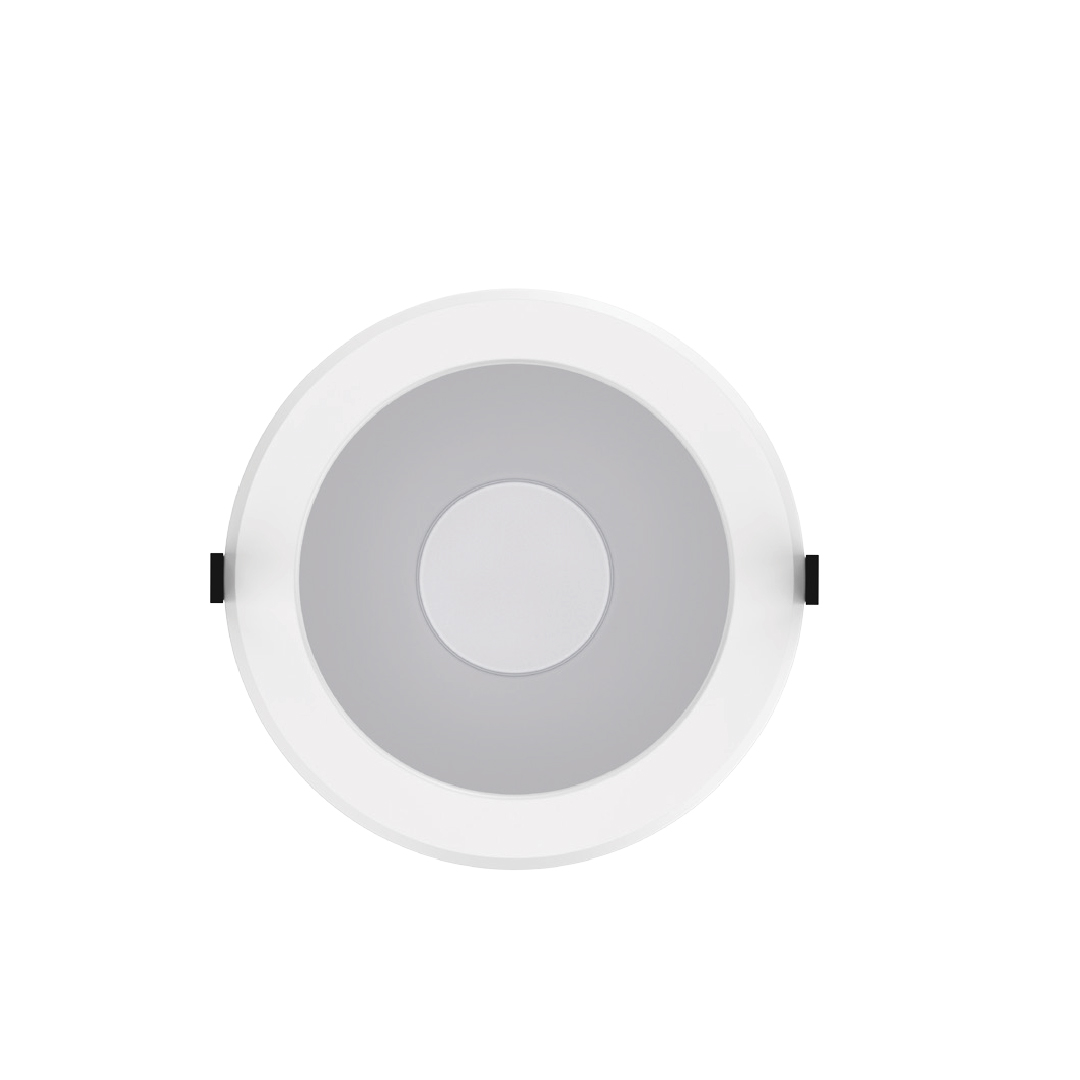

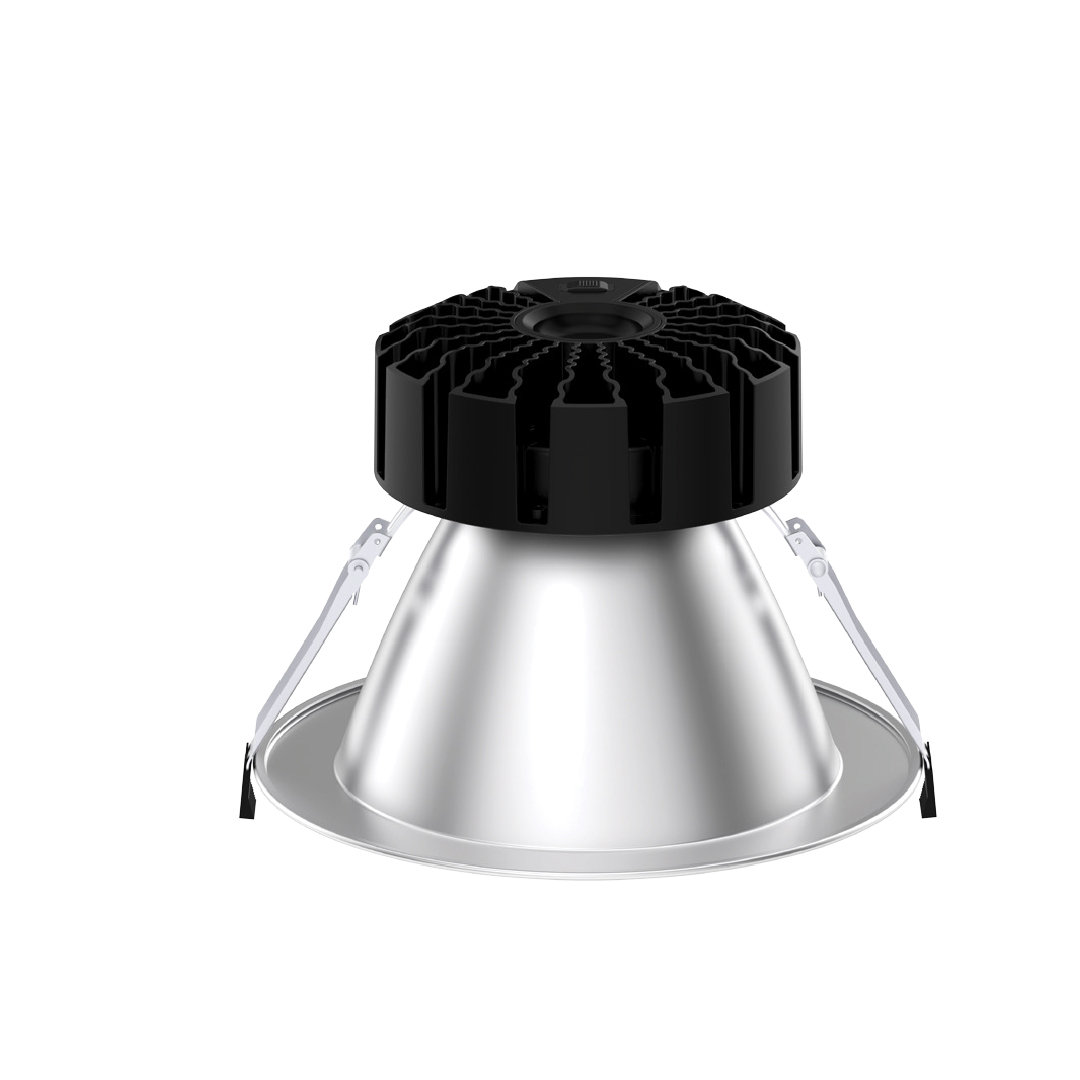

DL834 module downlight, is available in sizes 4, 6, 8, and 10 inches. Choose from beam angles of 50°/70° for 4inch and 6inch, and 40°/60° for 8inch and 9.5inch. With high lumen output, adjustable CCT, power,and dimming capabilities, it offers 100lm/w efficiency. The wet location design ensures versatility across various applications.
Wattage
10W, 15W, 20W, 30W,
40W, 50W, 60W
Lumens
1,000~6,200lm
Efficacy
100lm/W
Color Temperature
3000K / 4000K / 5000K (Selectable)
CRI
80+ / 90+
Input Voltage
120-277V
Operating Temp
-4 to +104°F
IP Rating
IP54
Mounting Type
Ceiling
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
DL834
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

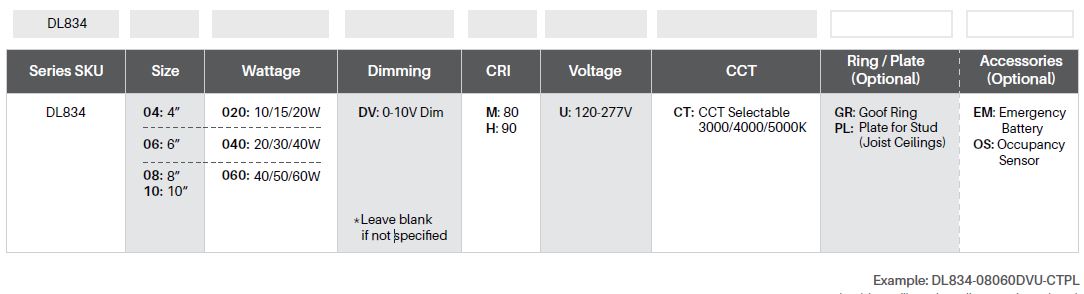

Ordering Information
