Downlight
DL806
By True LED USA

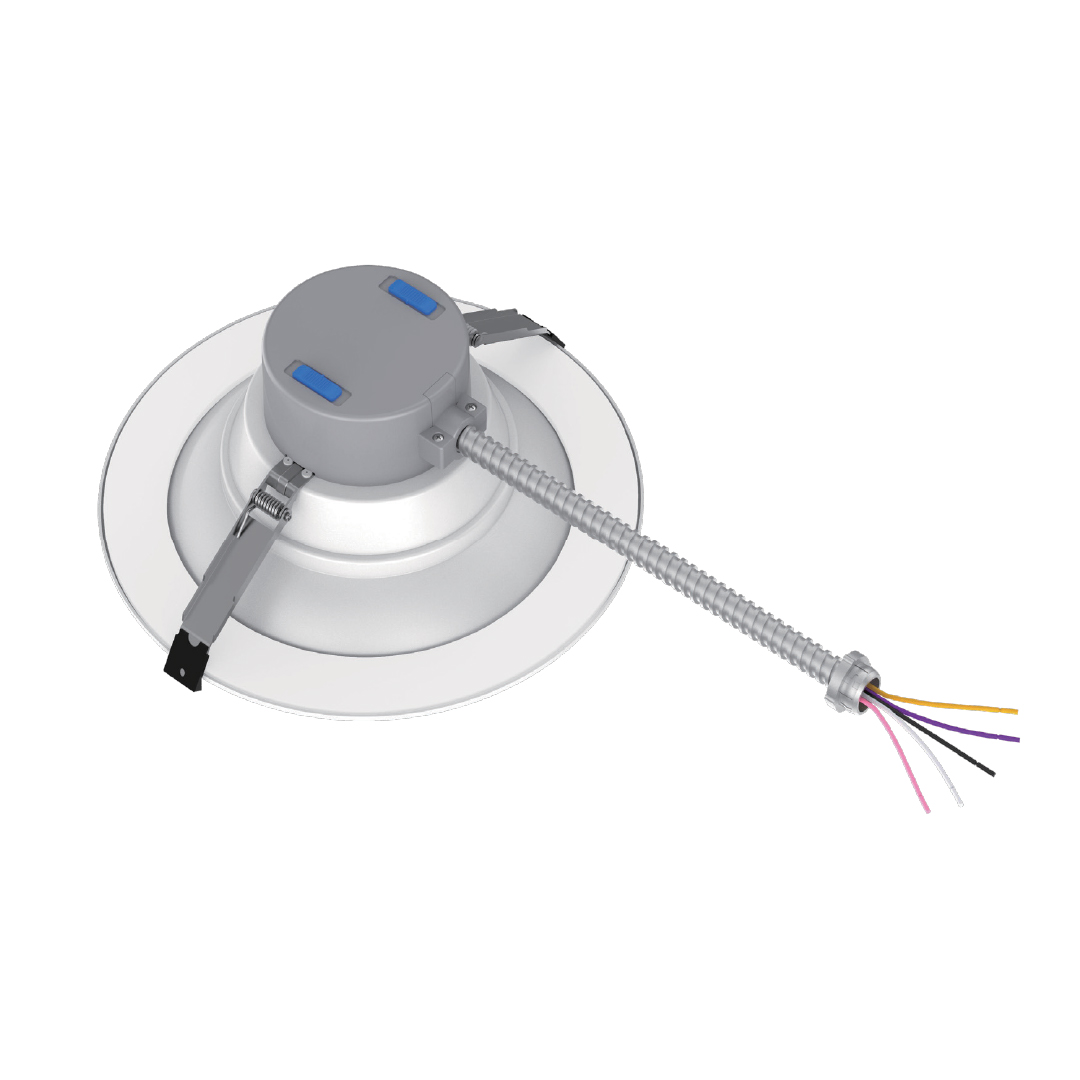

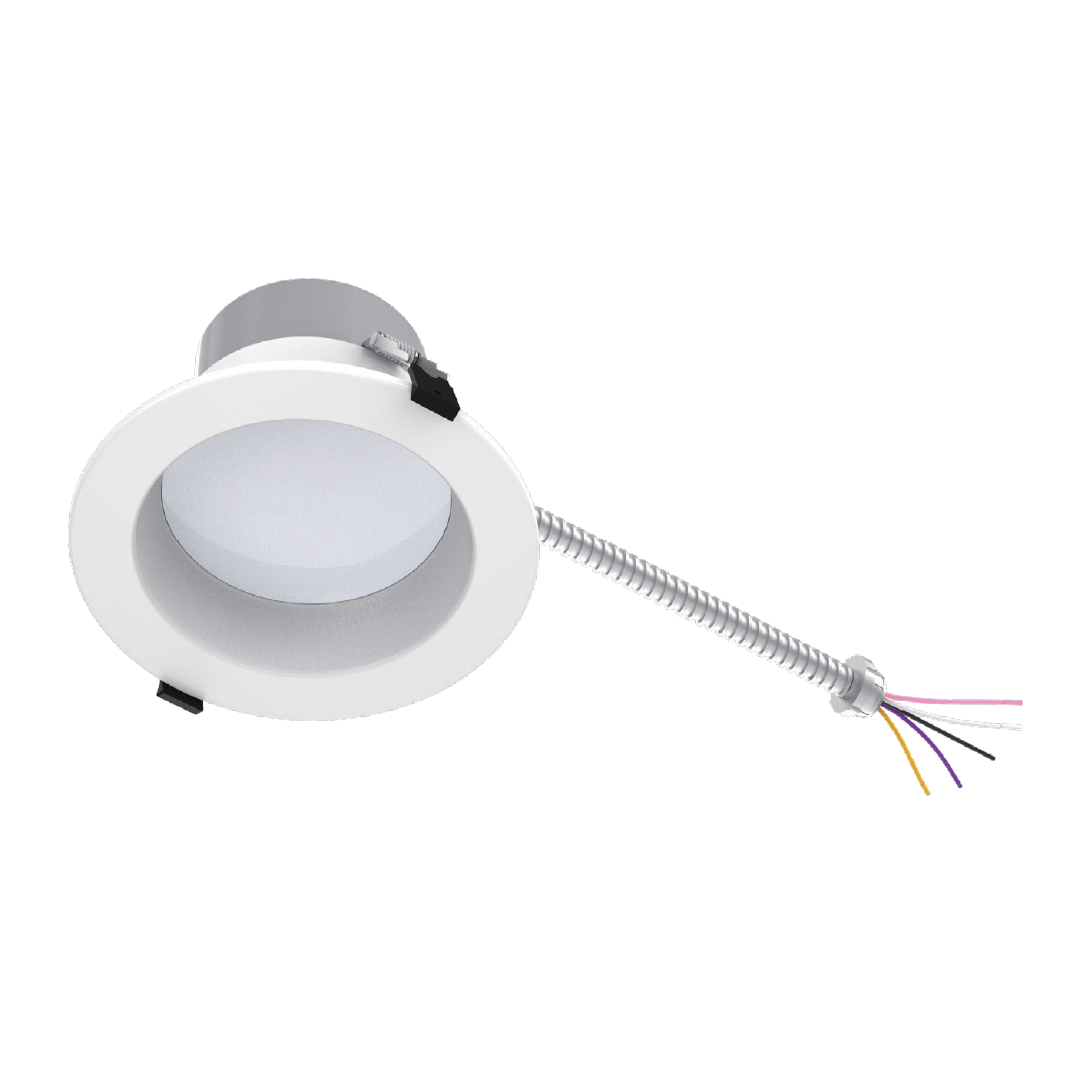

DL806 is a professional LED downlight designed for commercial and residential applications. With multiple wattage and size options, it provides high lumen output and excellent efficacy up to 100 lm/W. Featuring advanced dimming compatibility, uniform light distribution, and long lifetime, DL806 is ideal for offices, retail stores, hotels, and residential lighting projects.
Wattage
7W / 10W / 12W / 18W / 25W / 30W (Selectable)
Lumens
560–3,000 lm
Efficacy
-100 lm/W
Color Temperature
2700K / 3000K / 4000K / 5000K (Selectable)
CRI
80+ / 90+
Input Voltage
120-277V / 120-347V
Operating Temp
–4°F to +104°F
IP Rating
IP44
Mounting Type
Recessed
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
DL806
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
