Downlight
DL805
By True LED USA

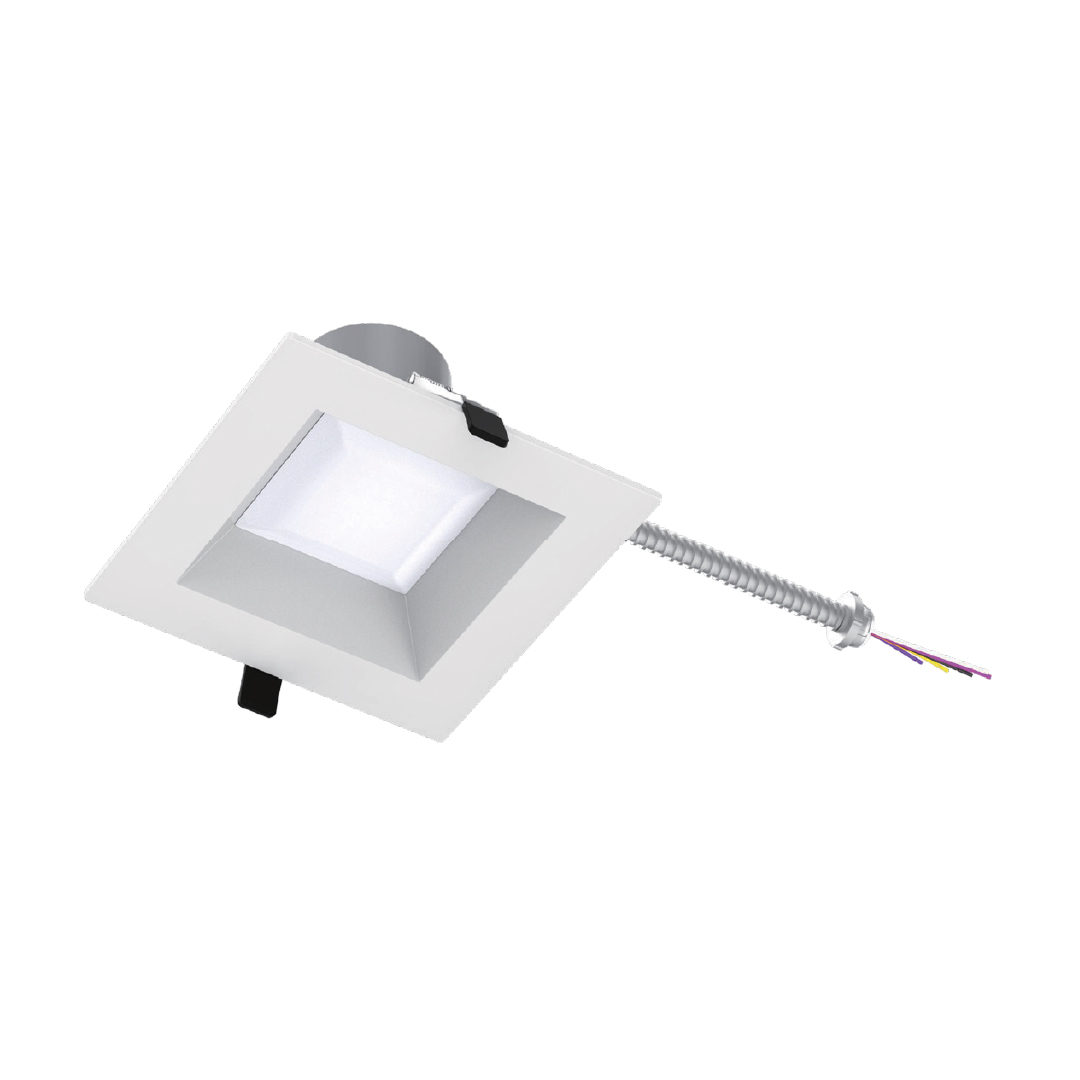

DL805 is a commercial square recessed downlight designed for retrofit and new construction applications. With 5 selectable wattages (12W–35W) and 5 CCT options (2700K–5000K), it offers maximum flexibility and SKU reduction. Featuring high efficiency at 105 lm/W, deep reflector design for low glare, and durable ADC12 aluminum die-casting housing, DL805 delivers reliable, flicker-free illumination with long lifespan and easy recessed installation.
Wattage
6": 12W / 16W / 22W / 26W / 30W
8": 16W / 22W / 26W / 30W / 35W
Lumens
~3,675 lm
Efficacy
~105 lm/W
Color Temperature
2700K / 3000K / 3500K / 4000K / 5000K (Selectable)
CRI
80+ / 90+
Input Voltage
120–277V
Operating Temp
–4°F to +113°F
IP Rating
IP54
Mounting Type
Recessed
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
DL805
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

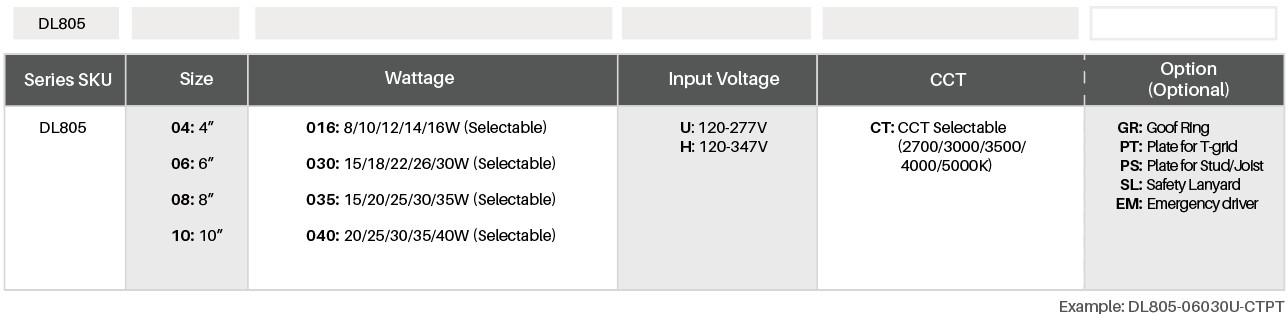

Ordering Information
