Downlight
DL802
By True LED USA

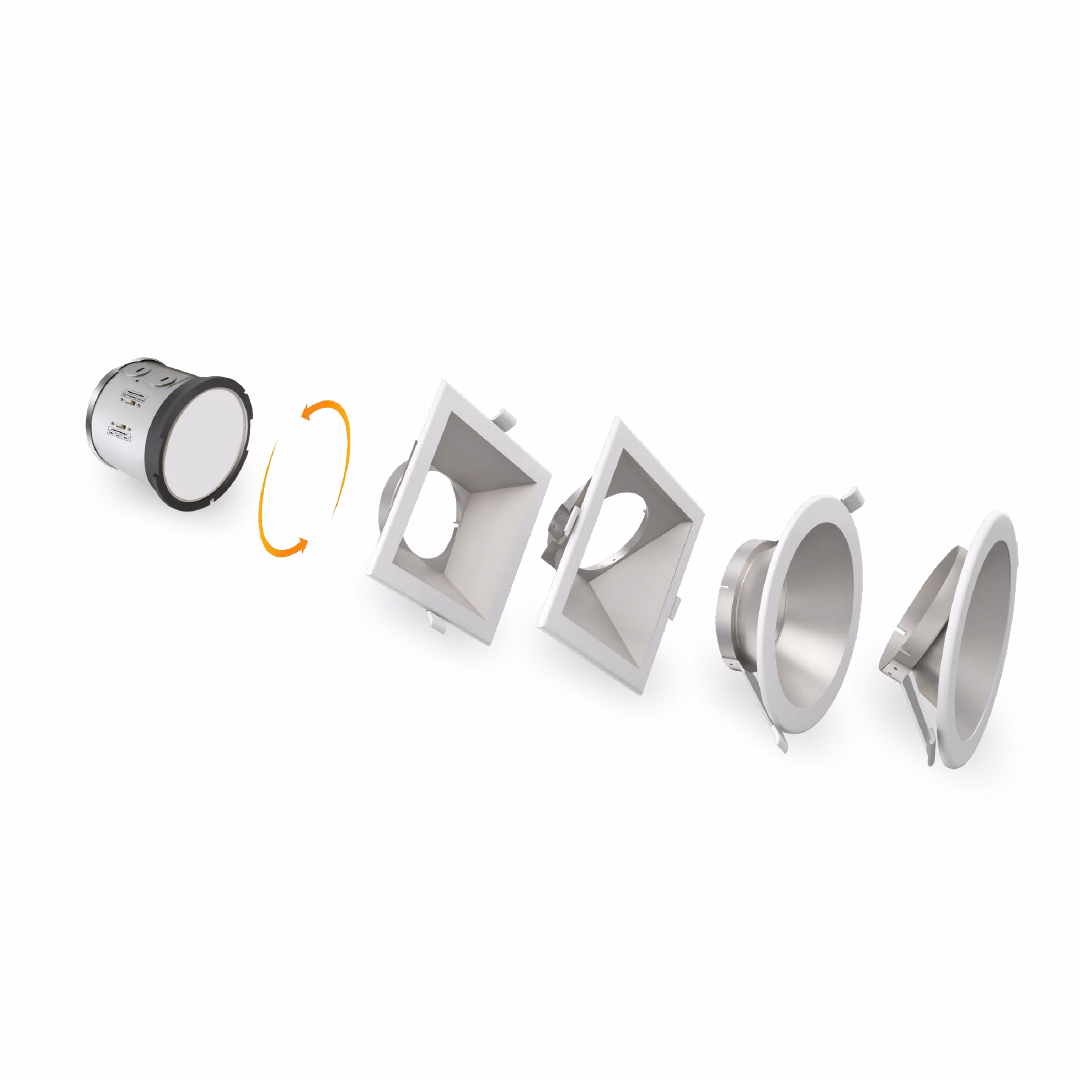

The DL 802 Split J-Box Downlights offer versatile lighting solutions, available in 4", 6", 8", and 10" sizes with power options of up to 60W. Featuring an innovative separable design between the junction box and trim, they provide enhanced flexibility for various installations. The adjustable butterfly clips ensure a hassle-free, secure fit, while the integral junction box eliminates the need for traditional recessed housing, allowing direct ceiling mounting in new constructions. Designed for easy installation, the fixture simply connects to a wall switch without requiring a can, bulb, or additional labor. Engineered for recessed applications, these downlights are ideal for commercial and public spaces, enhancing the ambiance in shopping malls, hospitals, airports, hotel lobbies, and more.
Wattage
10/15/20W (Selectable)
27/34/40W (Selectable)
40/50/60W (Selectable)
Lumens
800~6,180lm
Efficacy
~109lm/W
Color Temperature
3000K / 3500K / 4000K (Selectable)
CRI
80+ / 90+
Input Voltage
120-277V
Operating Temp
-4 to +113°F
IP Rating
IP20
Mounting Type
Recessed
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
DL802
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
