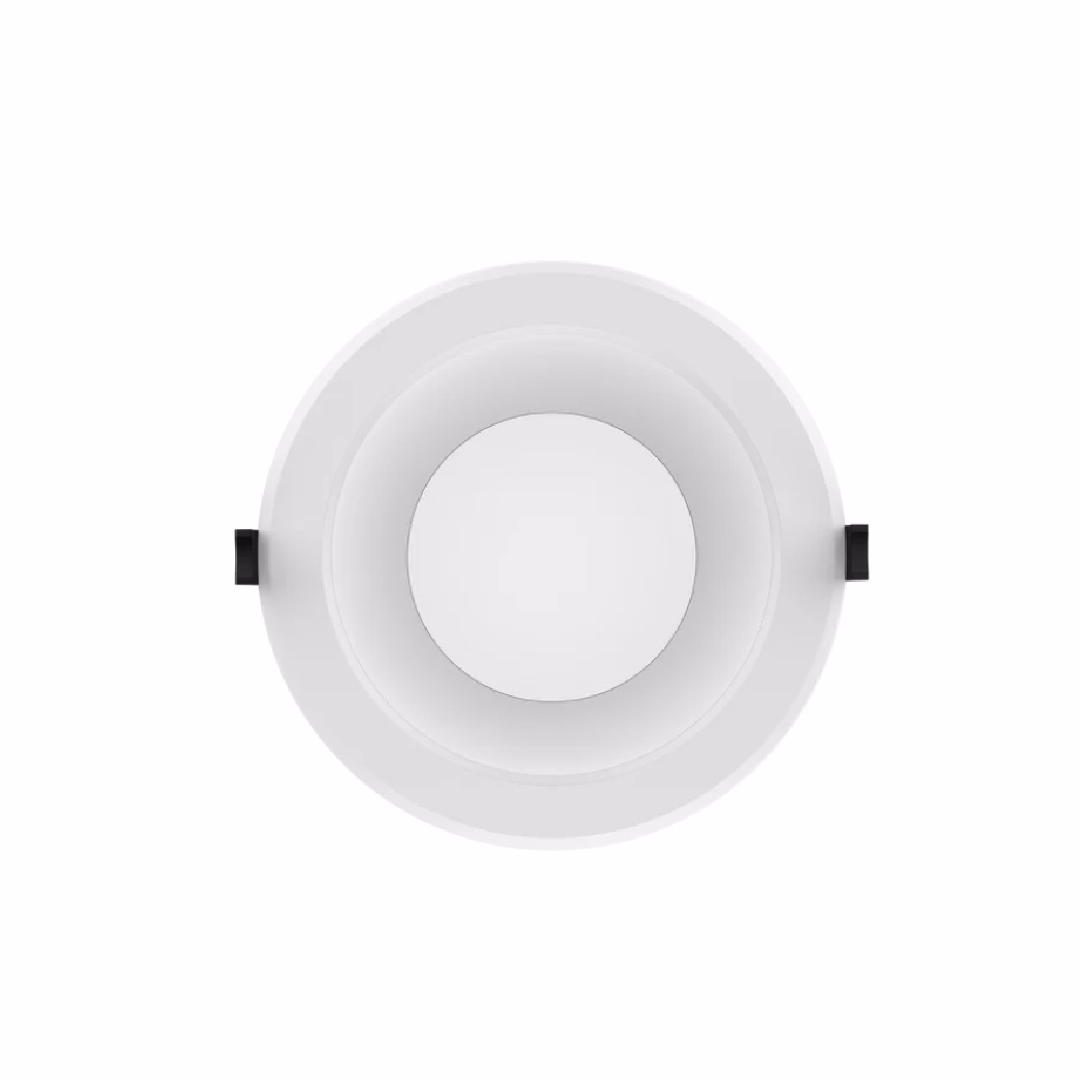

Downlight
DL801
By True LED USA
DL801 is a versatile LED downlight available in 4", 6", 8", and 10" sizes, featuring 5 selectable wattages and 5 CCT settings via DIP switch. With high efficacy up to 110lm/W, wet location rating, and Type IC compliance, it offers flexibility for new construction, renovation, and retrofit projects. Two trim styles (Bevel and Baffle) and multiple lumen packages make it ideal for various commercial and residential lighting needs.
Wattage
4": 6/8/10/12/16W (Selectable)
6": 12/16/22/26/30W (Selectable)
8": 16/22/26/30/35W (Selectable)
10": 22/26/30/35/40W (Selectable)
Lumens
630-4,200lm
Efficacy
100–110lm/W
Color Temperature
2700K / 3000K / 3500K /4000K / 5000K (Selectable)
CRI
80+ / 90+
Input Voltage
120-277V
Operating Temp
-14 to +104°F
IP Rating
IP54
Mounting Type
Recessed
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
DL801
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
