Recessed Cleanroom Panel
CR402
By True LED USA

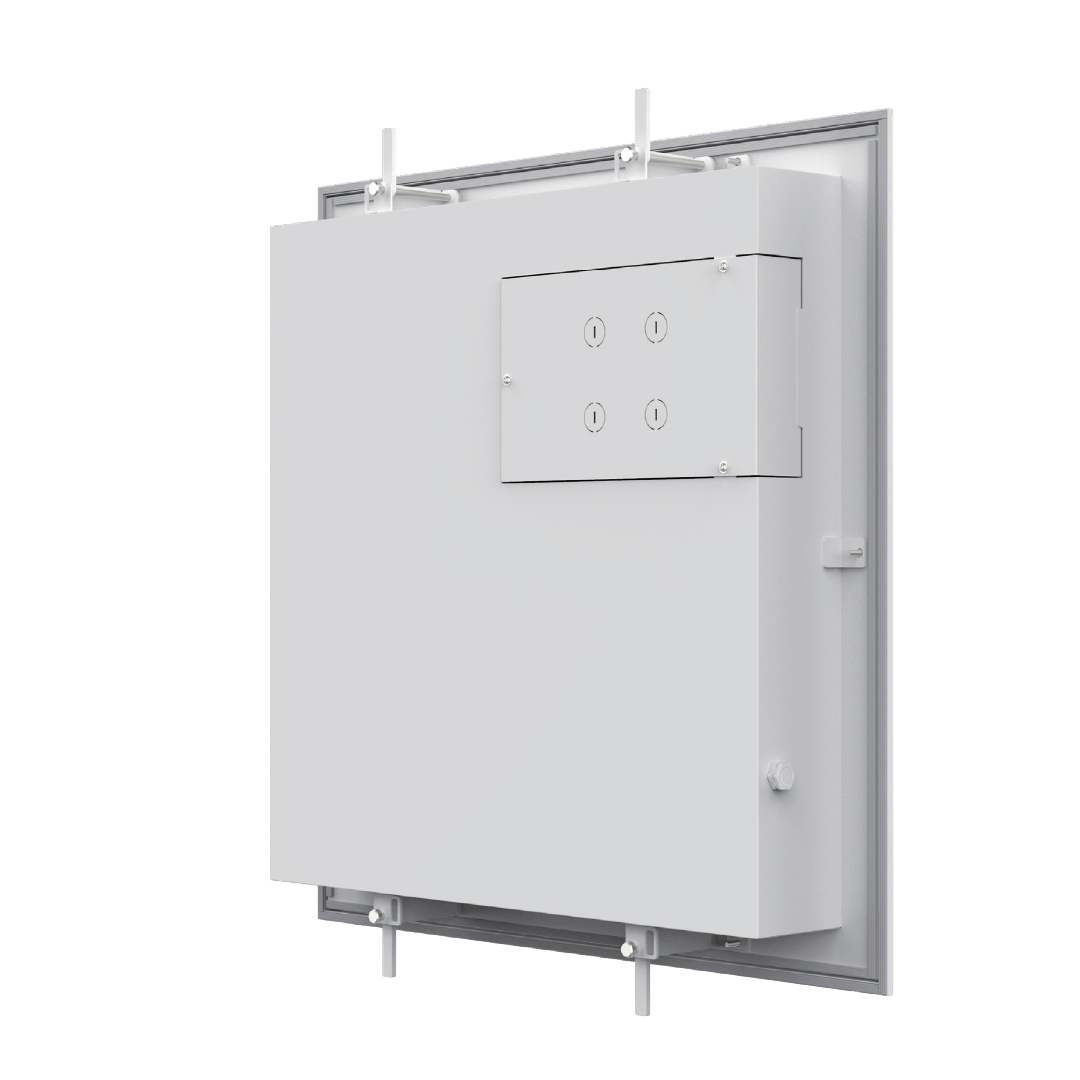

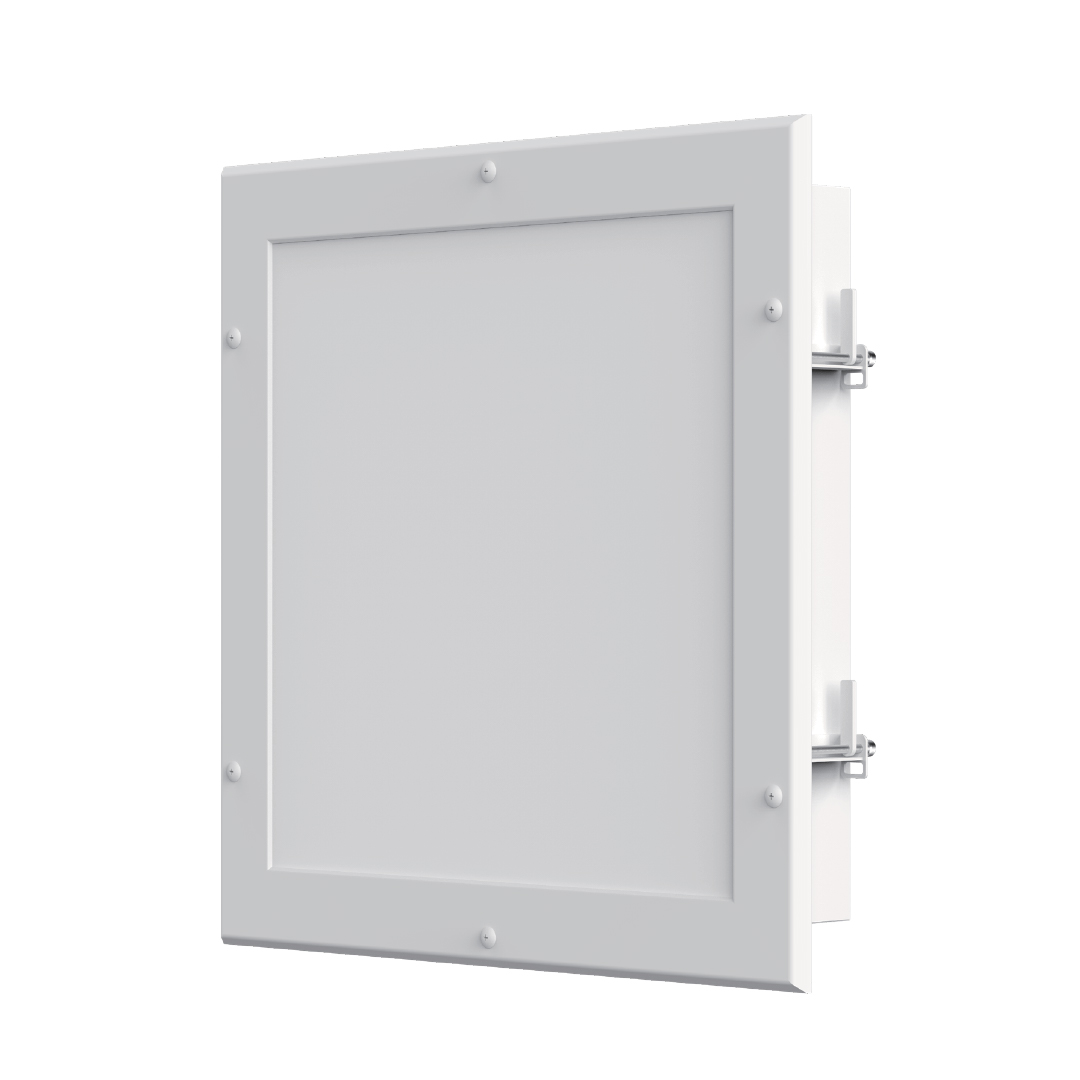

The CR402 Cleanroom LED Panel is a recessed luminaire designed specifically for cleanroom environments. Built with a fully welded aluminum frame, sealed construction, and IP65 protection, it ensures superior hygiene and durability. The front cover can be disassembled for easy maintenance, and the modular design allows for quick replacement of the light source and power supply. With selectable wattages, multiple diffuser options, and certifications for ISO Class 1–9 cleanrooms, CR402 provides reliable, efficient, and clean lighting performance.
Wattage
2x2: 25W / 30W / 40W (Selectable)
1x4: 25W / 30W / 40W (Selectable)
2x4: 30W / 40W / 50W (Selectable)
Lumens
2,750 – 6,250 lm
Efficacy
110 – 125 lm/W
Color Temperature
3500K / 4000K / 5000K (Selectable)
CRI
80+
Input Voltage
120-277V
Operating Temp
-13°F to +104°F
IP Rating
IP65
Mounting Type
Recessed mounting
Feature
IK03
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
CR402
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

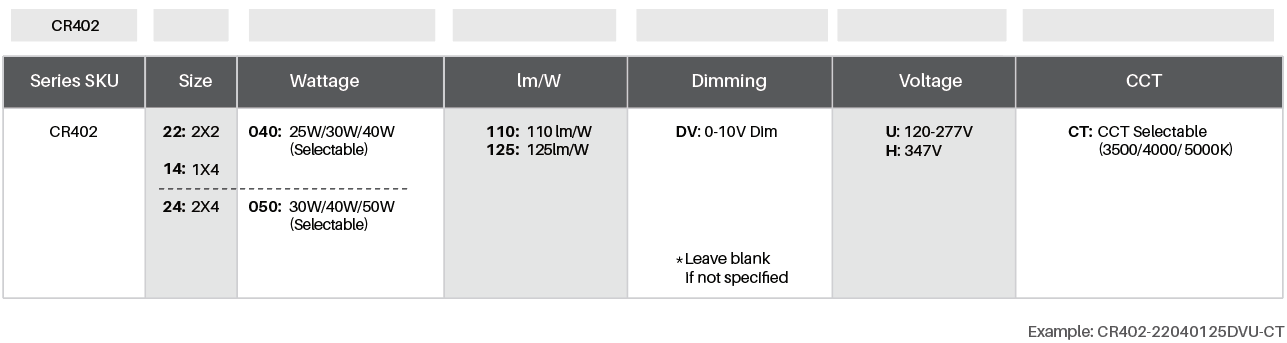

Ordering Information
