Explosion Proof
EXSN1104
By True LED USA

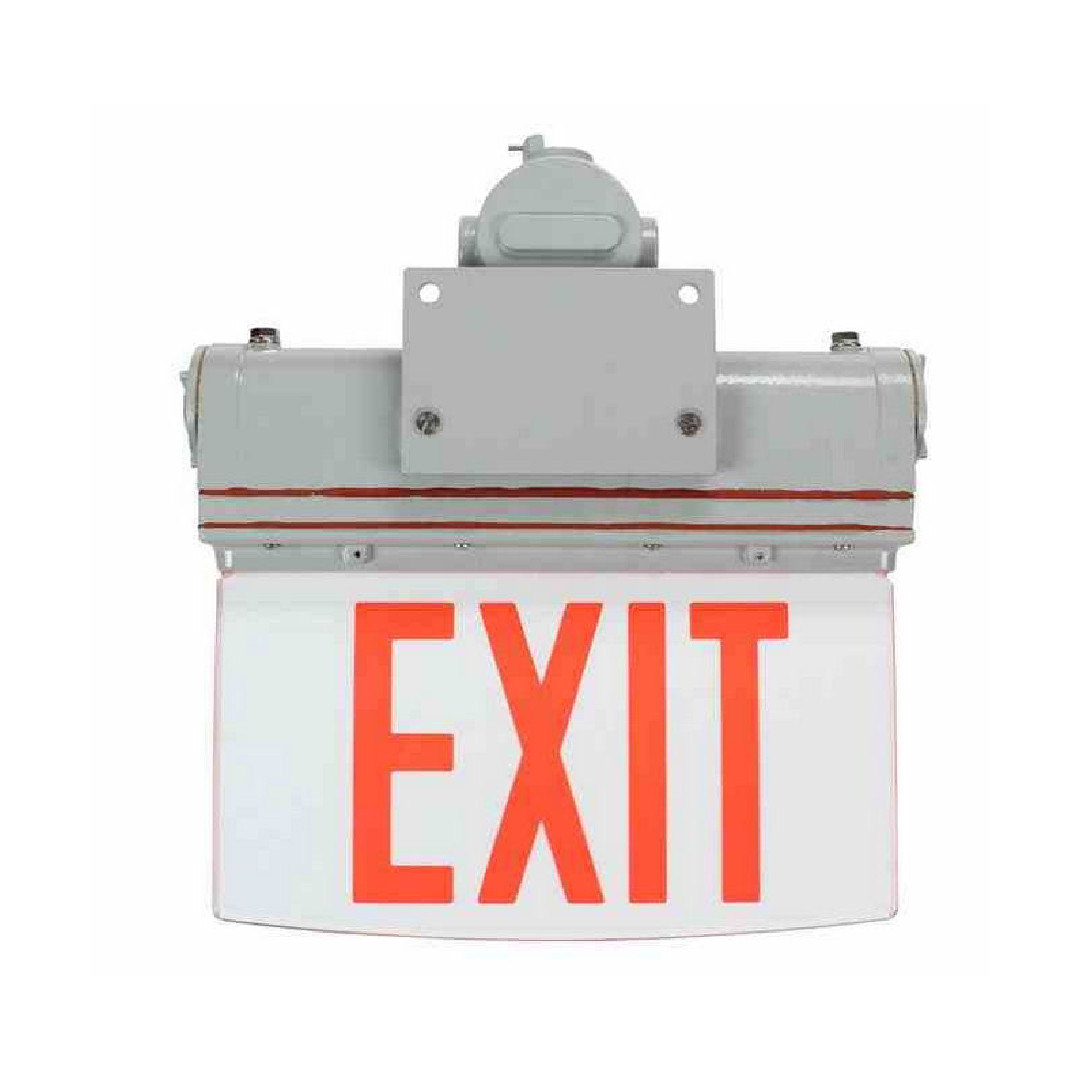

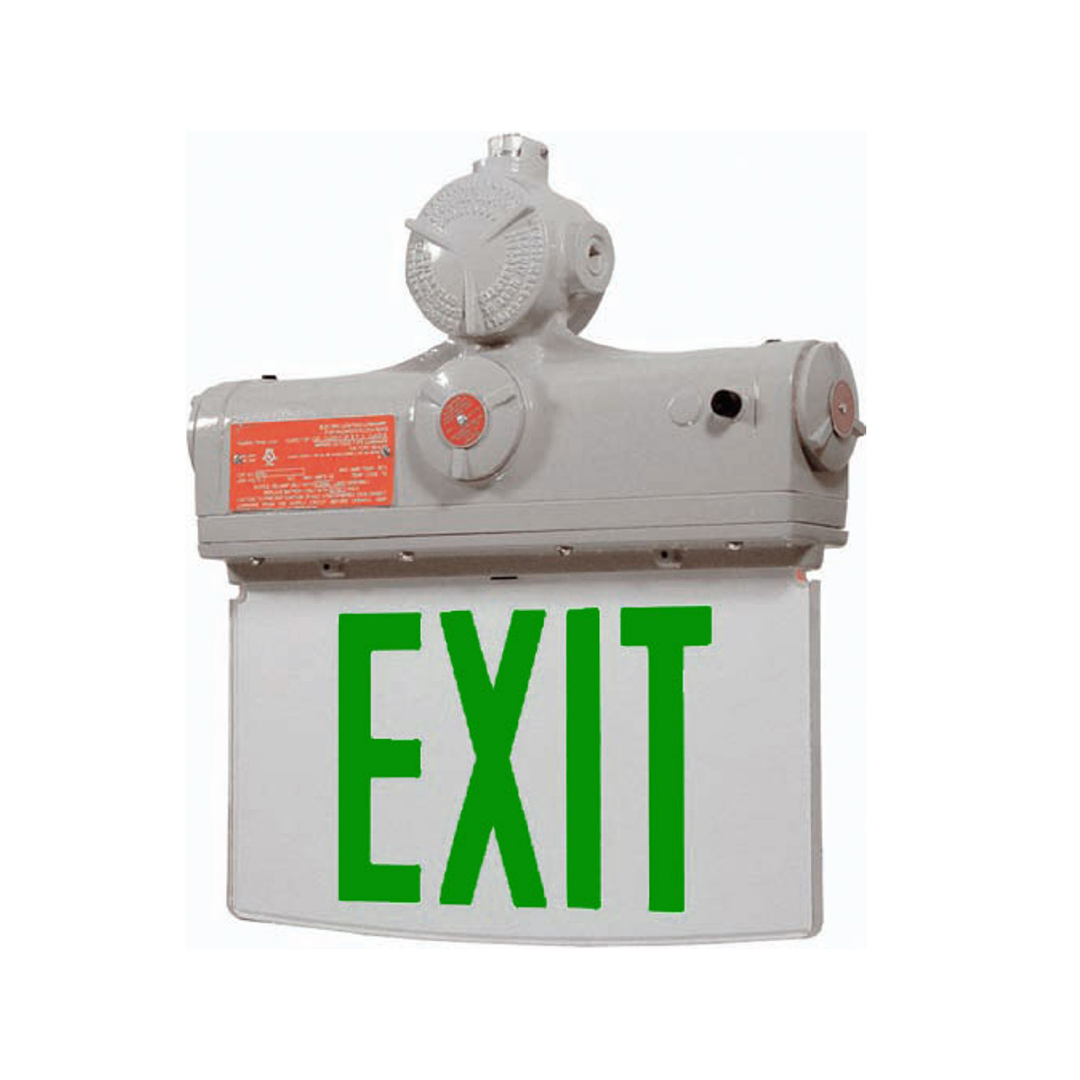

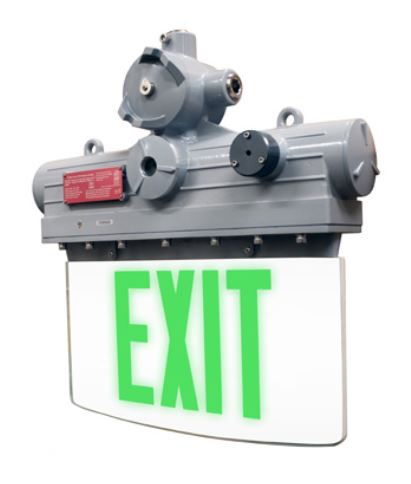

The EX1104 is an explosion-proof LED edge-lit exit light designed for hazardous locations. Features integral emergency battery backup with 3-hour operation, field replaceable LED circuit boards, and quick disconnects. Constructed with A356T6 aluminum body and one-piece silicone gasket for maximum durability. Suitable for Class I Division 1 Groups C & D, Class II Division 1 & 2 Groups E, F & G environments. Available in single or double-sided configurations with red or green LED options.
Wattage
Green: 2.3W (no battery), 3.0W (with battery)
Red: 1.5W (no battery), 2.5W (with battery)
Lumens
Efficacy
Color Temperature
CRI
Input Voltage
100-277V
Operating Temp
50°F to 104°F
IP Rating
IP65
Mounting Type

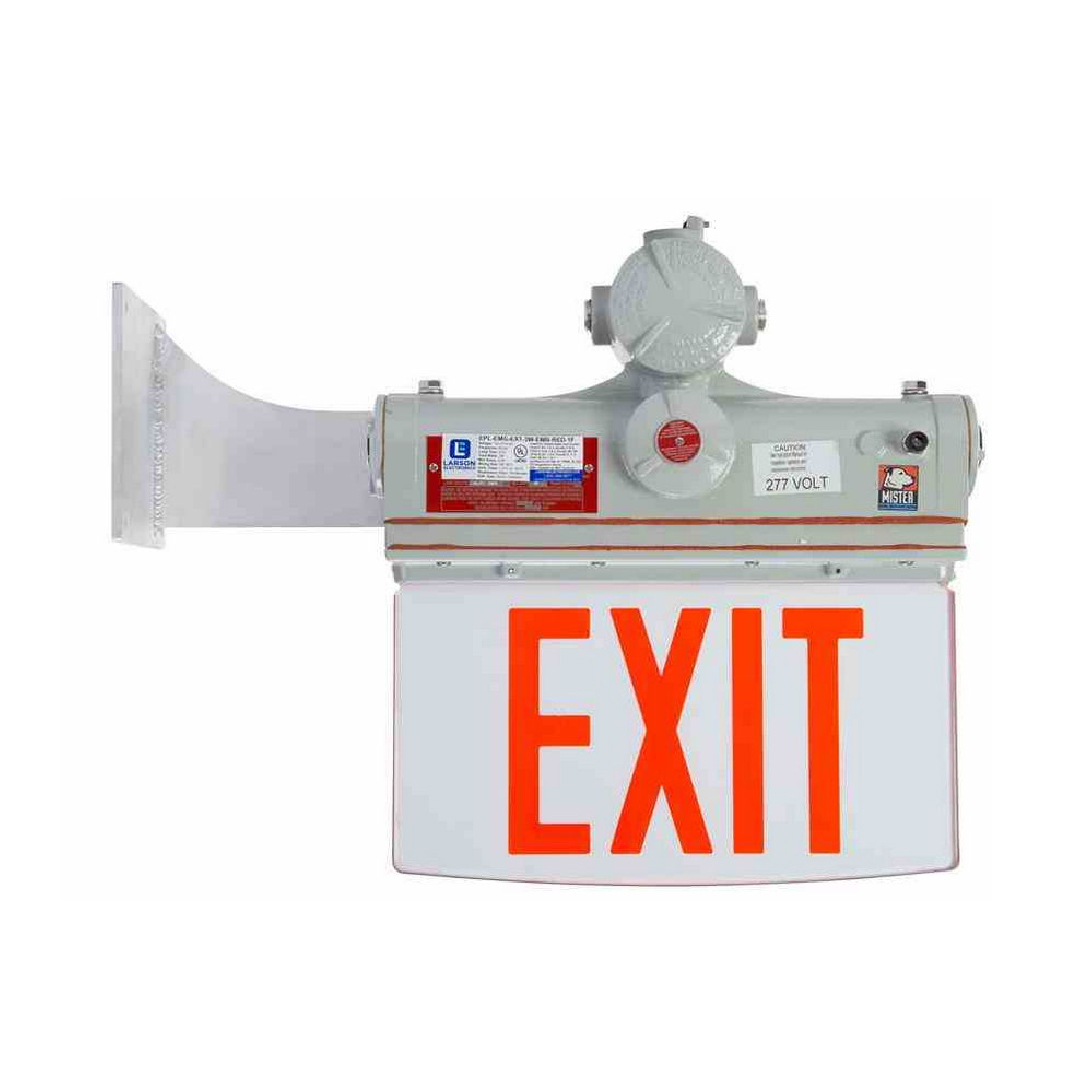

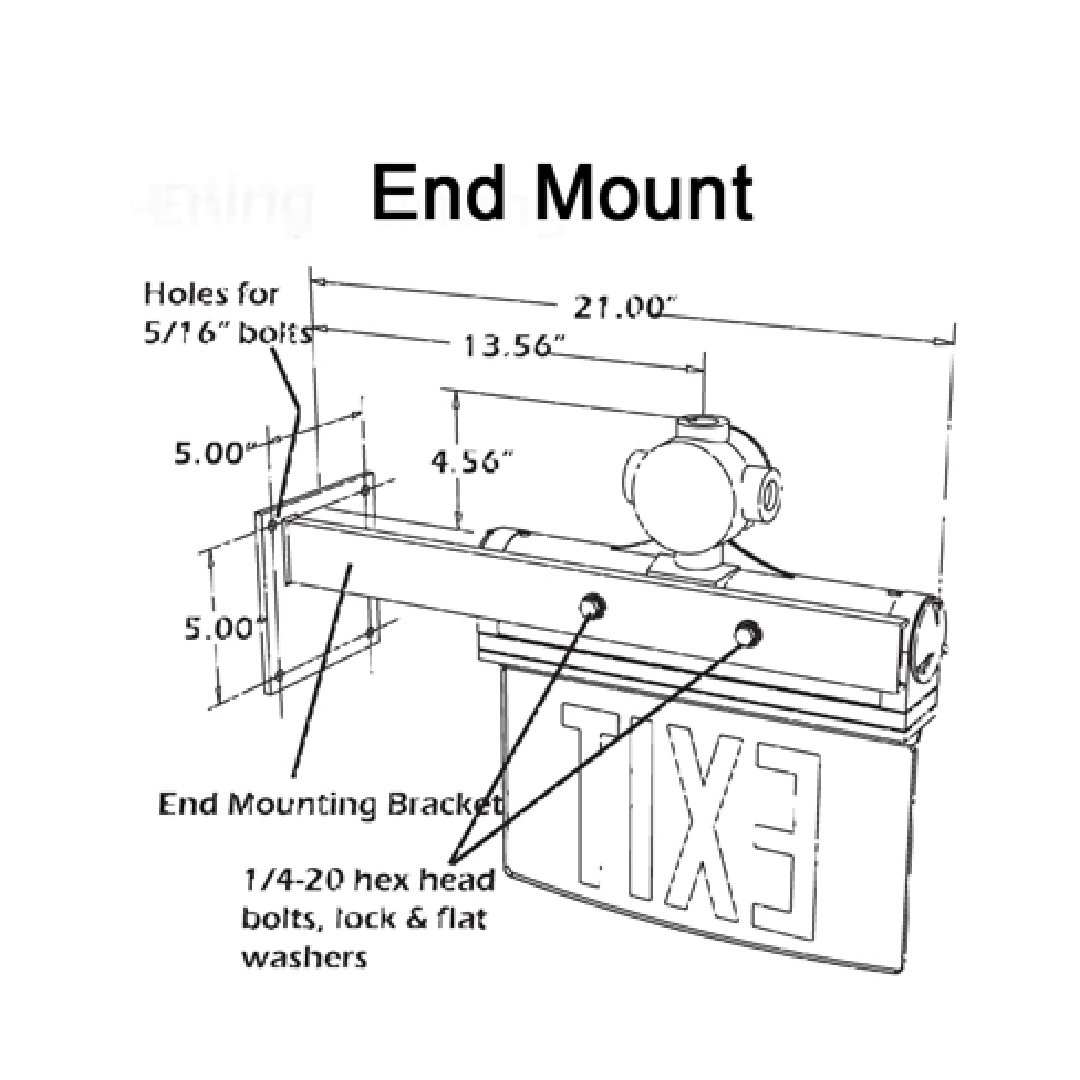

Wall(Pendant Mounting)/End Bracket
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
EXSN1104
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

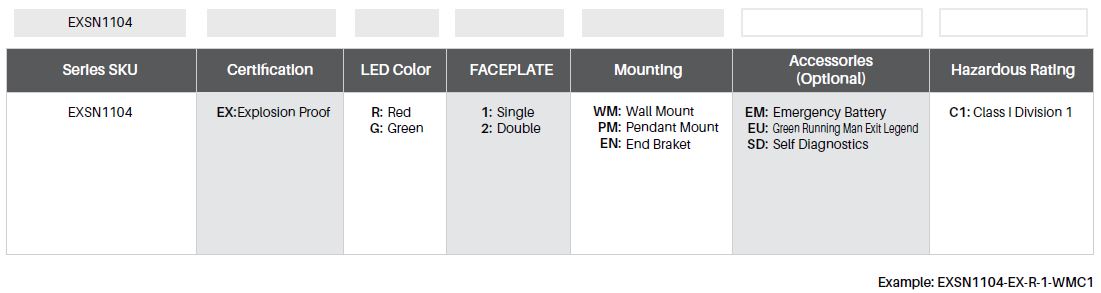

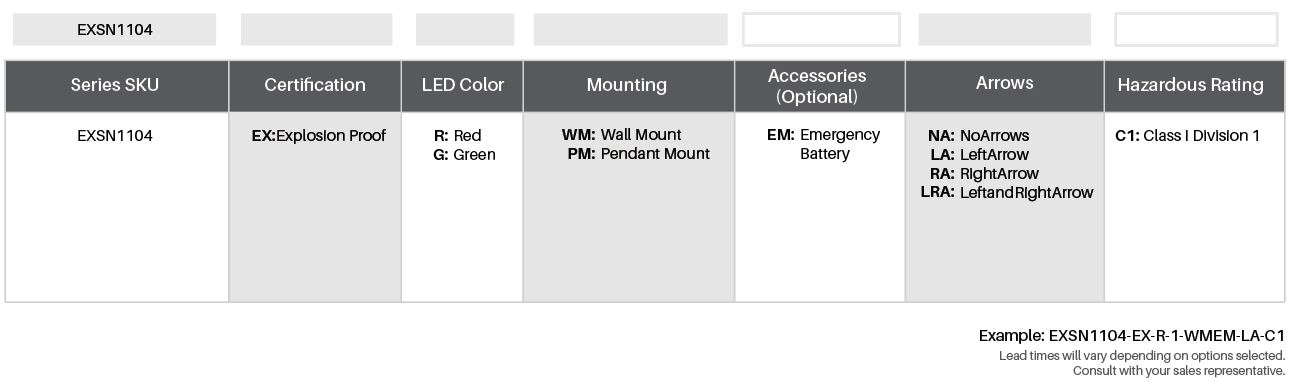

Ordering Information
