Explosion Proof
EX711
By True LED USA

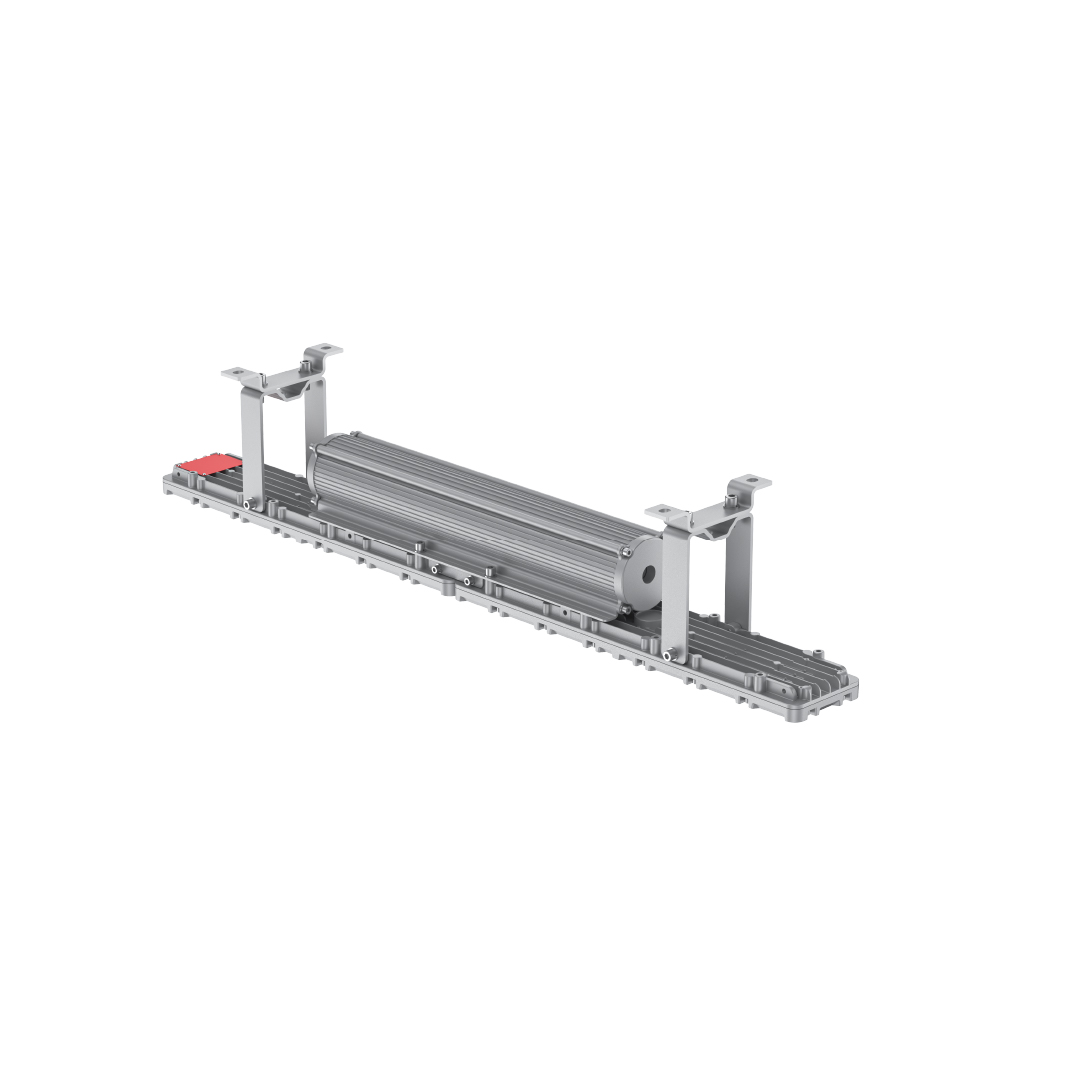

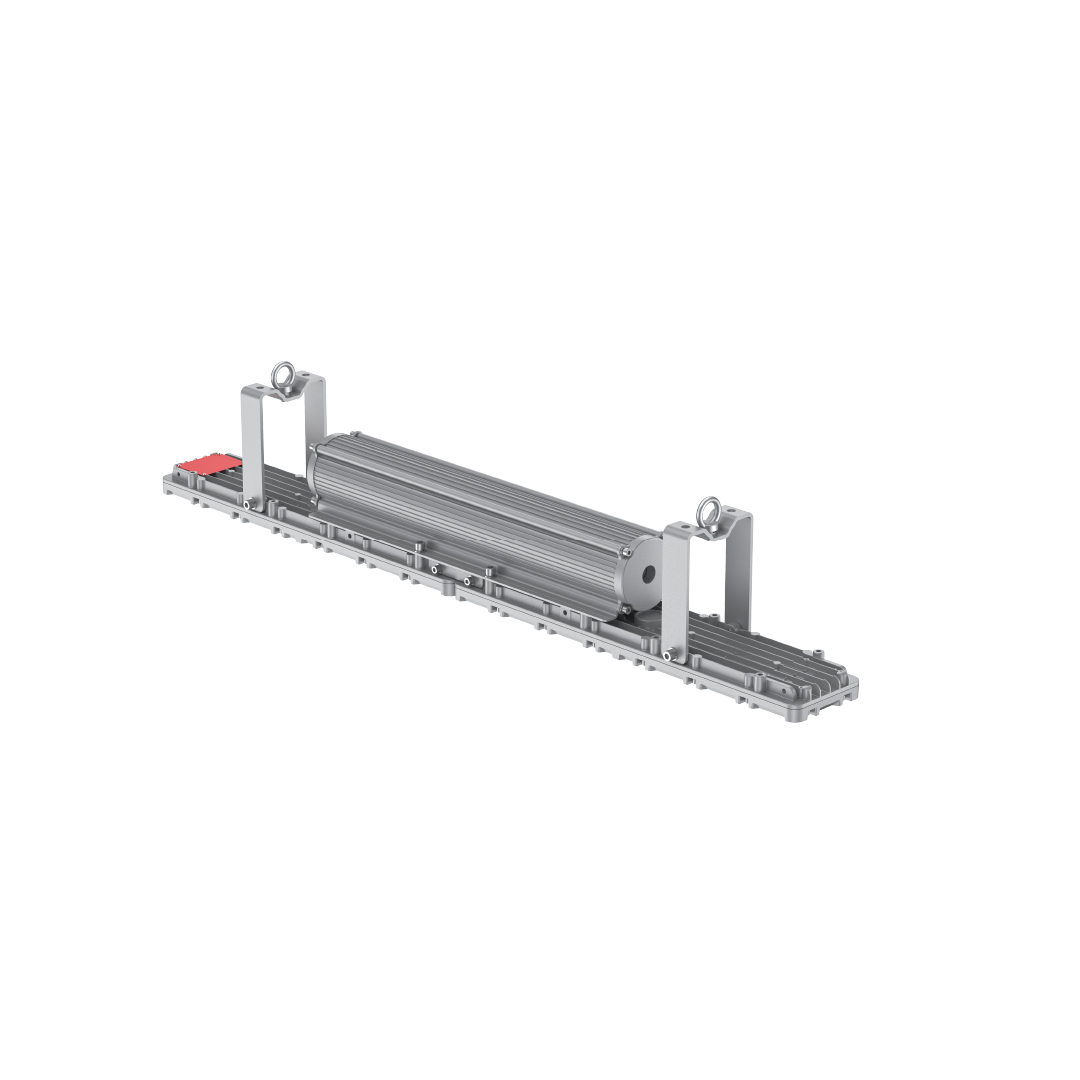

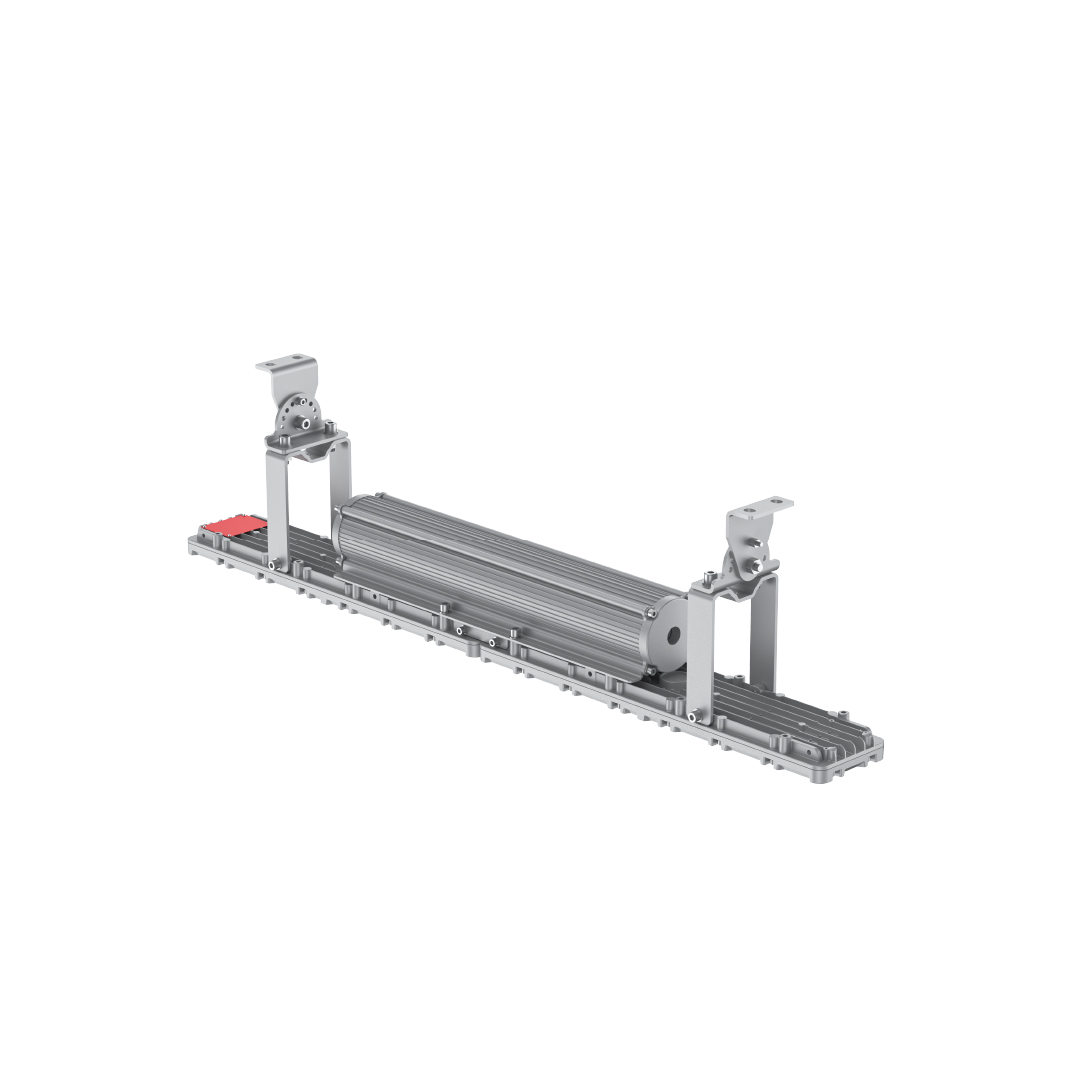

The EX711 is a high-performance linear explosion-proof luminaire engineered for hazardous locations. Constructed with a durable aluminum-alloy body and optional emergency backup, it delivers reliable illumination in demanding industrial environments. Available in two lengths with scalable wattage options, the EX711 ensures optimal performance, thermal stability, and continuous lighting even during power outages. Suitable for oil & gas, mining, chemical plants, and marine locations.
Wattage
4’: 60W / 80W / 100W(Optional)
2’: 30W / 40W / 50W (Optional)
Lumens
4,500 lm – 15,000 lm
Efficacy
150 lm/W
Color Temperature
2000K,2200K,2500K,2700K,3000K, 3500K,4000K ,4500K, 5000K, 5700K, 6500K (Optional)/ Amber
CRI
70 / 80 / 90+
Input Voltage
120-277V / 277-480V
Operating Temp
-40°F to +104°F
IP Rating
IP66
Mounting Type
Ceiling, Trunnion, Loop, Hoop Mount
Feature
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
EX711
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

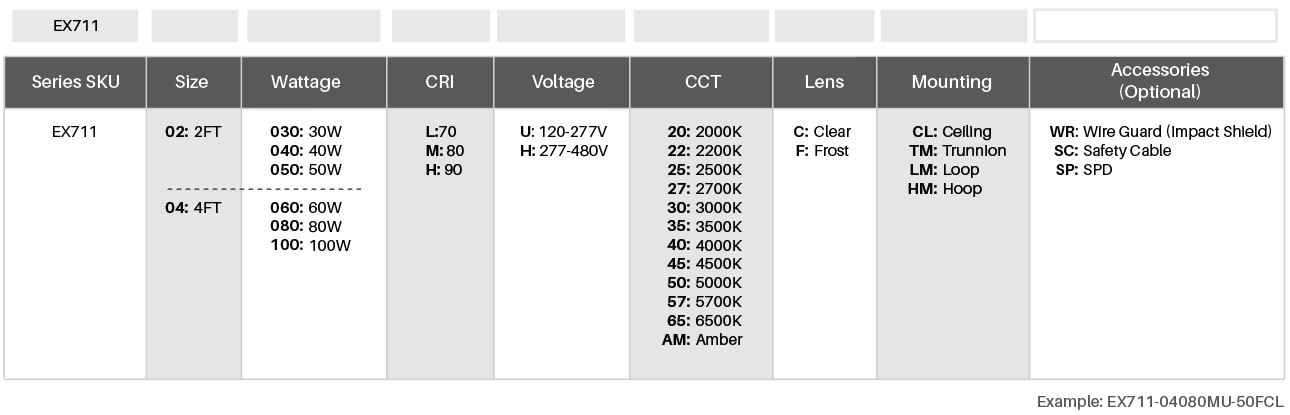

Ordering Information
