Explosion Proof
EX704
By True LED USA

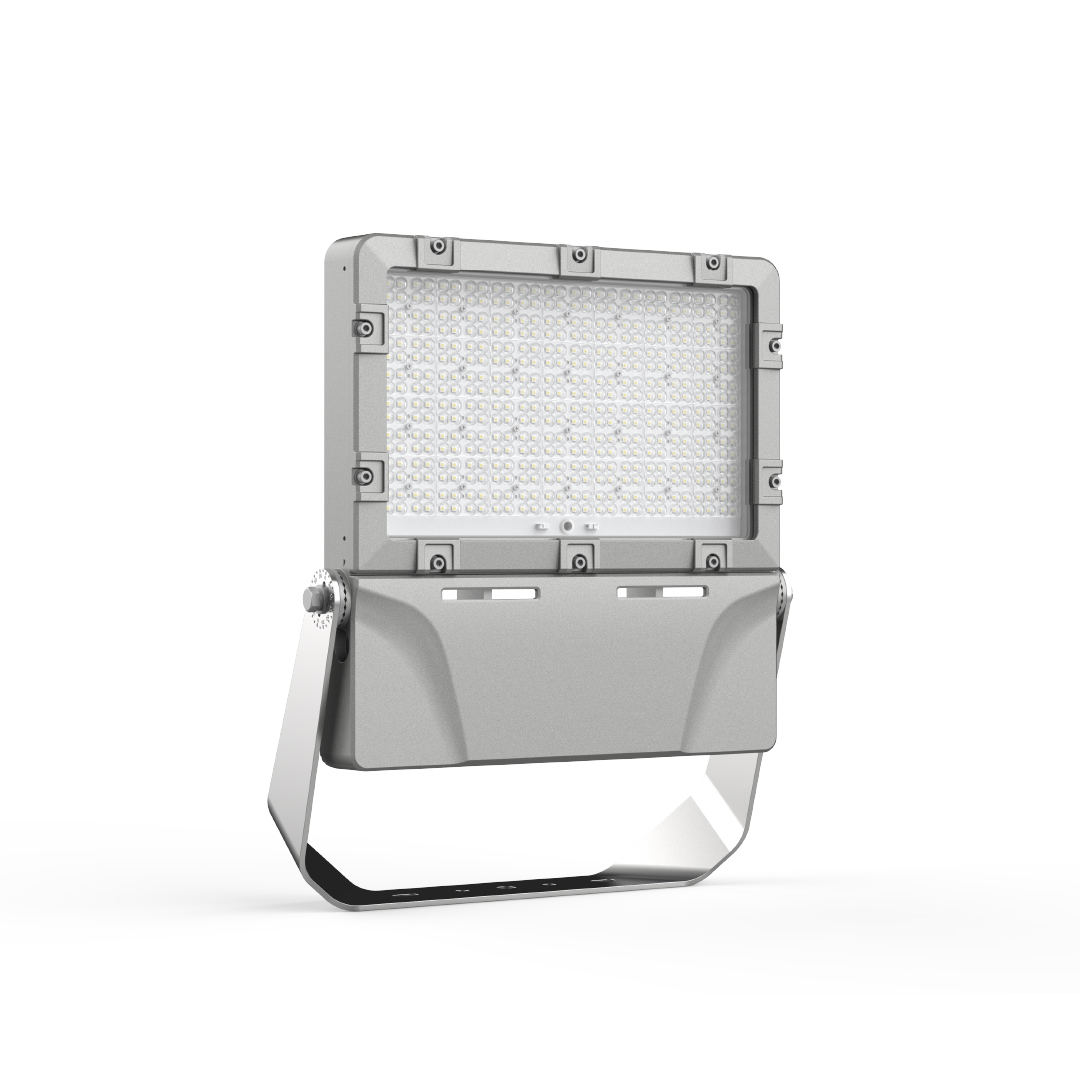

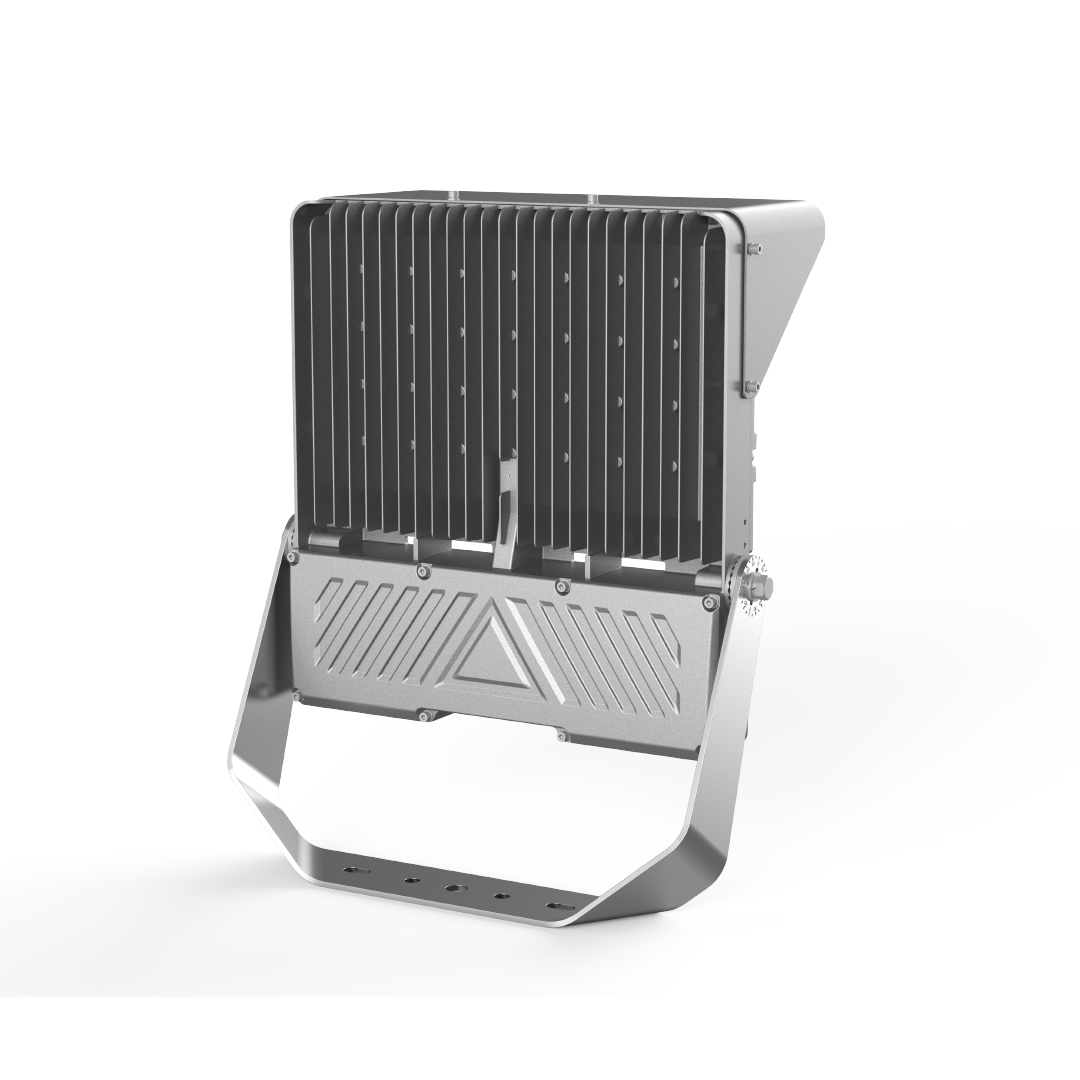

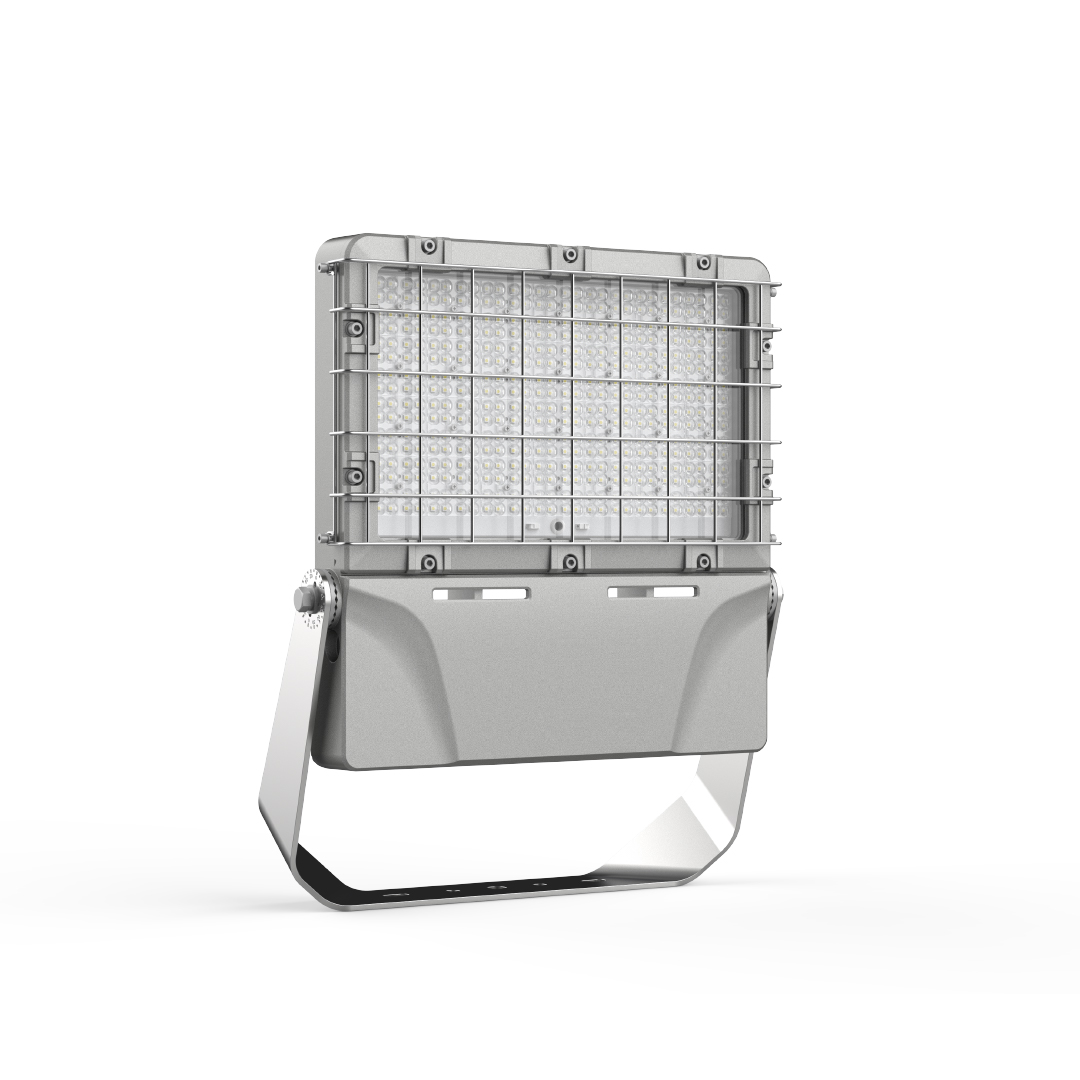

The EX704 Explosion-proof LED Luminaire is engineered for hazardous and marine environments, delivering robust performance, energy efficiency, and safety. With wattages from 150W to 240W, it provides up to 36,000 lumens with an efficacy of 150 lm/W. Constructed with low-copper aluminum alloy and corrosion-resistant coating, EX704 withstands harsh industrial conditions. Certified for Class I, II, and III hazardous locations, it features IP66 and IK08 protection, advanced heat dissipation, and multiple optical distributions.
Wattage
150W / 200W / 240W
Lumens
22,500~36,000 lm
Efficacy
~150 lm/W
Color Temperature
3000K / 4000K / 5000K (Optional)
CRI
70+ / 80+ / 90+
Input Voltage
100-277V / 277-480V
Operating Temp
-40°F to +149°F
IP Rating
IP66
Mounting Type
Bracket mounting (Slipfitter adaptor optional)
Feature
IK08, 10kV line-line & line-earth (Surge Protection)
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
EX704
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download
Ordering Information
