Explosion Proof
EX1103
By True LED USA

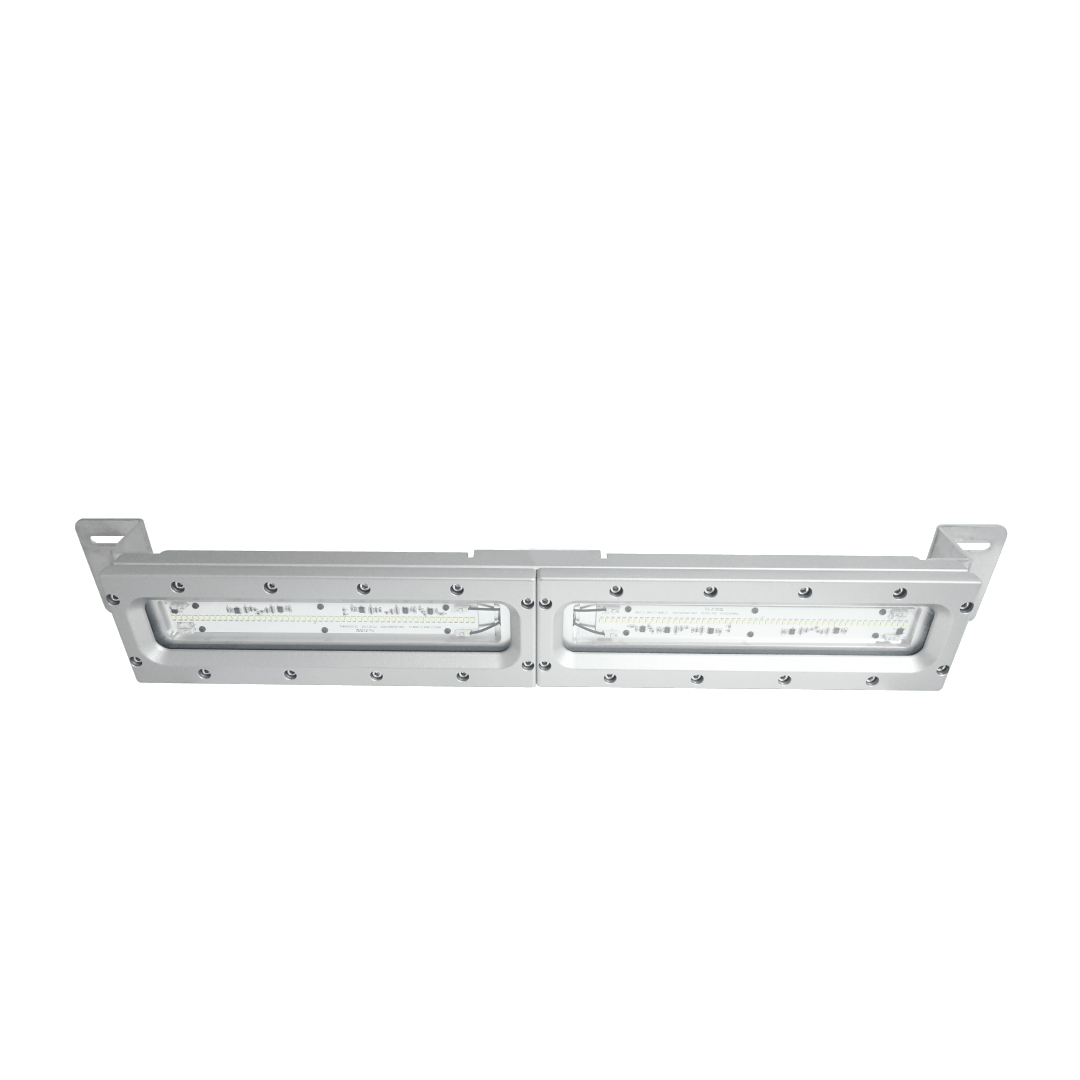

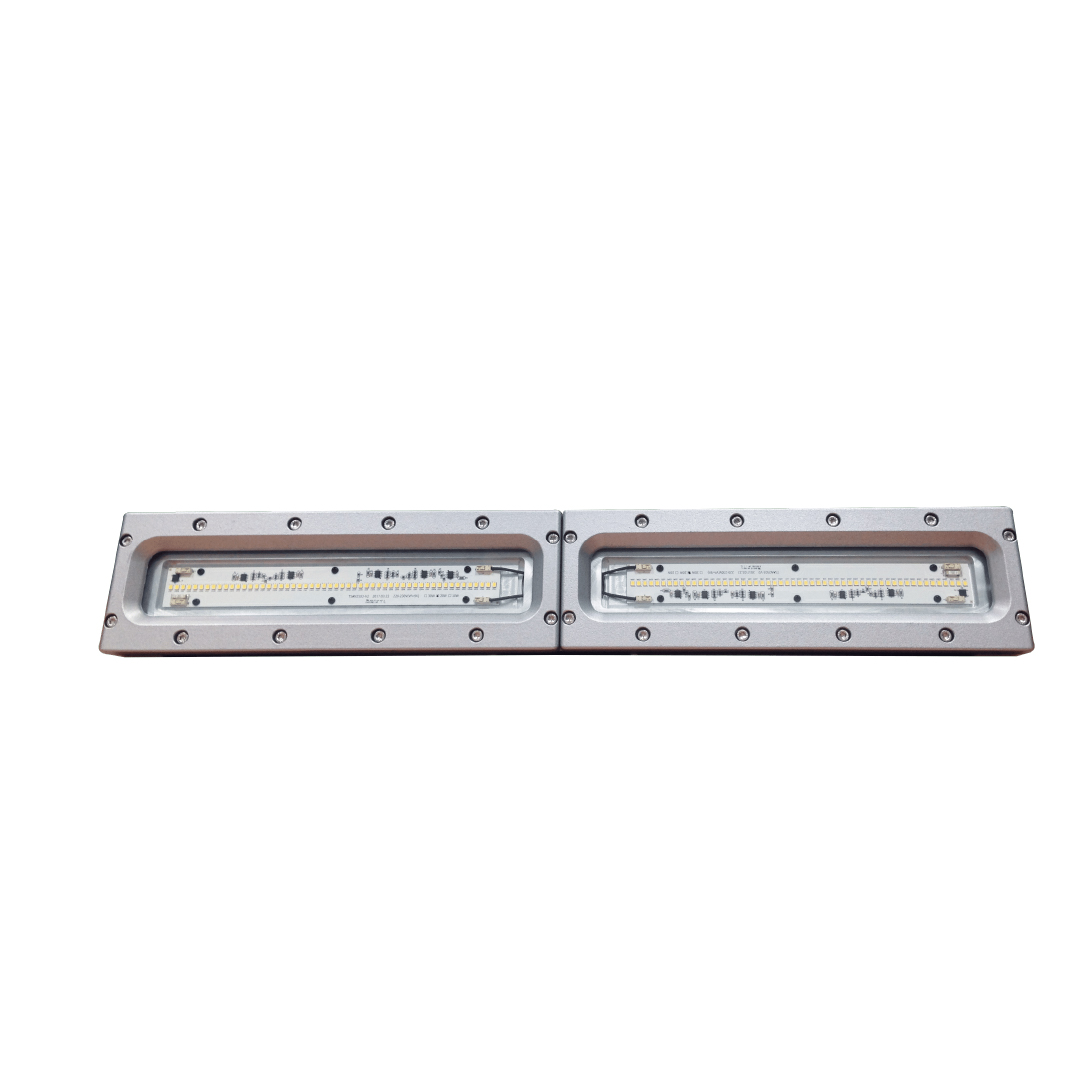

EX1103 is a hazardous location luminaire designed for Class I Division 1 and Class II Division 2 environments. Offering 40W and 60W options, it delivers up to 6000 lumens with excellent reliability. Built with aluminum alloy housing and tempered glass, it provides IP67/NEMA 6 protection and operates in extreme conditions from –40°F to +131°F. With a service life of 60,000 hours, multiple mounting options, and UL/CSA certifications, EX1103 is ideal for oil, gas, and petrochemical facilities.
Wattage
40W / 60W (Optional)
Lumens
3,600~6,000lm
Efficacy
90-100lm/W
Color Temperature
3000K/5000K (Optional)
CRI
70+(5000K) / 80+(3000K)
Input Voltage
120V / 277V (Optional)
Operating Temp
CID1 : –40°F ~ +131°F (T6); CIID2 : ~ +131 °F(T6)
IP Rating
IP 67
Mounting Type

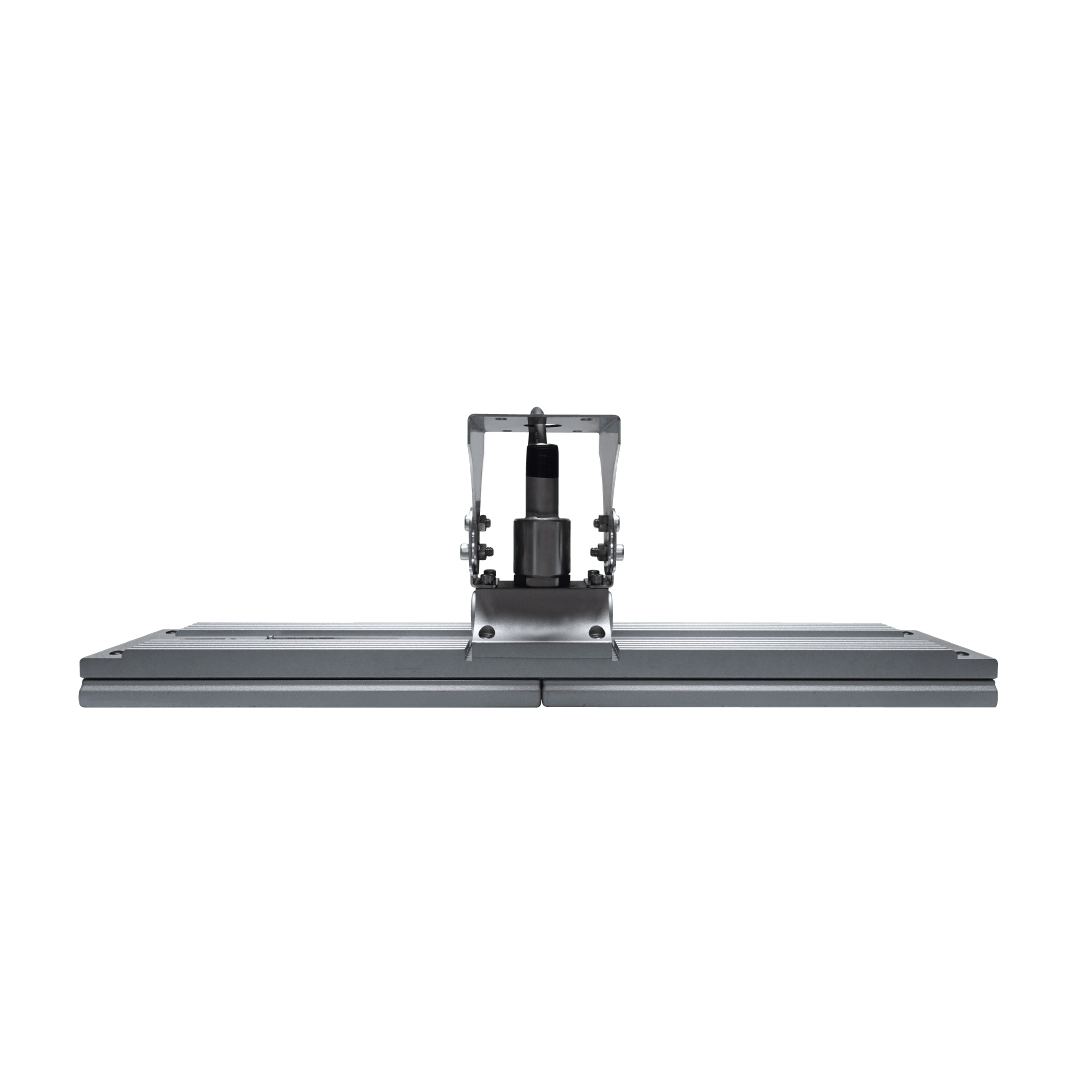

Ceiling, Wall Mount, Hanging Mount
Feature 1
Feature 2
Spec Sheet
Document Type
Description
Updated
Download
Spec Sheet
EX1103
5/5/2025
Download
Photometry (IES)
Description
Updated
Download
IES Files
5/5/2025
Download

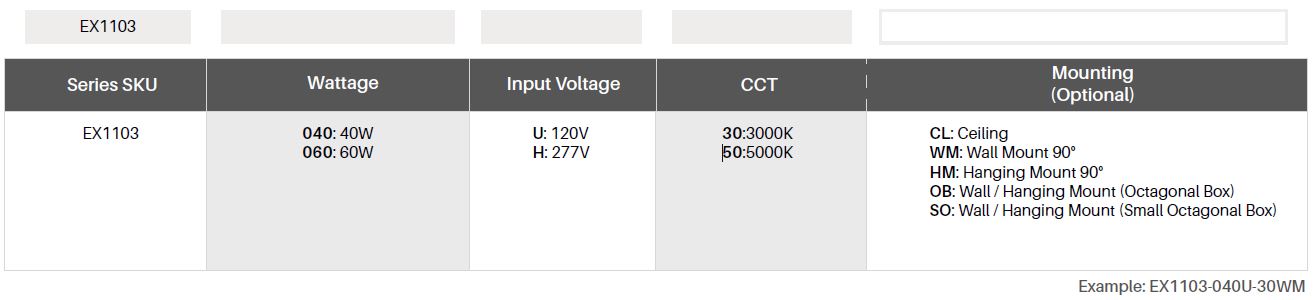

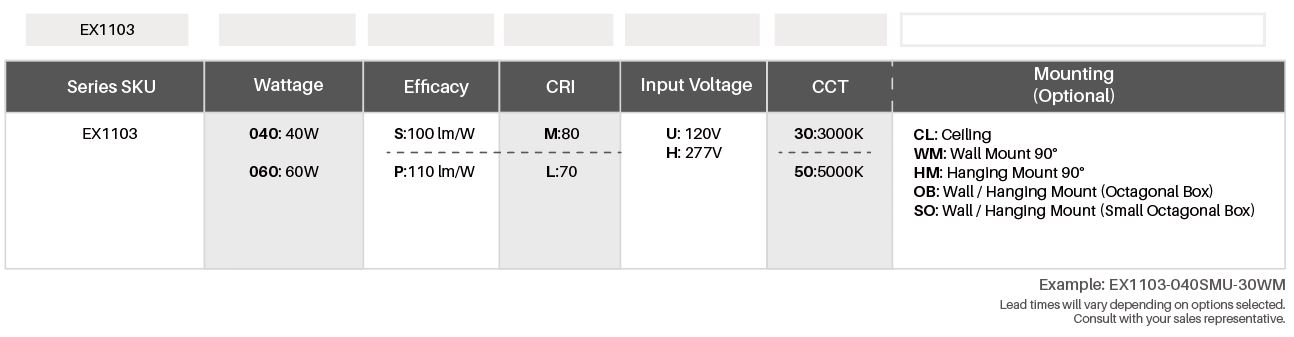

Ordering Information
